E-mail notification — The MLC 104 IP Plus can be set up to send an e-mail when
the projector has been disconnected or the projector’s lamp has been used for
a designated number of hours.
Controlling other devices
The MLC 104 Plus Series offers two methods of projector or display control:
RS-232 or infrared (IR). The MLC can learn IR signals from remote controls to
communicate with sources such as VCRs and DVD players. Users can create their
own device drivers (IR or RS-232) or go to the Extron Web site ( www.extron.com ) to
obtain device drivers.
Ext ron
CO NF IG
DISP LA Y
ML C 104 IP Plu s
VO LU ME
1
2
3
4
ON
OFF
VCR
DVD
PC
RGBHV
S-Video
Audio
Audio
Video
DVD/VCR
Combo Laptop
RS-232 or
IR Projector
control
Extron MLC 104 IP Plus
MediaLink Controller
Projector on/off control
Projector input switching
Projector volume control
Help Desk PC
Extron
SI 3CT LP
Full-range Ceiling
Speakers
BASS
LE VEL
TREB LE
MIN I PO WER AM PLIFI ER MP A 12 2
ON
OFF LIM ITE R
STE REO
DUA L MO NO
Extron
MPA 122
Mini Power Amplifier
TCP/IP
Network

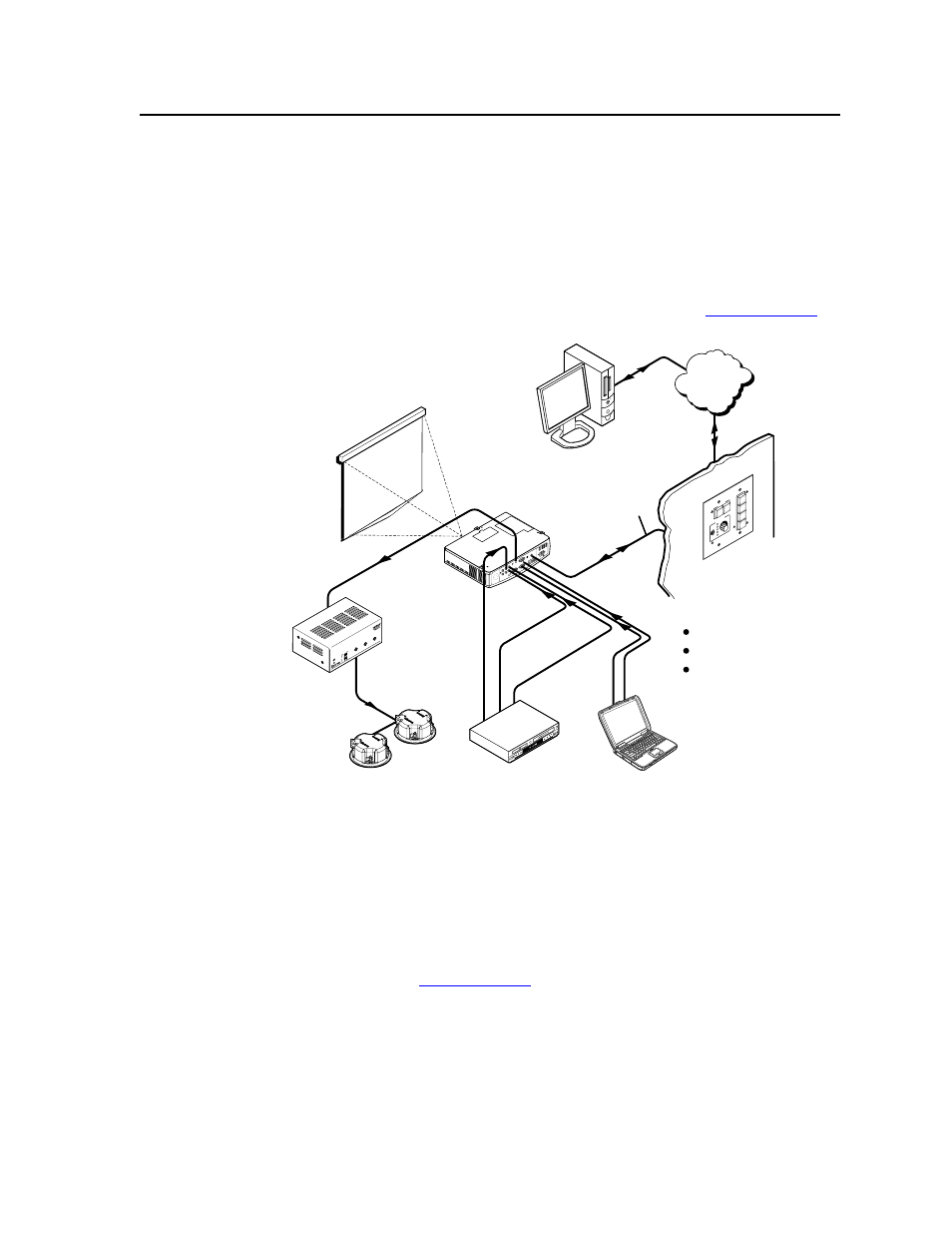

A typical application for an MLC 104 IP Plus MediaLink Controller
Projector Control
The MLC can control a projector or other display device by using IR or RS-232
control. The MLC must be configured for projector control in one of the following
ways before it will send commands to the projector:
• An IR or an RS-232 driver file can be installed from a disk, downloaded from the
Extron Web site ( www.extron.com ), or downloaded from Extron using the driver
subscription feature within Global Configurator. The driver is saved to a folder
within C:\Program Files\Extron\Driver2, and it is uploaded to the MLC via
Global Configurator.
• RS-232 command strings can be entered directly from a host computer using
Extron Global Configurator software.
• IR commands can be entered directly from an IR remote control through IR
learning and the Extron IR Learner software to create a driver that the MLC can
use. IR learning is convenient for installing new or updated commands into the
MLC in the field.
