Special Applications, cont’d
MLC 104 Plus Series • Special Applications 5-22
PRELIMINAR
Y

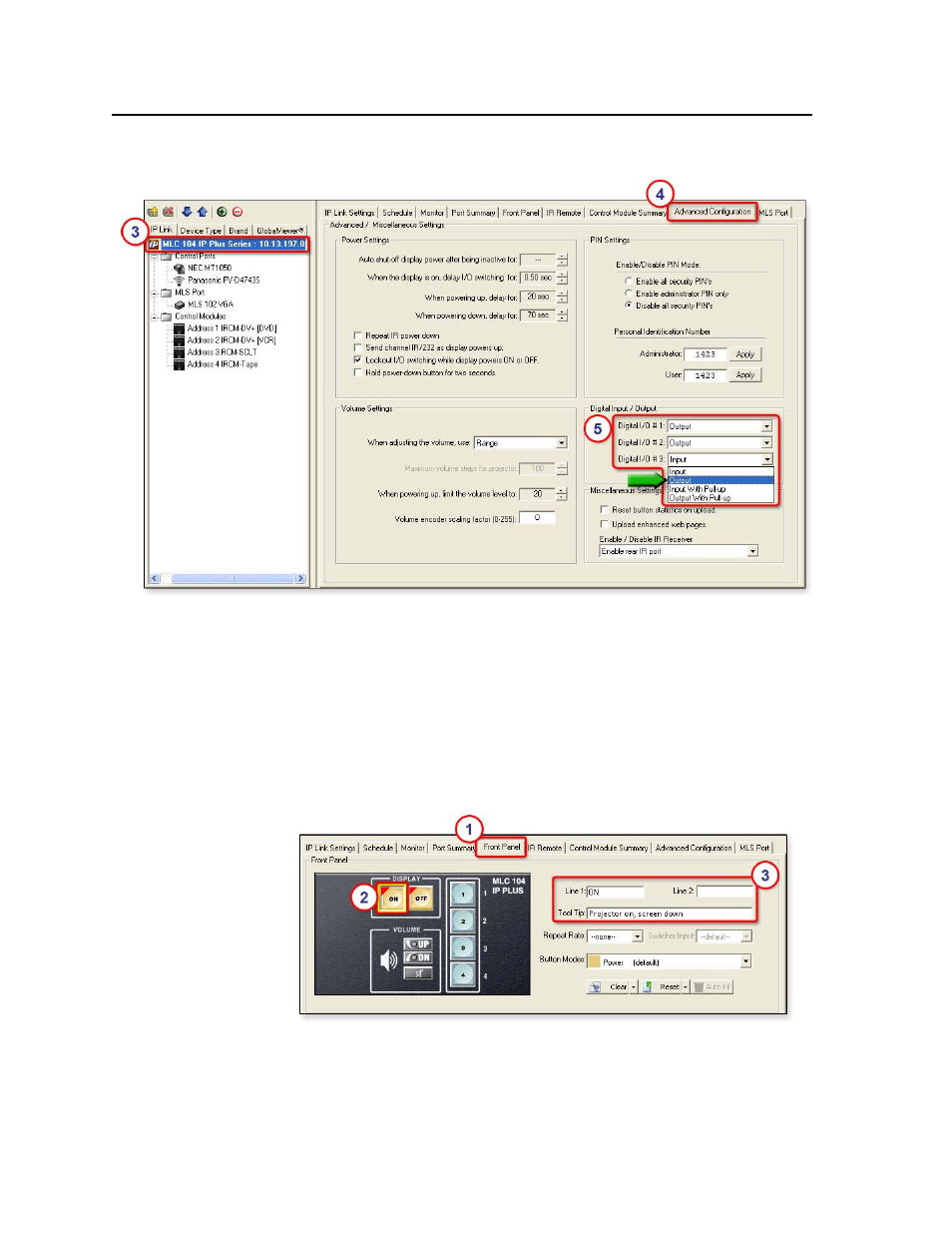

3. In the IP Link tree view window, click on the MLC to be configured.
4. Click on the Advanced Configuration tab.
5. In the Digital Input/Output area, use the drop-down menus to set each of the
three ports to Output.
Configure the MLC’s Display Power buttons to operate the digital outputs
1. Click the Front Panel tab.
2. Click on the MLC’s Display On button.
N In the example below, the red triangle in the upper left corner of this button
indicates that the button has already been configured to send the power‑on
command to the projector.
3.
Type in text for the onscreen button label and the tool tip (text that appears
when the mouse pointer hovers over that button in GlobalViewer), if desired.
