EXP Computer ThinConnect4 - Manual (Page 113)

ThinConnect4 <103>

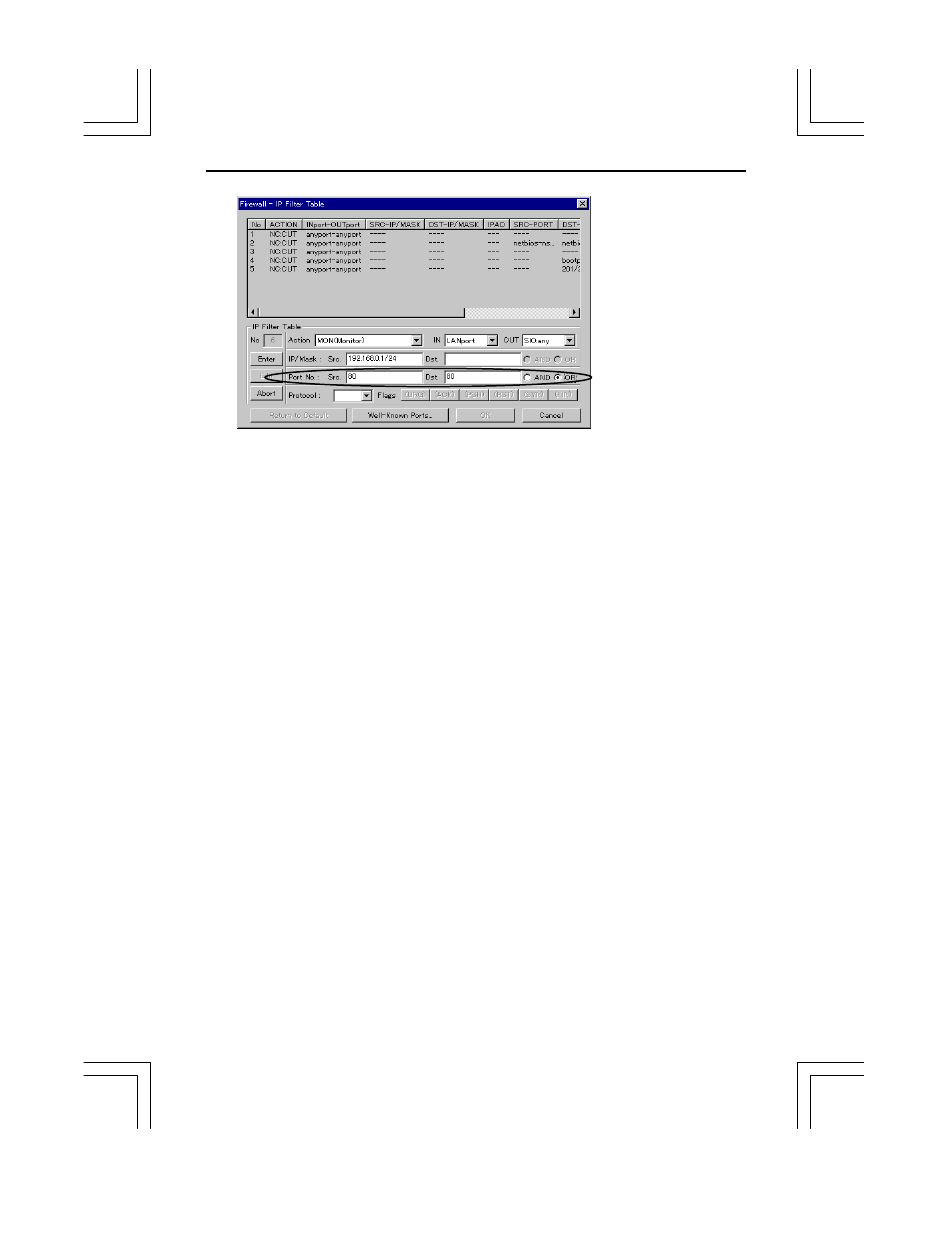

“Port No: Src.”
Select protocol port number or service from the Source and enter the “Port
No” on the field.
“Port No: Dst.”
Select protocol port number or service of the Destination and enter the
“Port No” on the field.
“Port No: AND/OR”
Active only when both “Src.” and “Dst.” are set.
• “AND”: Objected when both conditions of “Src.” and “Dst.” are met.
• “OR”: Objected when either one of conditions of “Src.” and “Dst.” is met.
Note1: For well-known port, it is possible to enter it with protocol or service
name. Just click the “Well-known Ports” button of ThinConnect4 and refer to
“Well-known Ports: Keyword Table”
Note2: “Src.” and “Dst.” field can set a range by inserting “ / ” between the
source port number and the destination port number.
Example: Objected area, from (201/208) = 201(AT-RMTP) to 208(AT-8).
