Description
Page 10 Operating Instructions for Powador 3200-6600_EN
3.2.6 Mechanical components
3.2.6.1 DC isolator switch
There is one DC isolator switch inside the inverter housing. The DC isolator switch is used to disconnect the inverter
from the PV generator in order to carry out service.
Disconnecting the inverter from the PV generator
" Switch the DC isolator switches from 1 (ON) to 0 (OFF).
Connecting the inverter to the PV generator
" Switch the DC isolator switches from 0 (OFF) to 1 (ON).

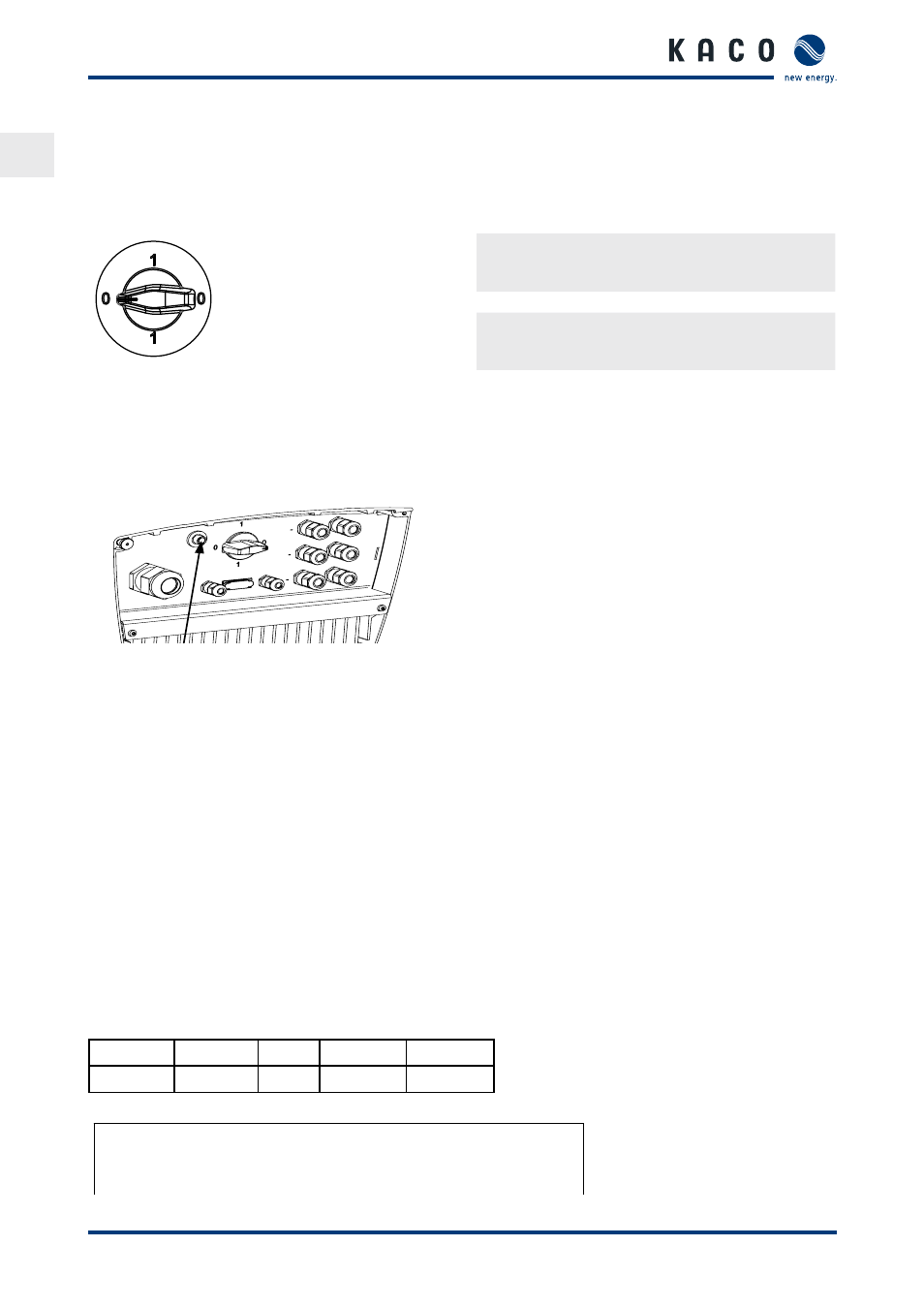

Figure 5: DC isolator switch
3.2.6.2 Night start button
The unit switches off in the evening as nightfall approaches. At this point, nothing is shown on the display. In order
to retrieve the values from the current day (daily yield, daily hours of operation and max. feed-in power) after the
display switches off, the unit can also be activated during the night by pressing the night start-up button on the
underside of the inverter.
Figure 6: Night-start button on the inverter
3.2.7 Interfaces
The inverter has the following interfaces for communication and remote monitoring:
• RS232 port
• RS485 interface
• S0 interface
• Digital input
You configure the interfaces in the Settings menu (see chapter 8.3 auf Seite 34).
3.2.7.1 RS232 port
Use this monitoring variant if you wish to manage operating data directly on a computer. The data can be processed
with standard spreadsheet programs.
The inverter and computer are connected with a serial 1:1 interface cable.
The cable length should not exceed 20 metres.
The data from the inverter is sent unidirectionally as pure ASCII text via the serial interface. The data is not checked
for errors.
The RS232 interface has the following parameters:
Baud rate Data bits Parity Stop bits Protocol
9600 baud 8 None 1 None
The table below shows an example of a few lines transferred via the RS232 interface
Spalte 1 2 3 4 5 6 7 8 9 10
00.00.0000 00:05:30 4 363.8 0.37 134 226.1 0.53 103 23
00.00.0000 00:05:40 4 366.0 0.39 142 226.1 0.53 112 23
00.00.0000 00:05:50 4 359.5 0.41 147 226.1 0.53 116 23
00.00.0000 00:06:00 4 369.8 0.42 155 226.1 0.58 118 23
00.00.0000 00:06:10 4 377.0 0.43 162 226.1 0.63 131 23
00.00.0000 00:06:20 4 373.6 0.45 168 226.1 0.63 133 23
00.00.0000 00:06:30 4 364.0 0.48 174 226.1 0.68 146 23
00.00.0000 00:06:40 4 364.3 0.49 178 226.1 0.68 146 23
Table 1: Excerpt from the RS232 interface transmission log
