Ethernet interface CNC PILOT 620
Network configuration settings
 Control name - Computer name of the control
 DHCP (Dynamic Host Configuration Protocol)
 OFF: The other network settings have to be configured manually.
Static IP address.
 ON: The network settings are automatically configured by a DHCP
server.
 Settings for DHCP OFF
 IP address
 Subnet mask
 Broadcast
 Gateway
Network connection settings (SMB)
 Protocol
 SMB – Windows network
 Host IP address/host name – Computer name or IP address of the
target computer.
 Host release – Share name of the target computer. (Sharename)
 User name – For logging on to the target computer.
 Workgroup/Domain – Name of the workgroup/domain.
 Password – For logging on to the target computer.
Network connection settings (NFS)
 Protocol
 NFS
 Host IP address – IP address of the target computer.
 Host release – Share name of the target computer. (Sharename)
 rsize -
 wsize -
 time0 -
 soft -
Select project folder: The CNC PILOT reads and writes all the data to/
from a predefined project folder. Each project folder mirrors the folder
structure on the control. Select the project folder you want to connect
to. If no project folder exists in the target path, the folder is created
when connecting.

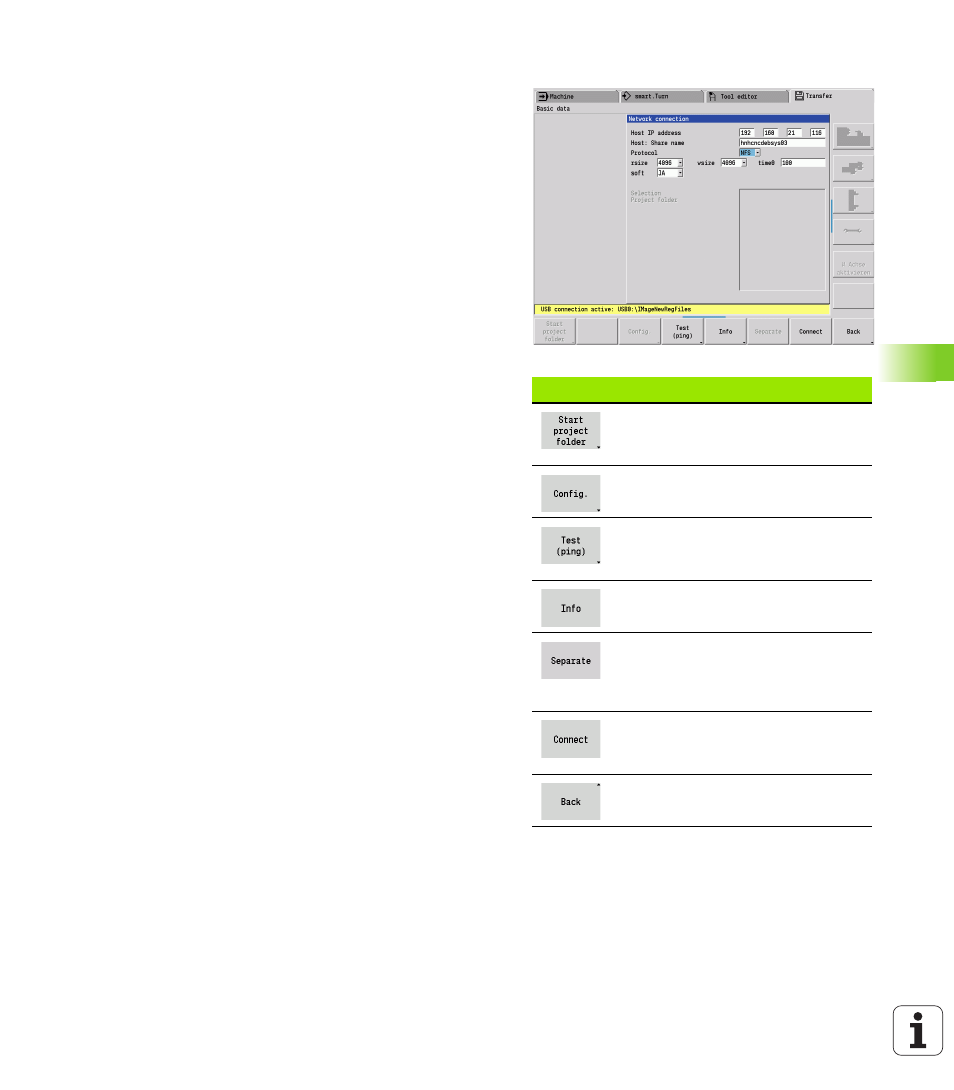

Network configuration soft keys
Creates a folder of the specified
name in the target path when a
connection is established.
Opens the Network configuration
dialog box.
Opens the Check network
connection
dialog box and pings the
specified target.
Displays all the network information
in a list box.
Terminates an existing network
connection. When a USB storage
device is active, the control
switches to the USB connection.
Establishes the connection and
opens the last project folder you
selected.
Returns to the Transfer soft-key
menu.
