408 ICP programming
6.9 Cont
our elements on f
a
ce
Line at angle on face
Select the line direction.
Enter the line dimensions and define the transition to the next
element.
In smart.Turn, ICP generates a G101.

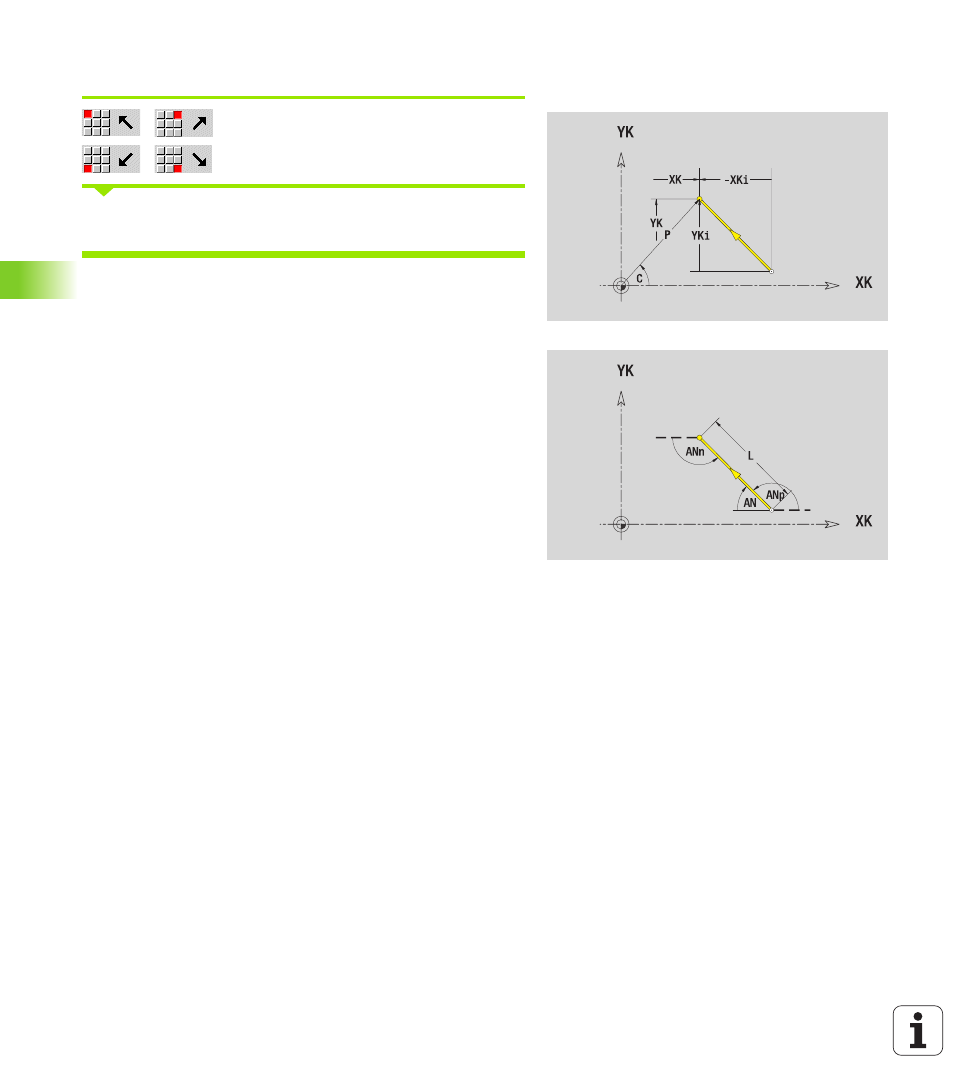

Parameters
XK, YK
Cartesian target point
XKi, YKi Incremental target point (distance from starting point to
target point)
C Polar target point (angle)
P Polar target point
AN Angle to XK axis (for direction of angle, see help graphic)
L Length of line
ANn Angle to the subsequent element
ANp Angle to the previous element
F: See machining attributes on page 373
