HEIDENHAIN CNC PILOT 620/640

393

6.7 Defining the w

o

rk

piece blank

6.7

Defining the workpiece blank

In smart.Turn, the standard forms "bar" and "tube" are described with
a G function.

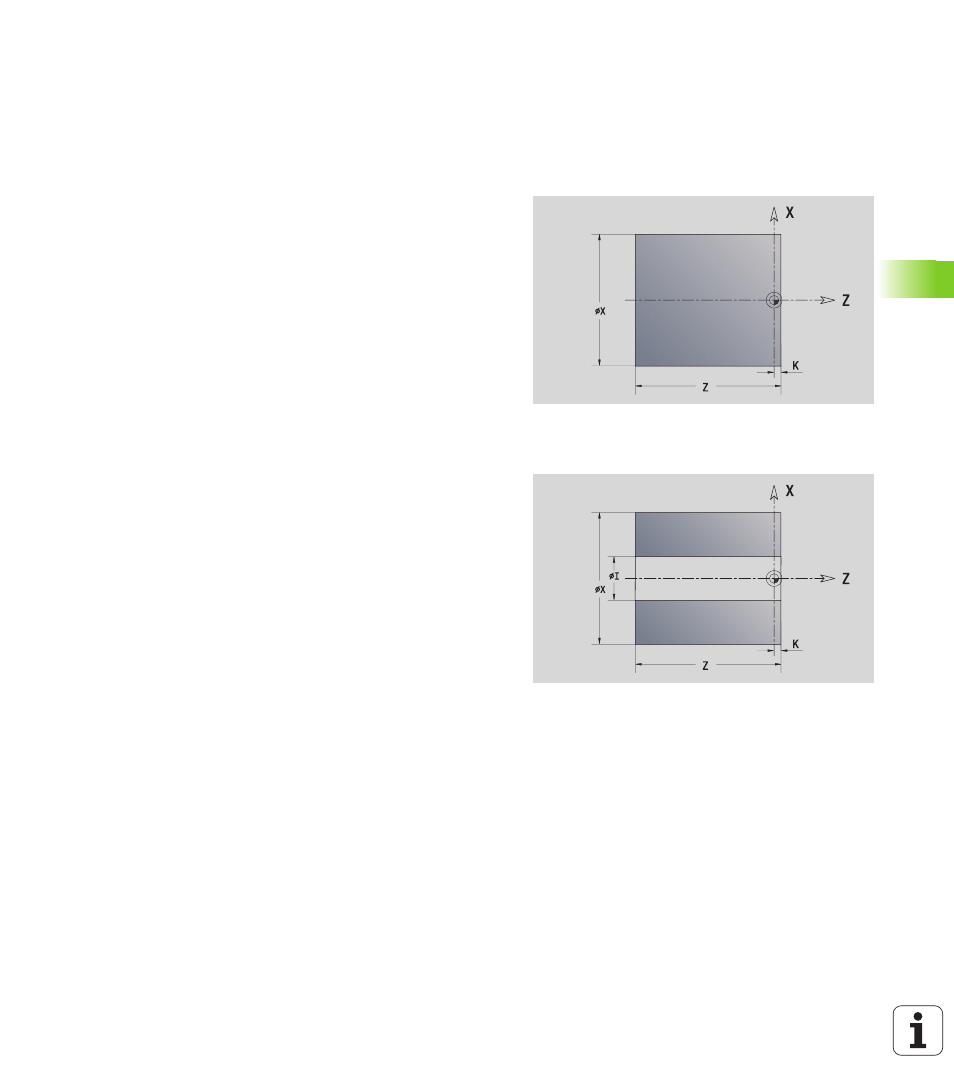

"Bar" blank

The function describes a cylinder.

ICP generates in smart.Turn a G20 in the BLANK section.

"Tube" blank

The function describes a hollow cylinder.

ICP generates in smart.Turn a G20 in the BLANK section.

Parameters
X

Cylinder diameter

Z

Length of the blank

K

Right edge (distance between workpiece zero point and right
edge)

Parameters
X

Diameter of hollow cylinder

Z

Length of the blank

K

Right edge (distance between workpiece zero point and right
edge)

I

Inside diameter
