Countersink, 3 t ool data – HEIDENHAIN SW 688945-03 User Manual
Page 499
HEIDENHAIN CNC PILOT 620/640
499
7.
3 T
ool data
Countersink
Select "New tool."
Select special tools.
Select special drilling tools.
Select counterbore.

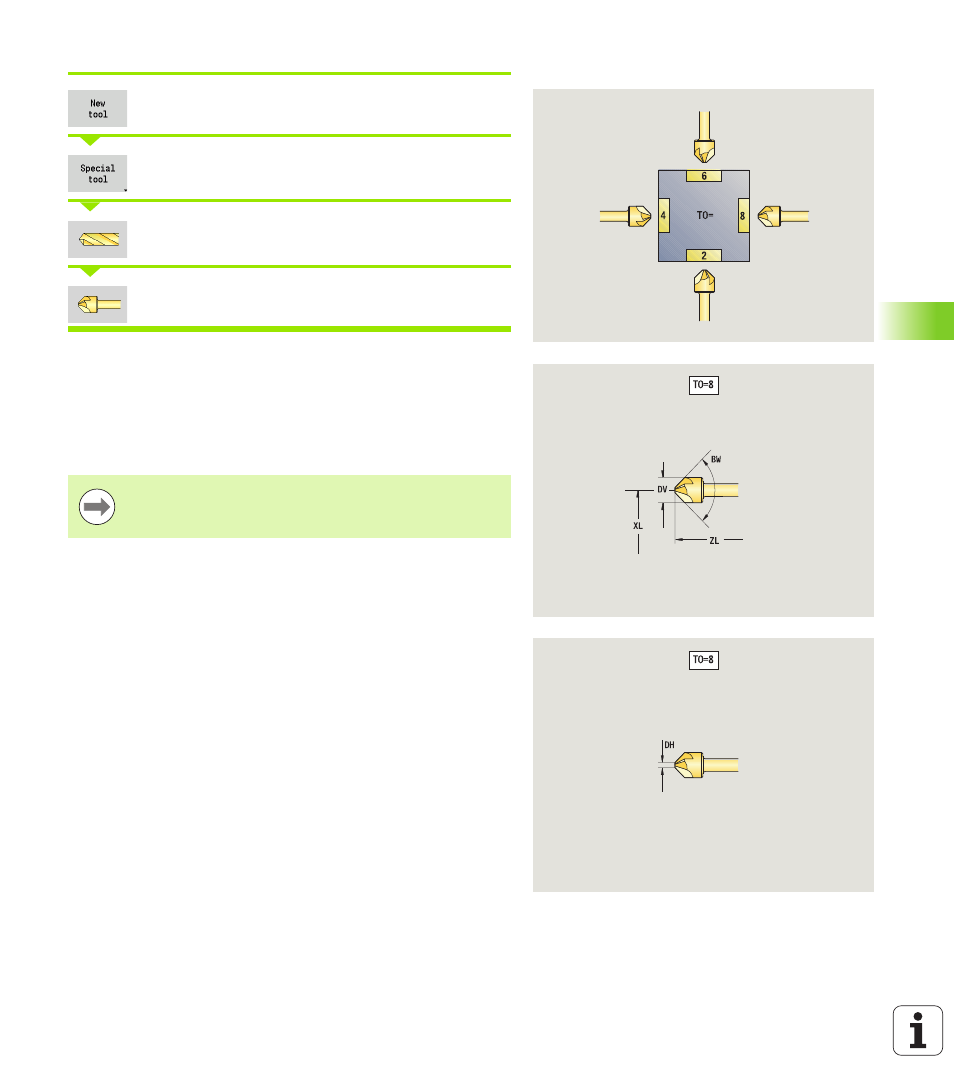

The help graphics illustrate the dimensions of the tools.
Special parameters for countersinks
DV
Hole diameter
DH
Stud diameter
BW
Drill angle
For further tool parameters, see page 489.
For drilling operations with constant cutting speed, the
drilling diameter (DV)
is used to calculate the spindle
speed.
