368 Graphic simulation
5.6 Time calculation
5.6 Time calculation

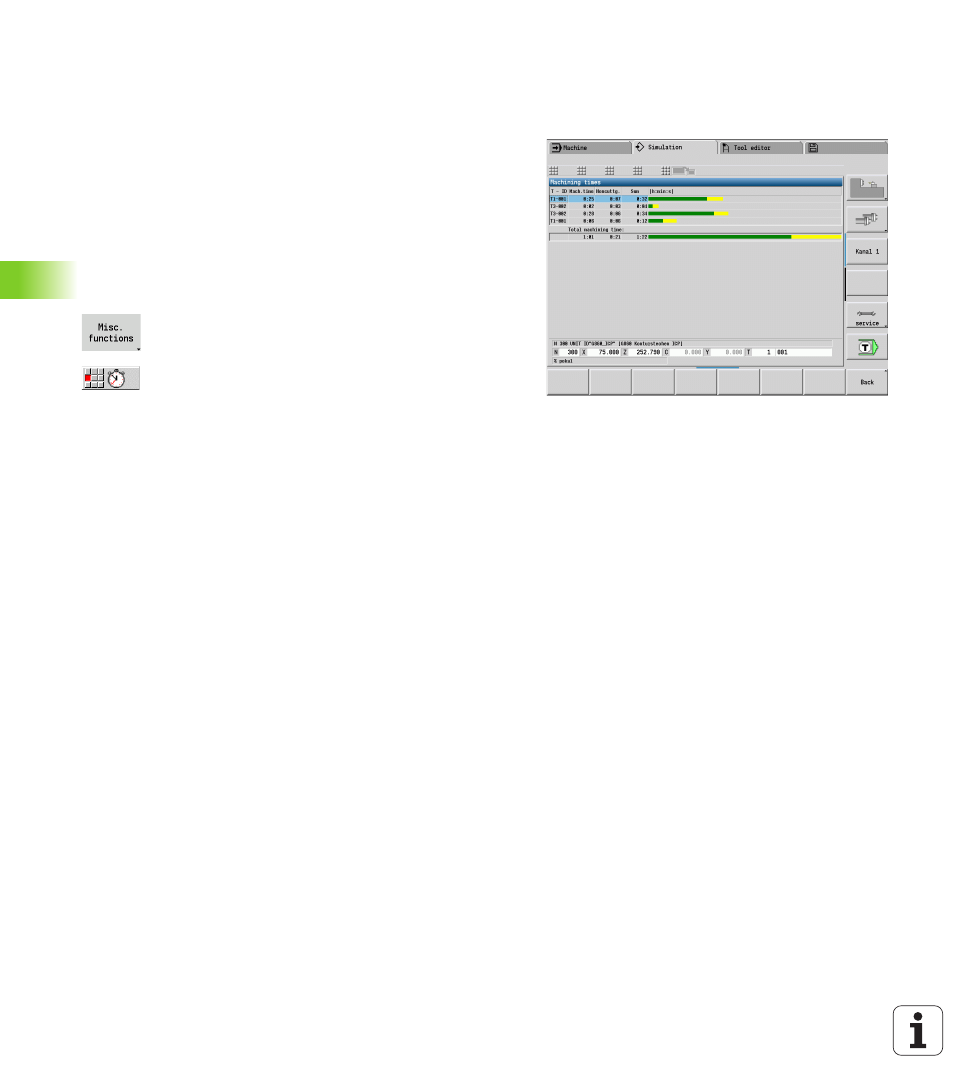

Showing the machining times
During simulation, the machining and idle-machine times are
calculated. The machining times, idle times and total times are shown
in the "Time calculation" table (green: machining times; yellow: idle
times). If you are working with cycle programs, each cycle is shown in
a separate line. In DIN programs, each line represents the use of a
new tool (for each tool call with T).
If there are more table entries than fit on a screen page, you can call
further time data with the cursor keys and PG UP/PG DN.
Calling the machining times:
 Switch the menu bar to "Miscellaneous functions."
 Call the time calculation.
