Area B - Signal Strength & System Setup Display

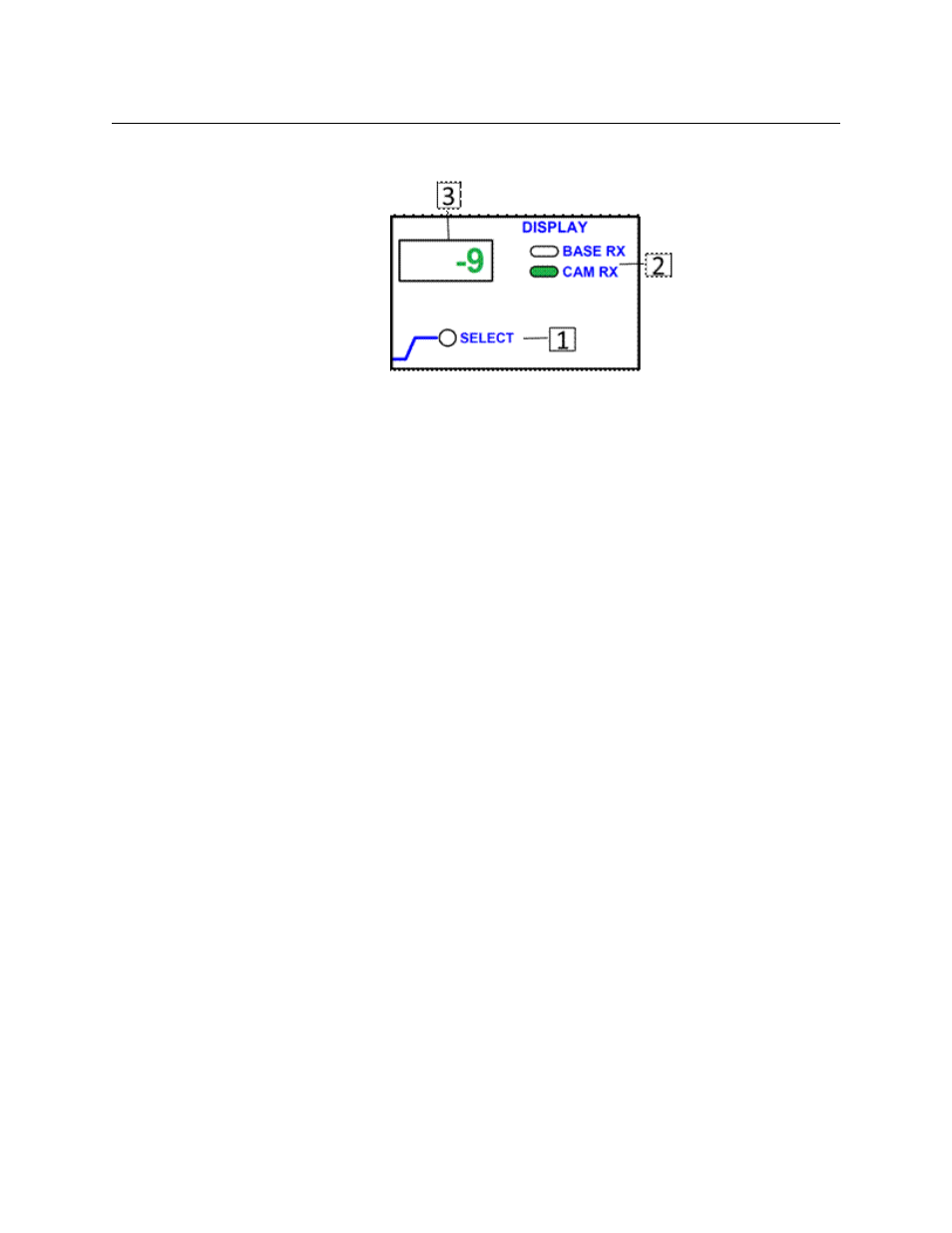

Fig. 4-4: Signal Strength & System Setup Display
• 1: SELECT: selects between three modes of operation. When power is turned on, the
unit defaults to BASE RX display mode
• BASE RX: indicates display mode is Optical Link signal strength received at Base
Station from Camera Unit
• CAM RX: indicates display mode is Optical Link signal strength received at Camera
from Base Station
• DIAGNOSTIC: indicated by Digital Display showing various alphanumeric readouts
(see
The T-POV Base Station Digital Display
Pushingand holding the SELECT button will enter diagnostics, while a quick push will
return to the base station display. Only base station diagnostics appear on the base
station; you must be at the camera unit for camera unit diagnostics.
The ALARM status (see
Area C - Power/Status Indicators and Power Switch
will light Amber if there is a problem with the Camera Unit.
• 2: DISPLAY: indicates which unit Optical Link level is being displayed. Neither LED is lit
when the unit is in diagnostics mode.
• 3: Digital Display: indicates Optical Link signal strength in dBm units. Also diagnostic
information when Base Station is in diagnostics modes.
For additional information on both measuring optical link strength and T-POV
diagnostics, see
A Brief Guide to Measurement of Fiber Optic Signal Strength
