JEP-100 — Installation and Operating Manual 65
Operation

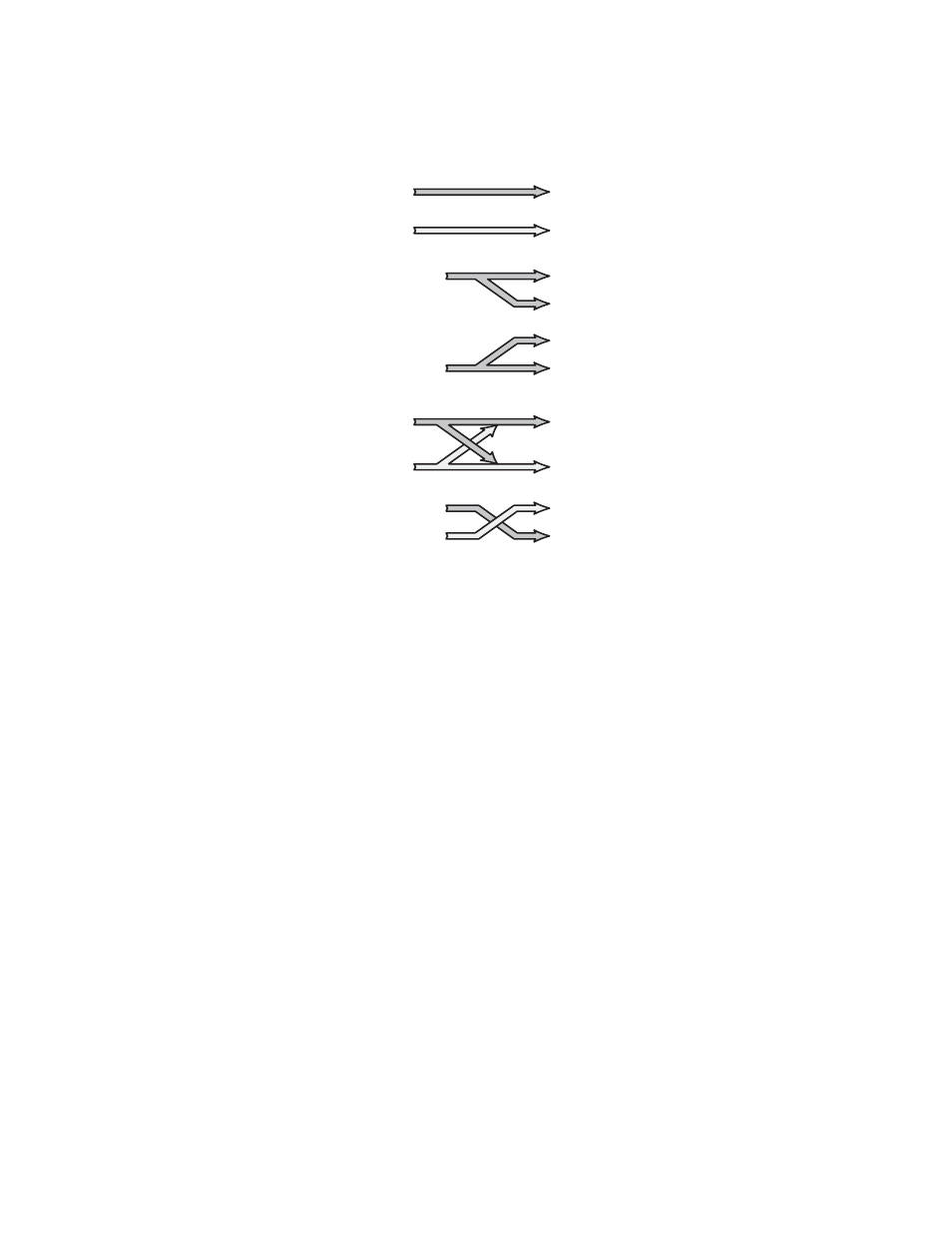

Figure 25. Audio Modes
8. Press TAKE.
9. The last selected Audio mode will remain in effect until explicitly
changed by the operator.
DspAMod. - Display Audio Mode (Special Stereo Switching)
This mode provides a method of checking the Audio mode that is presently
in effect.
1. Press MENU.
2. Use UP/DOWN to display "DspAMod?" meaning that this is the mode
that will be selected if TAKE is pressed.
3. Press TAKE.
The Preset window will display "Pair 1," referring to the first two audio
levels listed in the Jupiter CP Level Set; e.g., Left and Right.
4. If this is the desired pair, press TAKE. If not, use UP/DOWN to select
the appropriate audio pair, and then press TAKE.
The current Audio mode for the selected pair will be shown.
5. Press CLEAR to exit.
Left signal on Left channel
Right signal on Right channel
“Normal” =
“Left” =
Left signal on Left channel
Right signal on Right channel
Right signal on Left channel
Right signal on Left channel
“Right” =
Left + Right signals on Left channel
Left + Right signals on Right channel
“Mix” =
“Reverse” =
Left signal on Right channel
Left signal on Right channel 8536_26
