18 JEP-100 — Installation and Operating Manual
Section 1 — JEP-100 Control Panel
LAN Only System
In this arrangement the JEP is operated in Ethernet mode, where the LAN
connection is used both for operation and for software upgrade purposes.
See Figure 2.
Note The LAN must be capable of 100 Mb operation.
Note Each Ethernet segment (hub to panel) has a 100 meter limit.

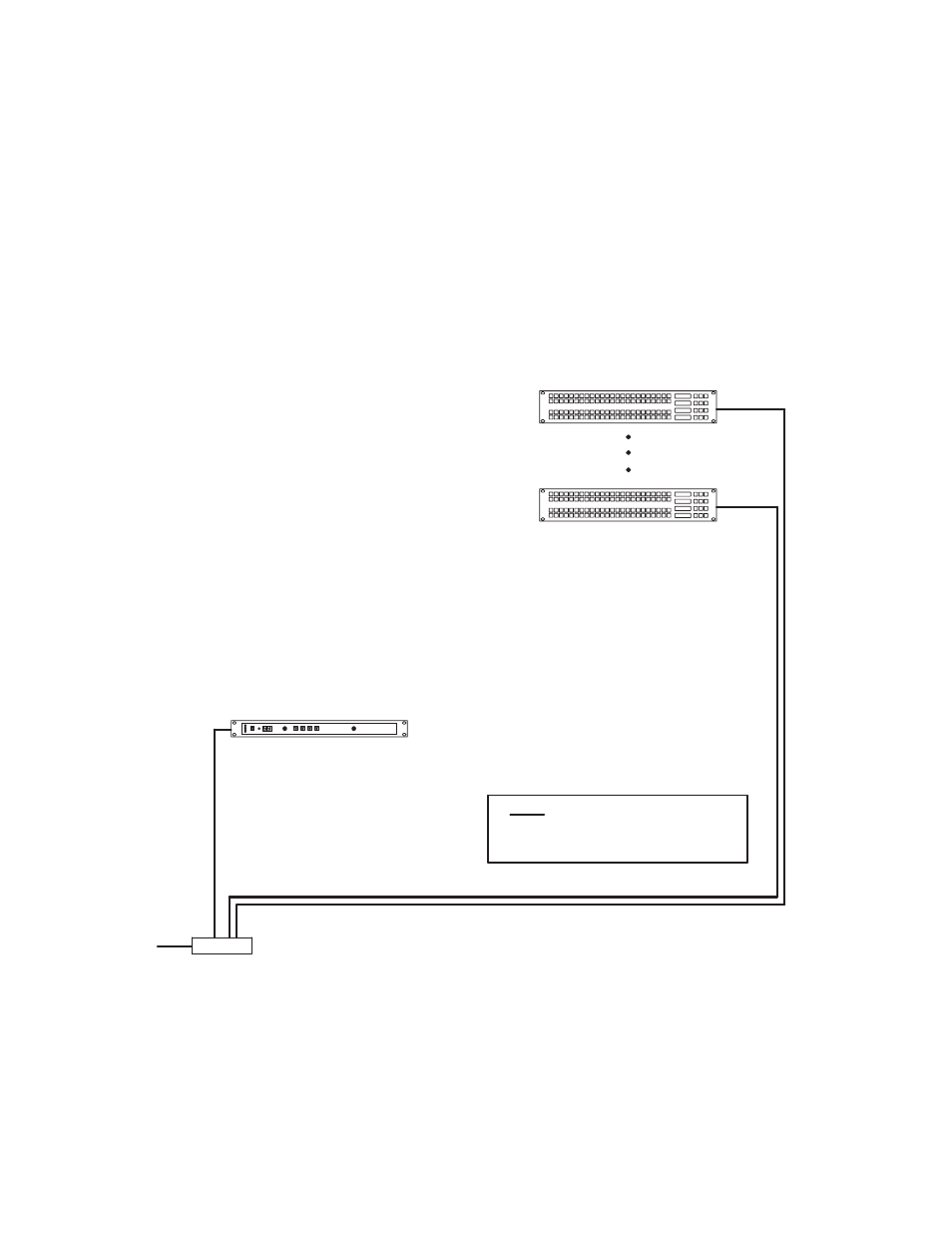

Figure 2. LAN only system connections.
LAN (Cat 5 Ethernet) cable.
Max. recommended length per
segment = 100 meters (329 ft)
CM-4000
System
Controller
100baseT Jupiter LAN
to Jupiter
File Server
IP switch
64 LAN-operated
JEP-100s per CM
maximum
8536_08
