JEP-100 — Installation and Operating Manual 49
Operation
Source Selection (All Levels Take)

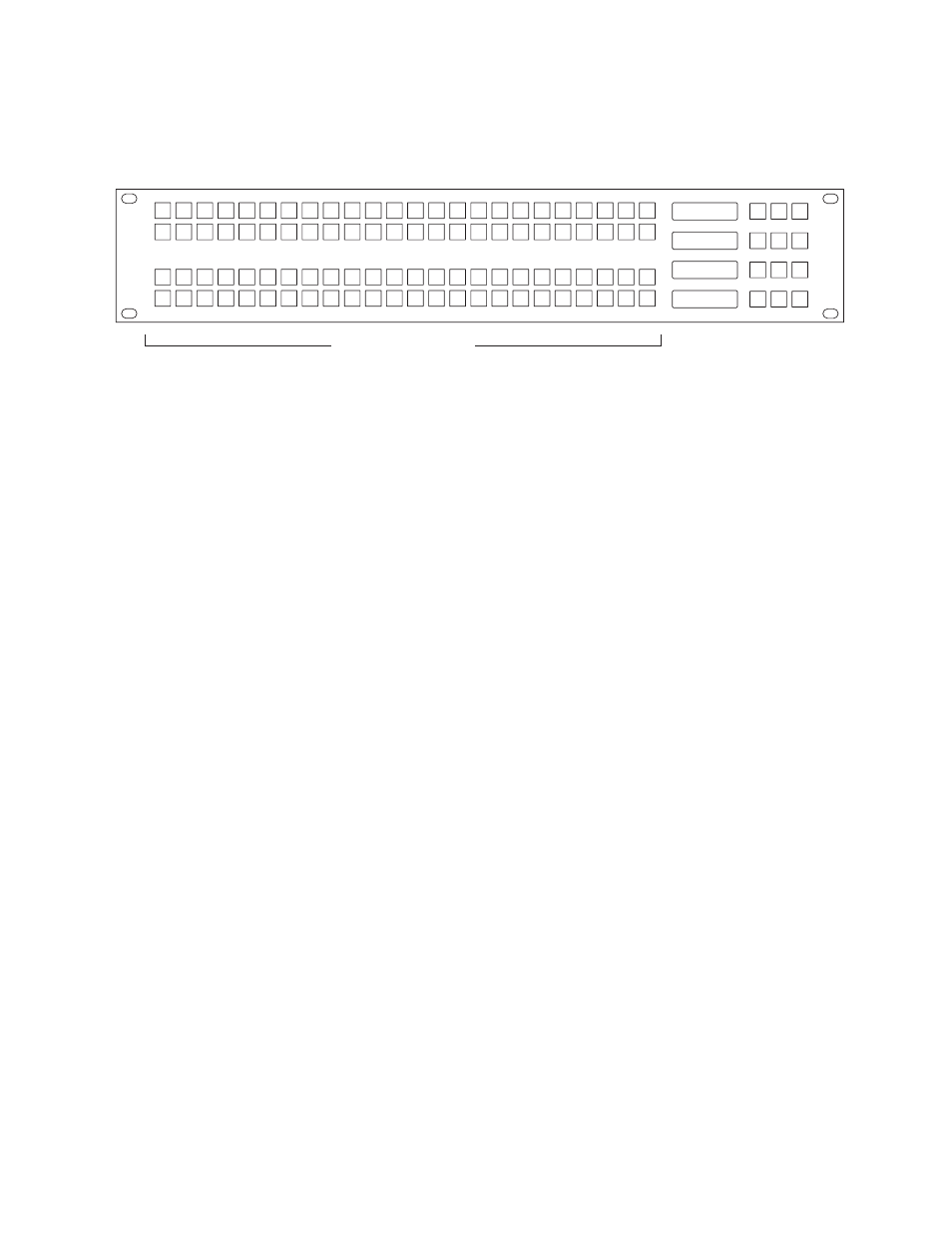

Figure 19.
1. The PRESET and LEVEL buttons should be OFF.
2. Select the desired input:
–Press one of the button-per-source (BPS) keys on the left side of the
panel (which immediately completes the switch), or
–When the SOURCE button is ON, the UP/DOWN buttons can be
used to find a source in the Preset window. Press TAKE to complete
the switch.
The newly switched source will be shown in the Status window.
If a BPS button was used to select the source (or if an BPS button cor
responds to the selected source) the button will illuminate. However,
the button will not illuminate if the first level assigned to the panel on
the Level set table has been set to "No" switching. Nor will it illuminate
unless all levels assigned to the button are switched.
BPS button programming
The BPS button assignments are based on the entries to the CP Input table
(see
page 45 ), but these assignments can be changed using the panel itself
(see page 52 ).
It is also possible to assign these buttons to a destination (see page 54 ) or to
levels (see page 55 ).
Destination
Status
Preset
Level
8536_07
Button-per-source keys
