JEP-100 — Installation and Operating Manual 47
Operation
Operation

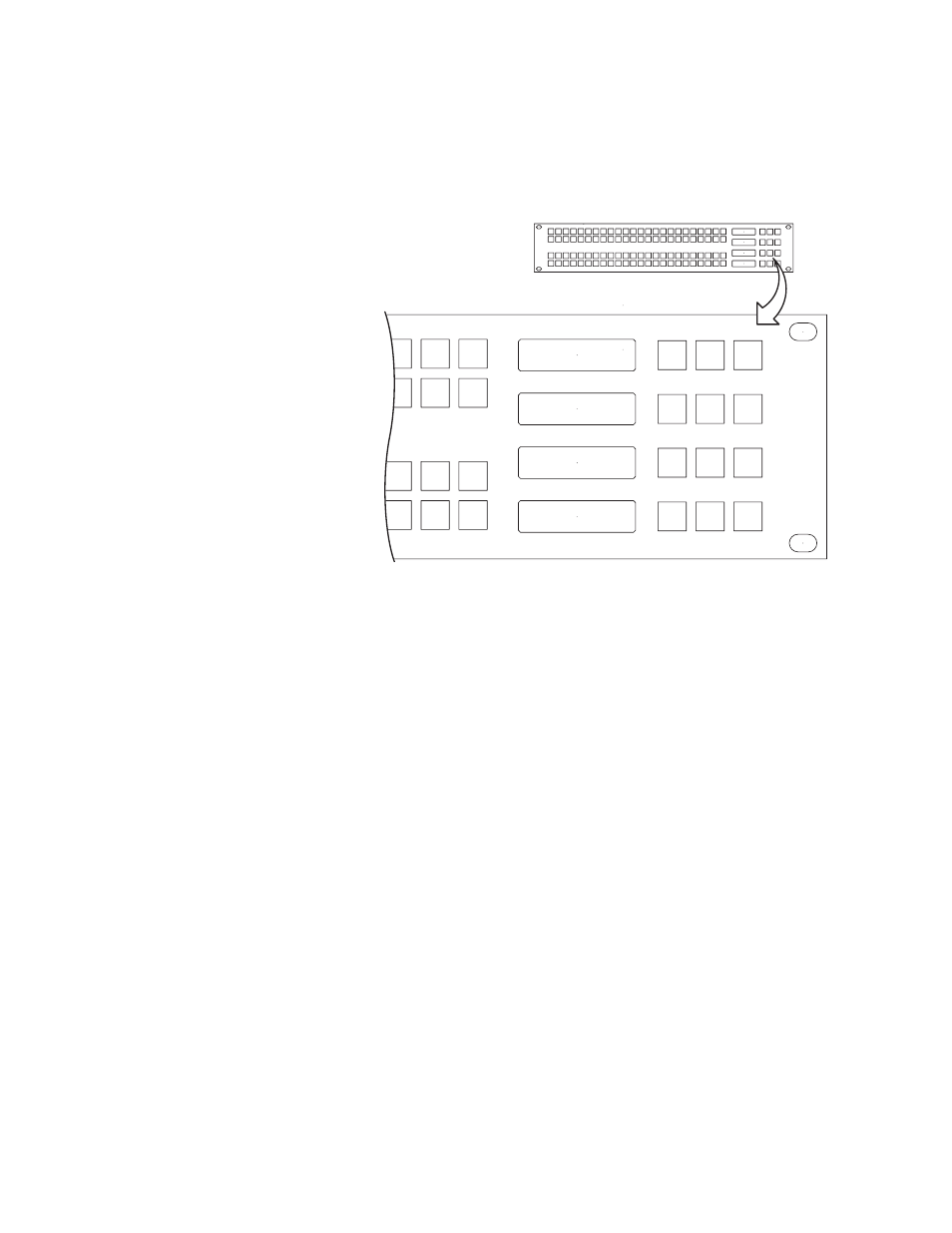

Figure 18. JEP-100 LEDs and mode select buttons
LED Displays
Destination - the output presently controlled by the panel.
Status - the source presently switched to the panel's controlled out put.
Preset - shows the new sources as they being entered, e.g., scrolled using
the UP and DOWN buttons. After TAKE is pressed, the previous source is
shown in the Preset window. This allows "flip-flopping" the sources, or
switching between the current and preset sources by sim ply pressing the
TAKE button.
Level - used for level breakaway (split) switching and level-by-level sta-
tusing.
Show Button Assignment
The 96 keys on the left side of the panel can be assigned to inputs, outputs,
levels, and salvos. To check button assignments, press PRE SET and one of
the "96 keys;" the name of the in/output, level, or sal vo assigned to the key
will be displayed in the Preset window. No ac tual switching takes place
during this procedure.
46
COLORBAR
VTR 001
VTR 002
VIDEO
8536_06
24 Level Salvo Preset
Lock Dest Src
Up
Assign
and
Select
Menu
Down Clean Take
23
48 47
72 71
96 95
22
70
94
Destination
Status
Preset
Level
