JEP-100 — Installation and Operating Manual 31
Multi-Network IP Configuration
Multi-Network IP Configuration
A "remote" JEP-100 can be placed on a network separate from the other
Jupiter devices, such as on a facility LAN. In Figure 11, an IP router serves
as a gateway between two networks.

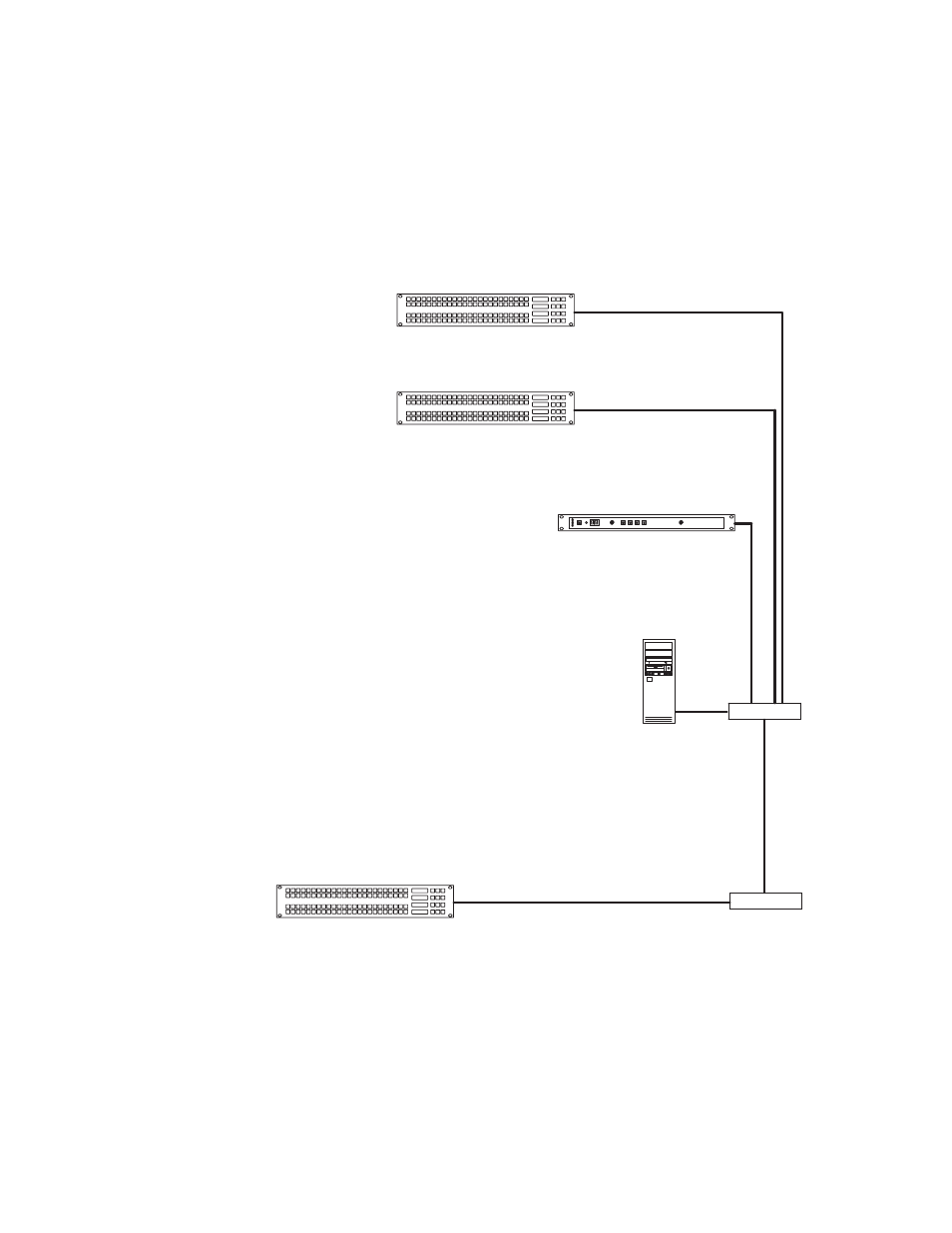

Figure 11. LAN addressing with remote JEP-100 (example)
Configuration is similar to that just described, except that the address of the
gateway must be entered on the web page for the remote JEP-100.
CM-4000 System Controller
Panel IP
“192.168.253.101”
IP switch
Jupiter
File Server
Panel ID
“01”
IP: “192.168.253.10”
IP:
“192.168.253.1”
Panel IP
“192.168.253.102” Panel ID
“02”
Remote JEP-100
Gateway
Facility LAN
Jupiter LAN
IP:
“192.168.1.1”
Panel IP:
“192.168.1.101”
Gateway:
“192.168.1.1”
8536_17
