JEP-100 — Installation and Operating Manual 63
Operation
Menu Functions
The various menu modes are entered by selecting MENU, then UP/
DOWN to scroll to the desired item in the Preset window.
In general, the window describes what will happen if TAKE is pressed. For
example, "Alm. on?" means that Alternate mode will be turned On by
pressing TAKE.
AlM. - Alternate Mode
Alternate mode may be useful when all 96 buttons to the left of the status
displays have been assigned to inputs, outputs, or levels and the operator
wants to make additional assignments on a temporary basis. Alternate
mode allows the top six buttons in the right-hand button cluster to be used
for this purpose. For example, the buttons could be used for level selection
during breakaway switching.
Button assignments must be made prior to entering Alternate mode:
Assigning a source - see page 52 .
Assigning a destination - see page 54 .
Assigning a level - see page 55 .
Alternate mode operation
1. MENU button - ON.
2. Use UP/DOWN to display "Alm on" (Alternate mode On), meaning
that this is the mode that will be selected if TAKE is pressed.
3. Press TAKE.
This activates the six "temporary level" buttons (the outlined buttons in
Figure 24 ). Lighted buttons initially indicate defined levels.

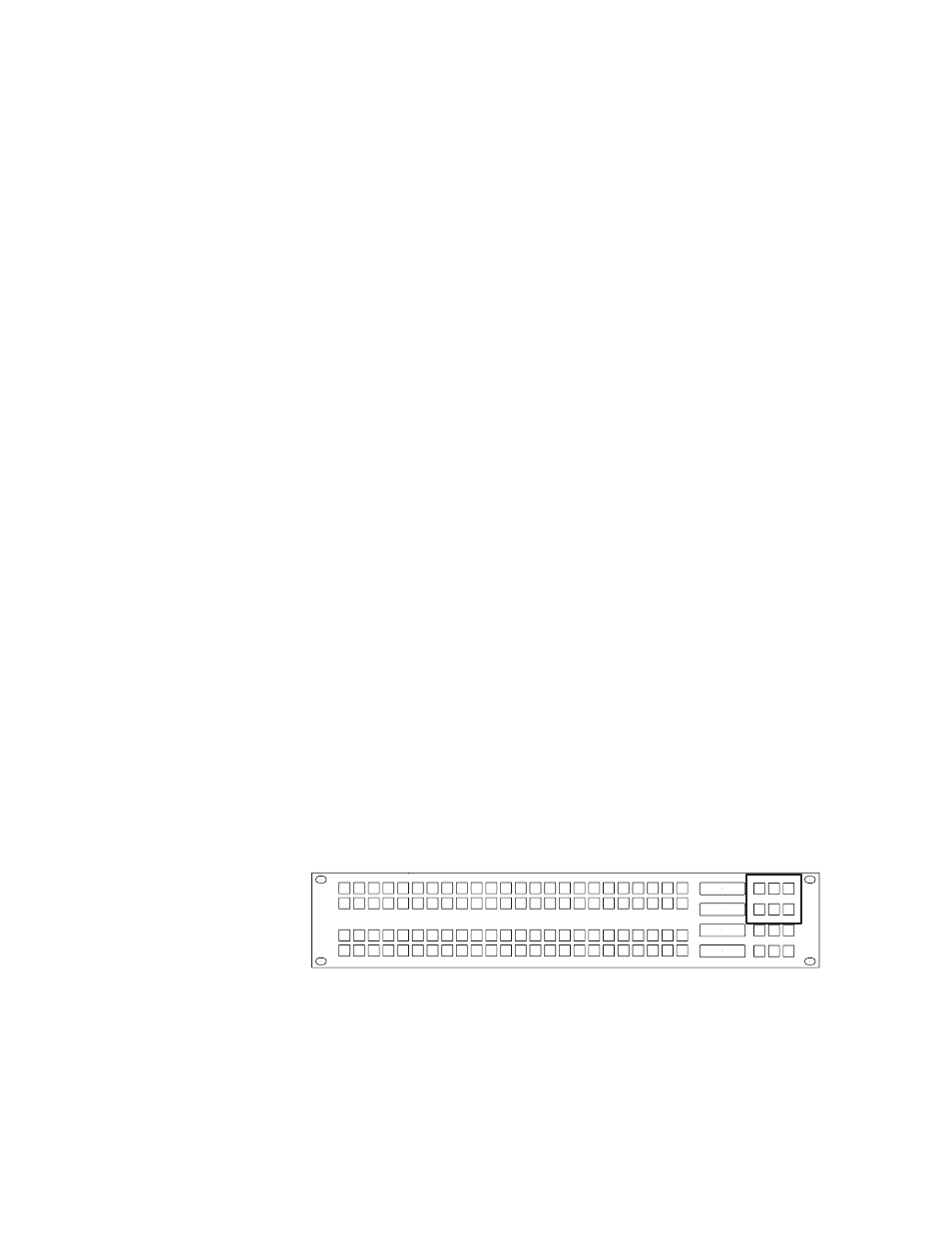

Figure 24.
4. Select the new input.
5. Toggle OFF the level(s) you don't want to switch.
8536_25
