38 JEP-100 — Installation and Operating Manual
Section 1 — JEP-100 Control Panel
Serial System
In this application the JEP-100 is operated in Serial mode, with the LAN
connection used only for software upgrade purposes. See Figure 14.

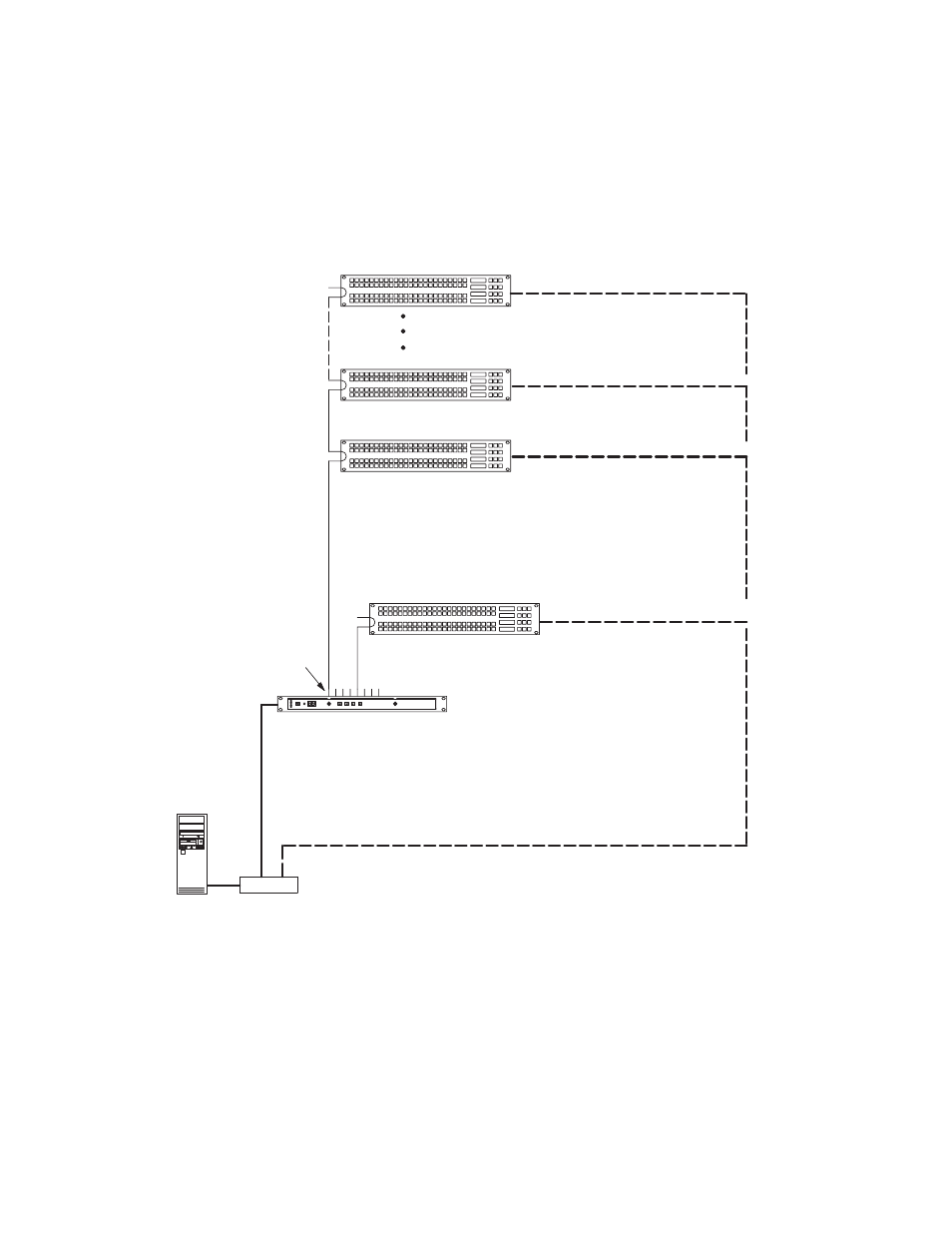

Figure 14. Serial system naming and adressing (example)
Serial
Ports
100baseT Jupi-
ter LAN
16 JEP 100s per
serial bus maximum
IP switch
Serial
buses
Panel ID
“02”
Panel ID
“01”
Panel ID
“16”
Panel ID
“01”
Jupiter
File Server
CM 4000 System Controller
“CM1”
“JEP1”
“JEP2”
“JEP16”
“JEP17”
8536_19
