JEP-100 — Installation and Operating Manual 29

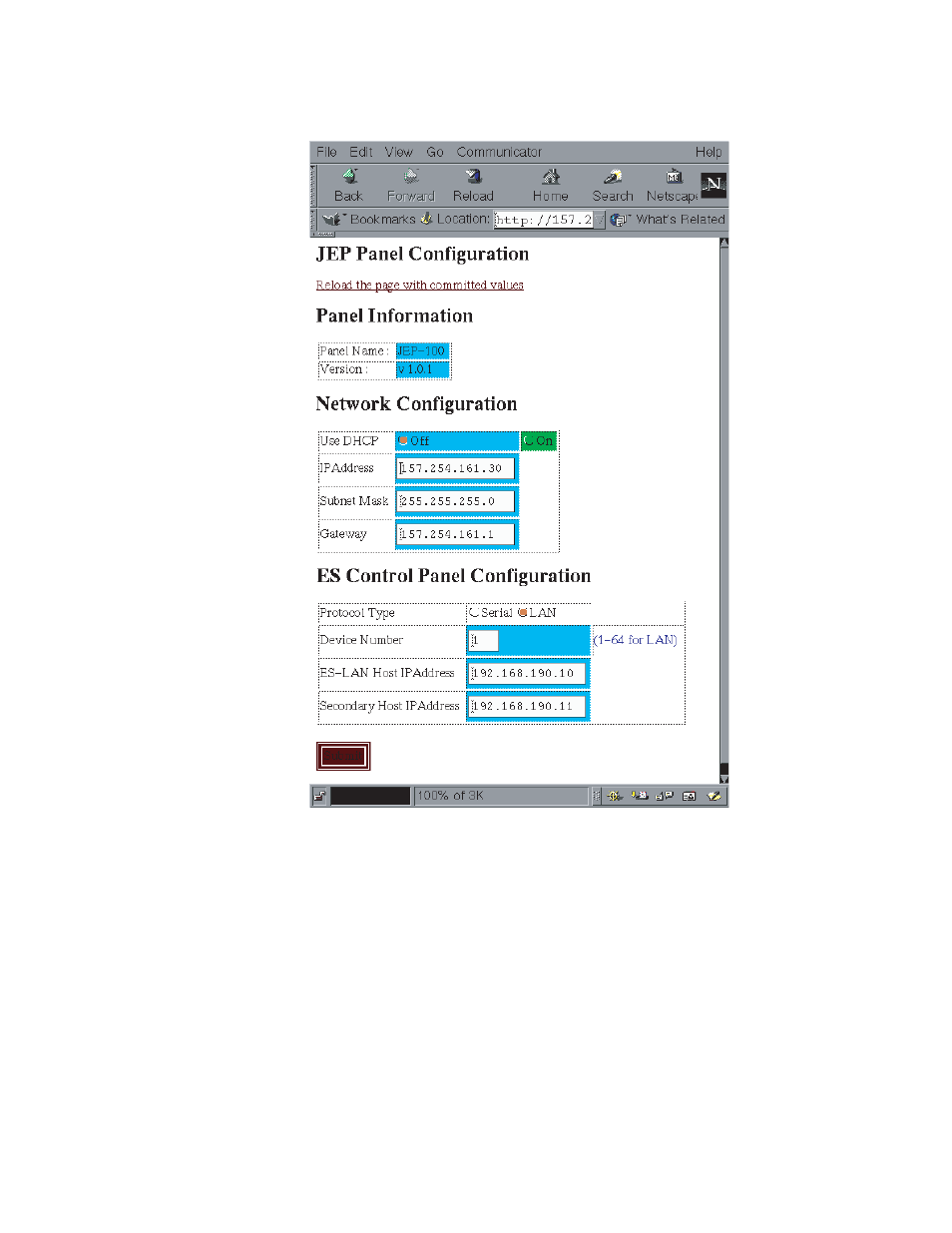

Internet Protocol Configuration
Figure 10.
4. The Panel Information fields are system-generated.
5. For the Network Configuration section:
a. Select DHCP - OFF (unless IP addresses are being set automatically
by a Dynamic Host Configuration Protocol server).
b. IP address - set to a unique value within the same network as the
CM-4000.
For example, if the CM-4000 address is 192.168.253.10, then the JEP-
100 address should be changed to reside in the 192.168.253.x
network (such as "192.168.253.101").
c. Subnet Mask - set to 255.255.255.0.
