Replacing optical dvd drive – Grass Valley FT Server User Manual
Page 84

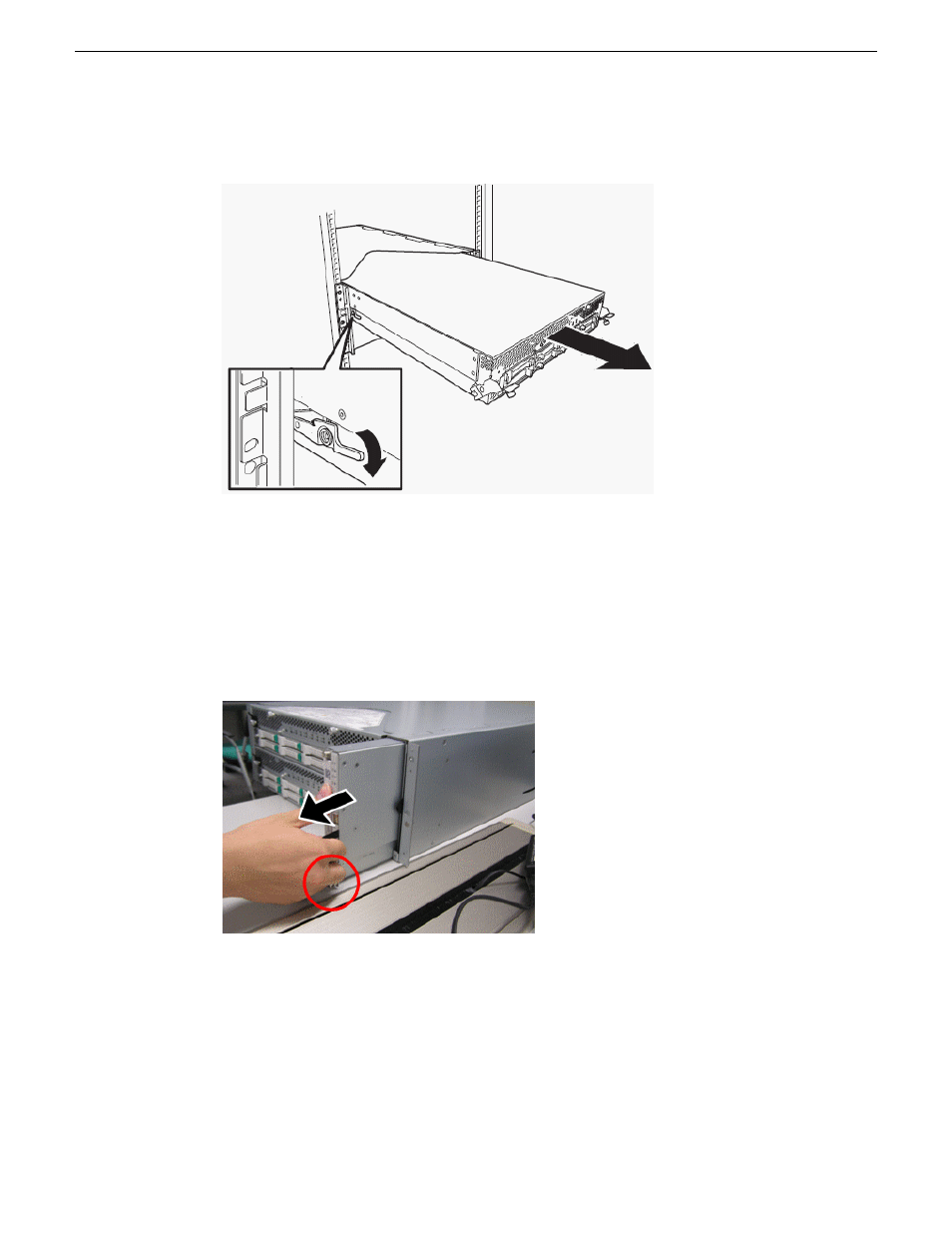

5. Push down on the side lock lever as shown below so it is horizontal and will slide over the lock
mechanism, allowing you to pull out the module completely.
Replacing Optical DVD drive
Use this procedure if you need to replace the optical DVD drive. You may remove this drive while
the FT server is powered up.
1. Remove the front bezel from the chassis.
2. Remove the entire front unit containing the optical DVD drive by turning the thumb screw on
the bottom of the drive unit to the left and pulling out the entire unit.
84
FT Server Instruction Manual
20131220
Servicing the FT Server
