Grass Valley FT Server - Manual (Page 64)

Action Cause Meaning LED Name
Replace Power Supply
Unit.
Replace CPU/IO
module.
Power Supply Unit
CPU/IO module

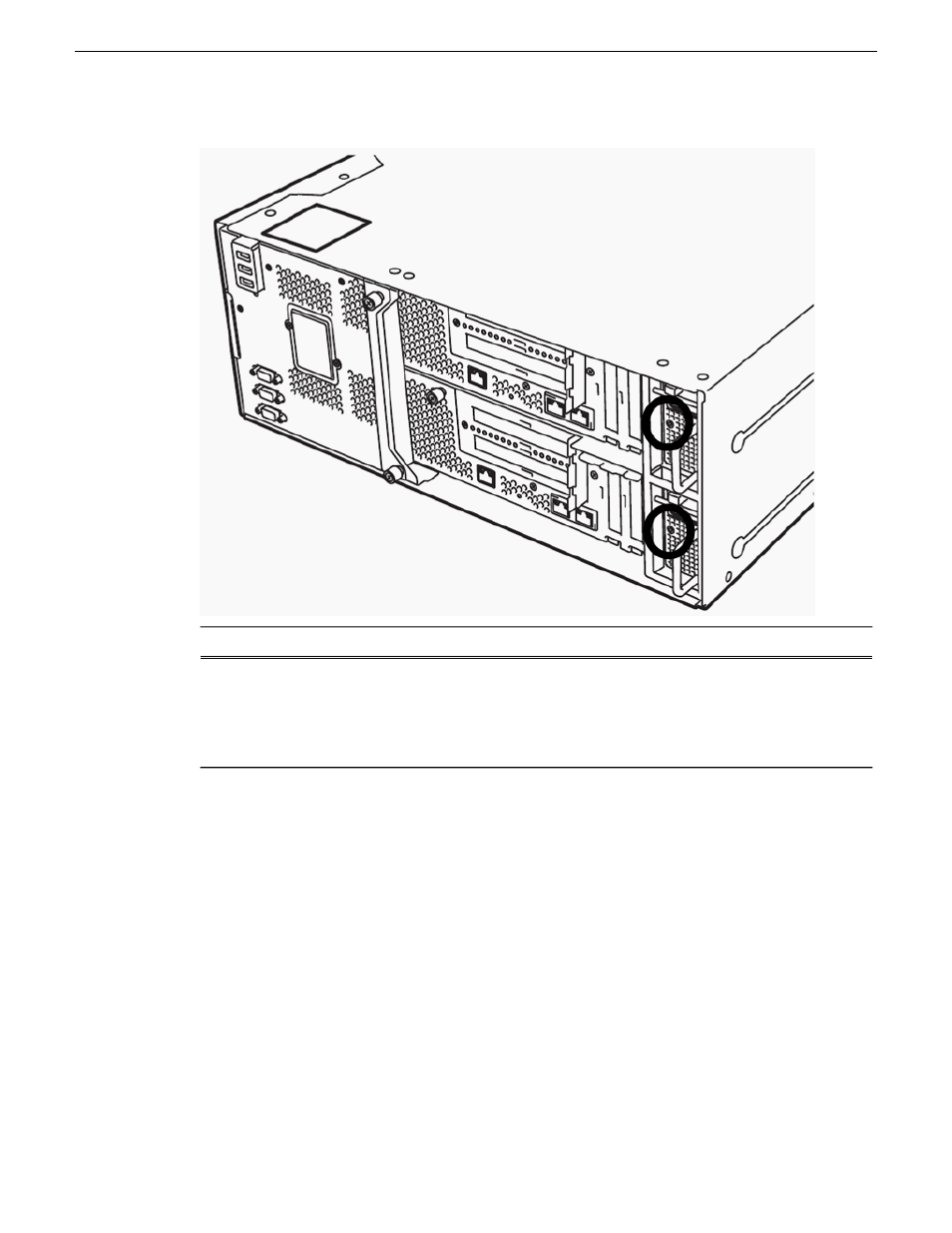

When power supply
unit has a failure, amber
LED will light. Power Supply Unit
LED
Diagnostics, logs and error messages
The various diagnostics, logs, and error messages available for the FT server are defined in this
section in detail. Use these to aid you in determining what failures have occurred in the system.
BIOS error message
The Virtual LCD Display is the function which displays LCD message information in BMC. They
are sent via DianaScope.
In the case of remote operation, each CPU/IO module has a remote connector. It needs to connected
to the CPU/IO module you want to monitor. The Virtual LCD specifications are given in the sections
below.
