3.5.4 Macros
The RCP-BR panel utilises an arm and take mechanism for initiating the action of
a macro. To arm a macro press one of the macro buttons on the bottom button
bar. The current arm state for the macro is indicated in the LCD region directly
above the macro button, see figure 3-12.

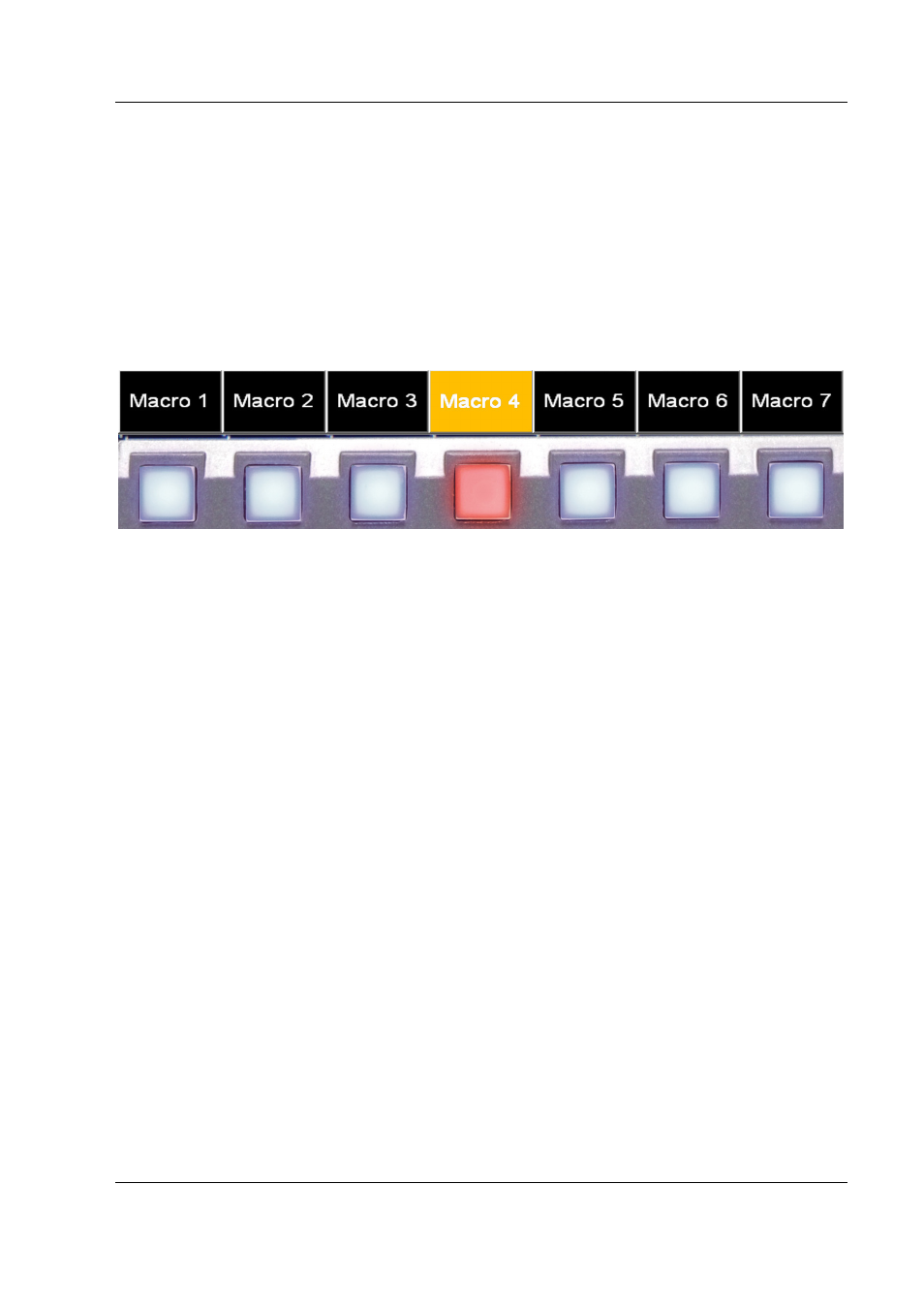

Figure 3-12 Macro buttons and arm indicator
When the indicator area above the macro button is lit amber and the macro button
is lit, this indicates that the macro is armed. When the indicator button is black
and the button is off this indicates that the macro is not armed. Having armed a
macro the macro action is carried on the Imagestore when the Take button is
pressed.
