Grass Valley 8972PX - Manual (Page 66)

66 8972PX — Instruction Manual
Configuration
4. Enter a name in the File name field. This file is saved as a .bin type.

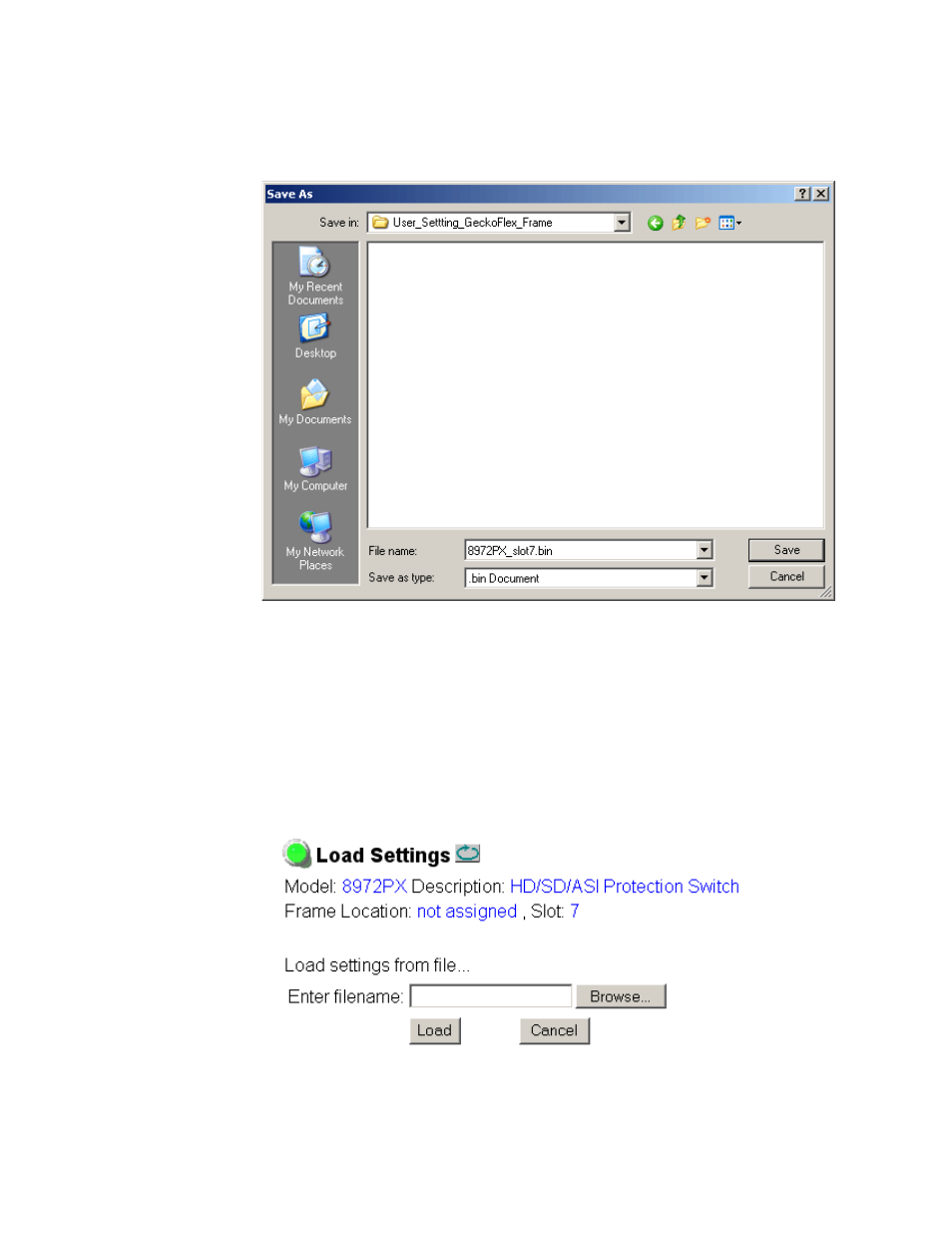

Figure 29. Save As Screen
To load and recall a file, do the following:
1. Selecting the Load From... button on the User Settings web page
( Figure 28 on page 65 ) which will bring up the Load Settings web page
shown in Figure 30 .
2. Enter a path and file name or select Browse... to locate the directory
where the files have been saved.
Figure 30. Load Settings Web Page
3. This will bring up the Choose File screen shown in Figure 31 .
