8972PX — Instruction Manual 31
Installation
Front Module Installation
After installing the dual rear module, install the front module in the corre-
sponding front slot as follows:
1. Remove the front cover of the frame.
2. Locate the two front slots that correspond to the two rear slots where
the rear module has been installed.
3. Slide the module into the slot on the left so that the plastic card guides
on the module top and bottom edges go over the upper and lower
raised rail guides of the slot and the module connector mates with the
rear module connector (
Figure 8 ).
4. Carefully slide the module into the rear connector.
5. Lock the front module ejector tab into the locking pin.
6. Install the front cover of the frame during normal operation.

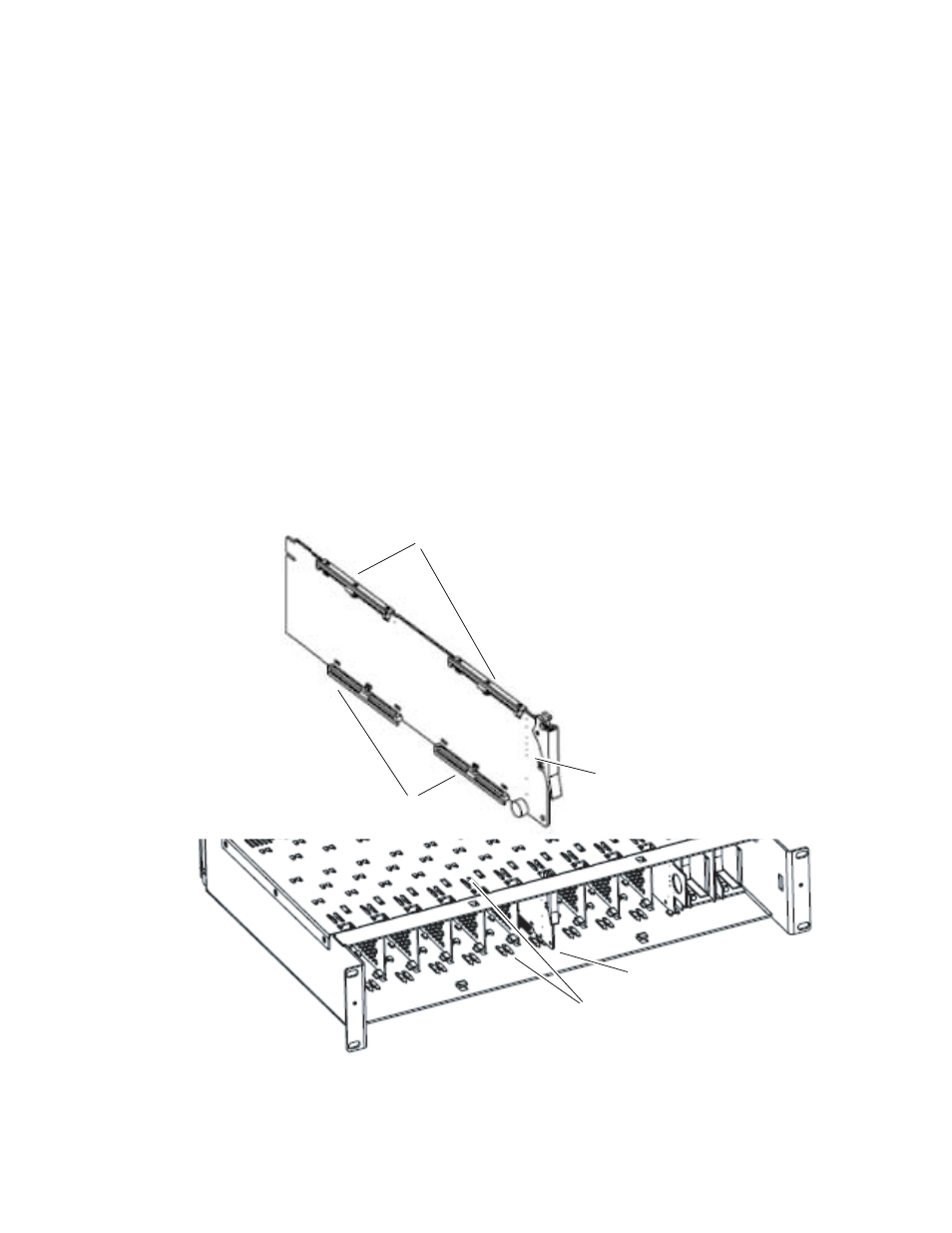

Figure 8. Front Module Installation
8431_07
Slide top and bottom card carriers on module
over top and bottom guides on right of slot.
Module installed
Locking Pin
Card Carriers
Card Carriers
Front Module Side View
