8972PX — Instruction Manual 65
Configuration
User Settings Web Page
Use
this
link
The User Settings web page ( Figure 28 ) provides buttons for recalling
factory defaults and File Operations for saving and recalling user settings.
Use the two buttons at the bottom of the web page to do the following:
• Set Factory Defaults – select the Set Factory Defaults button to recall
factory settings to the module. Defaults for all module parameters are
listed in
Table 12 on page 83 .
• Set Factory Names – select the Set Factory Names button to recall the input
signal factory names on the I/O Config web page ( page 52 ).
The File Operations Save to... and Load from... functions explained below are
provided for saving the current module configuration to a file or loading a
previously saved file.

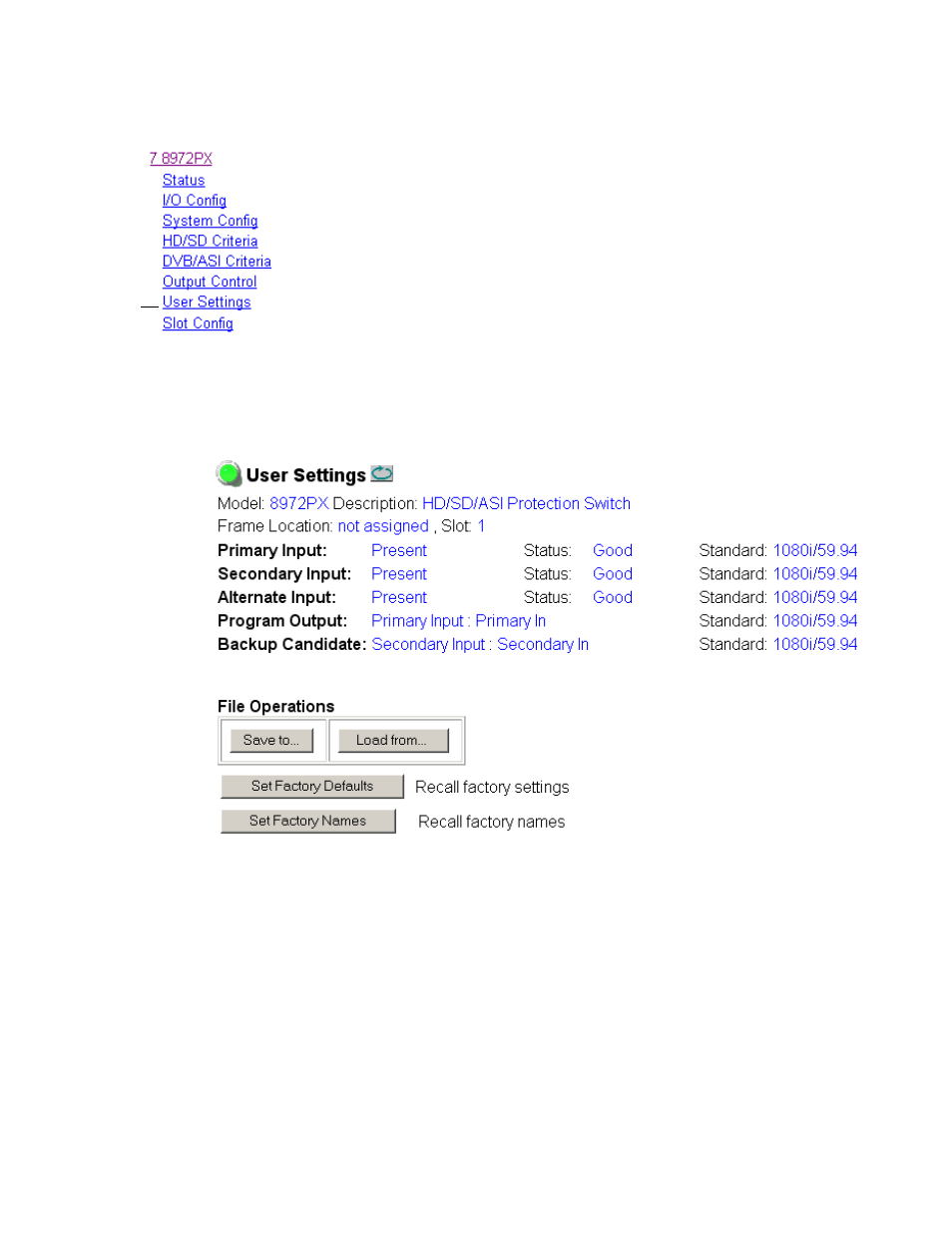

Figure 28. User Settings Web Page
File Operations
Configuration files from the 8972PX module may be saved to a file and
stored offline for later recall. To save a file, do the following:
1. Save the current configuration on the module to a file by selecting the
Save to... button which will bring up the File Download screen (not
shown).
2. In the File Download screen select Save .
3. This will bring up the Save As screen shown in Figure 29 on page 66 .
