8972PX — Instruction Manual 33
Installation

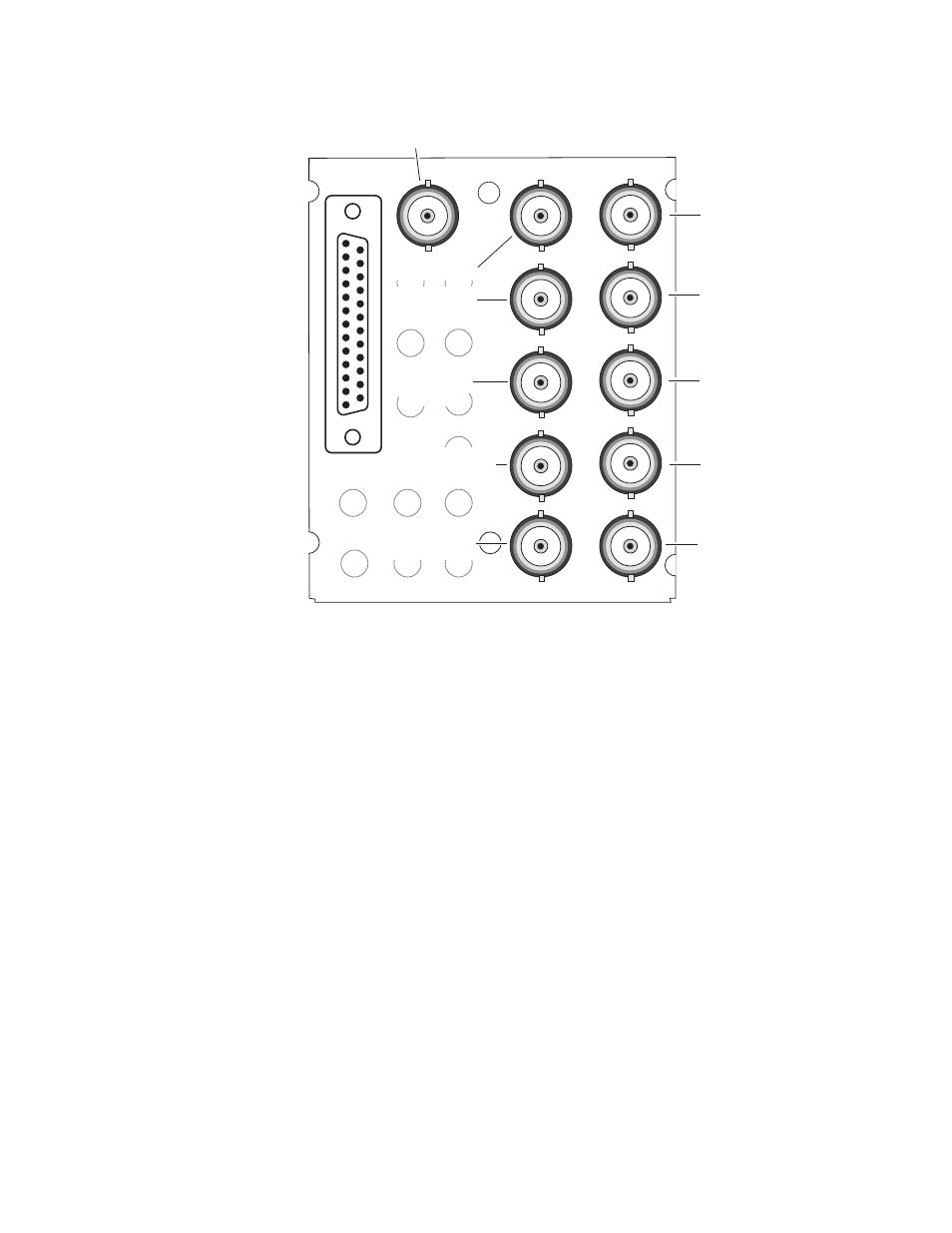

Figure 10. 8900PX-DR Rear Module
Primary Input
Connect the Primary input signal to BNC J9.
Secondary Input
Connect the Secondary input signal to BNC J10.
Alternate Input
If using an Alternate input signal, connect it to BNC J11.
To include this Alternate input as a backup candidate for use in the auton-
omous switching mode, it must be enabled on the System Config web page
in the
Alternate Input Usage in Autonomous Switch Mode control (see System Config
Web Page on page 55 ).
To monitor the status of this input, Alternate Reporting must be enabled on
the I/O Config web page ( page 52 ).
8580_01
8900PX-DR
J1 J2
J3 J4
J5 J6
J7
J9 J10
J11 GPI I/O
J8
J2: Output 2.1
J4: Output 2.2
J6: Output 3.1
J8: Output 3.2
J10: Secondary Input J9: Primary Input
J7: Relay Protected
Program Output
J5: Program
Output
J3: Output 1.2 J3: Output 1.2
J1: Output 1.1
J11: Alternate Input
