8972PX — Instruction Manual 45
Configuration
Refer to the Frame Status page shown in Figure 17 . The modules can be
addressed by clicking either on a specific module icon in the frame status
display or on a module name or slot number in the link list on the left.
Note The physical appearance of the menu displays on the web pages shown in
this manual represent the use of a particular platform, browser and version
of 8900NET (Net Card) module software. They are provided for reference
only. Displays will differ depending on the type of platform and browser you
are using and the version of the 8900NET software installed in your system.
This manual reflects 8900NET software version 4.3.0, the latest release,
using Internet Explorer, the recommended web browser, with Windows XP
operating system.
For information on status and fault monitoring and reporting shown on the
Status page, refer to
Status Monitoring Summary on page 73 .

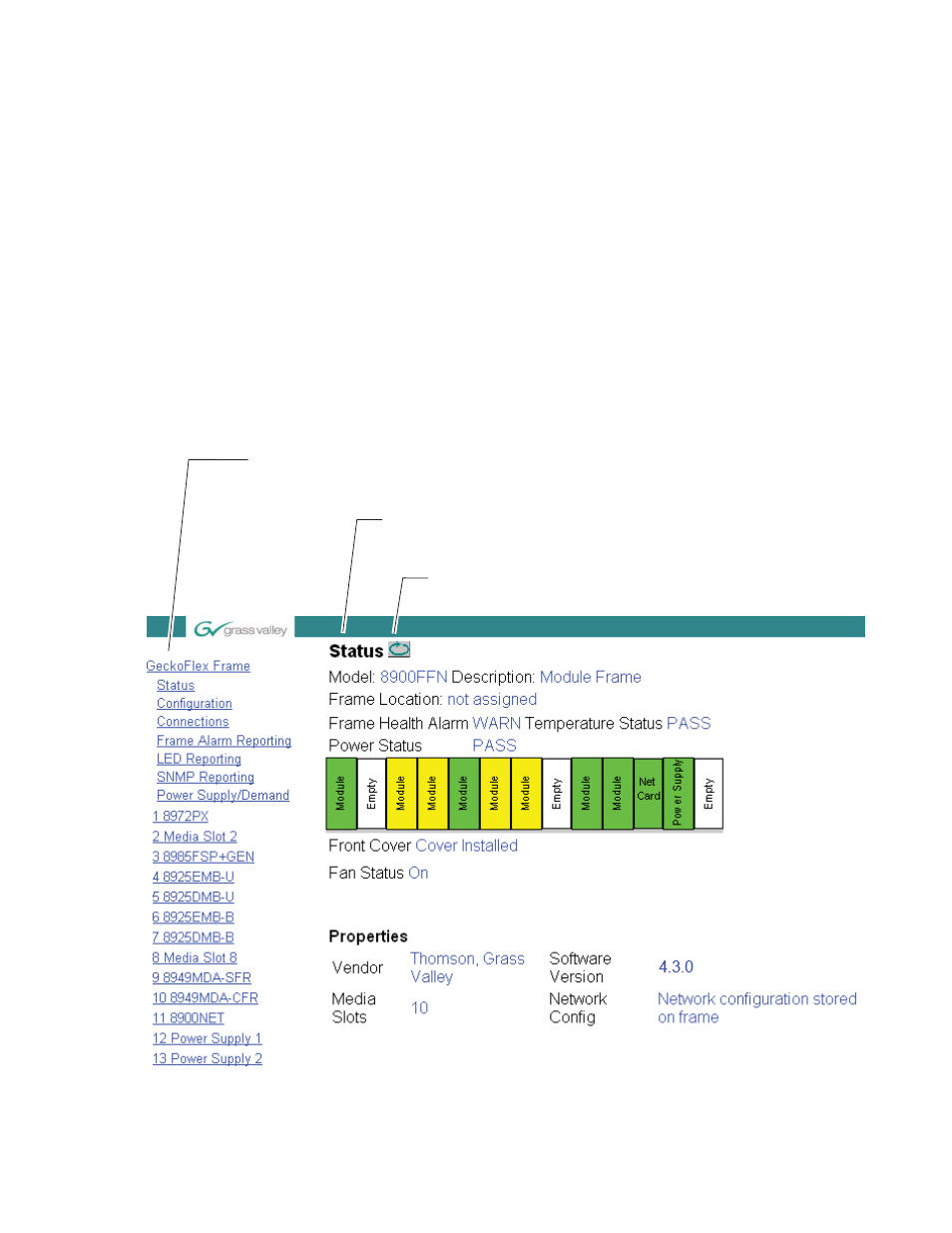

Figure 17. GeckoFlex Frame Status Page
The Links section lists the frame and its current modules. The selected link's Status
page is first displayed and the sub-list of links for the selection is opened. The sub-list
allows you to select a particular information page for the selected device.
Content display section displays the information page
for the selected frame or module (frame slot icons are also
active links).
Refresh button for manual
update of page
8480_02
r1
