62

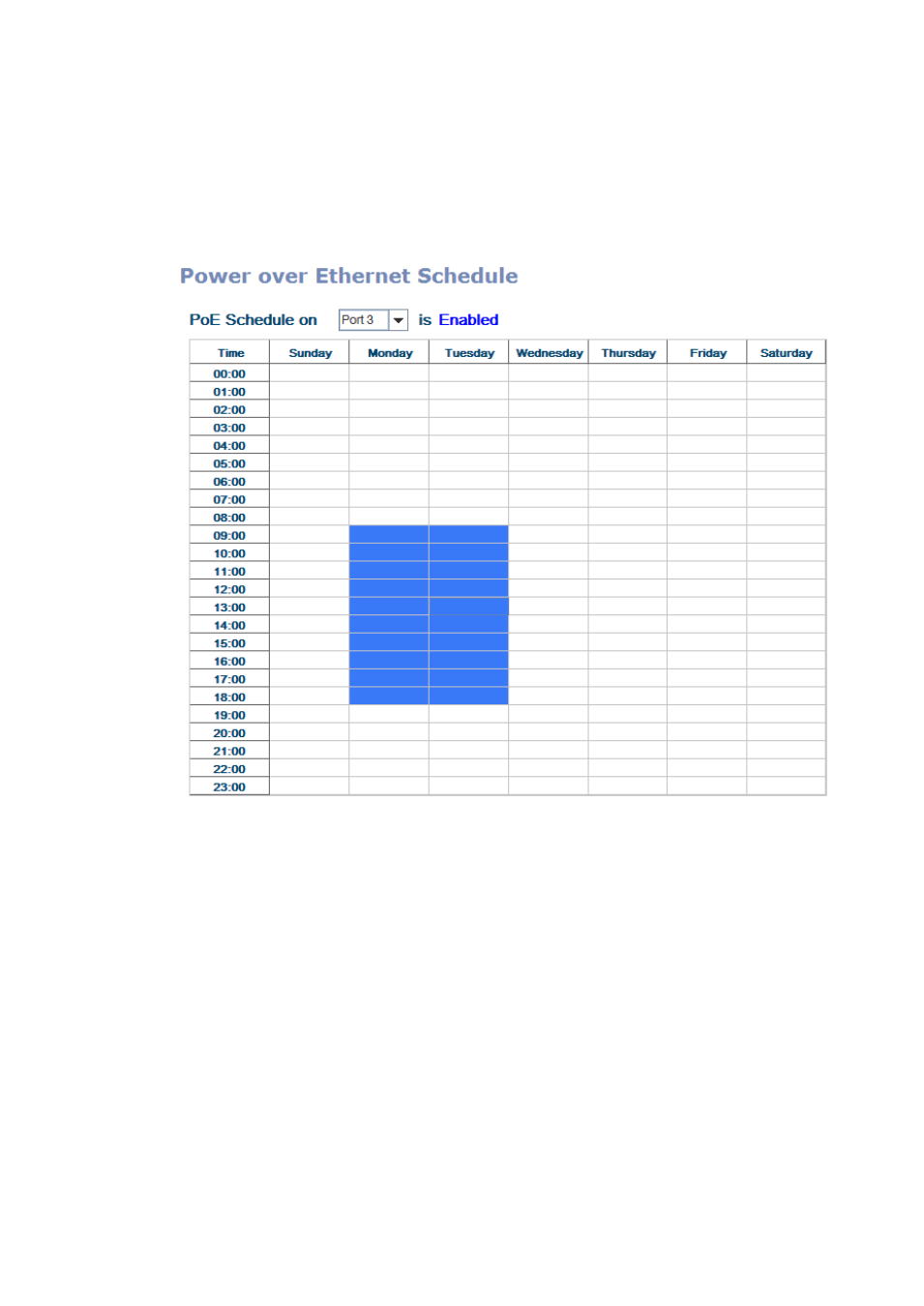

4.4.4 PoE Scheduling
The PoE Scheduling control is a powerful function which helps you to save power
and money. You need to configure PoE Scheduling and select a target port
manually to enable this function.
4.4.5 PoE Status
The PoE Status page shows the operating status of each power and each PoE Port.
The power information includes power input voltage,budget, power aggregation,
redundancy status, Total Power budget, Total Output Power, Warning Water
Level and Utilization. The PoE Port information includes PoE mode, Operation
status, PD class, Power Consumption, Voltage and Current.
Power aggregation: if the powers are in the same priority level (primary,
secondary or tertiary), the powers will be aggregated. Use the same voltage
power will become power aggregation.
Power redundancy: if the powers are in the different priority level, the secondary
power will be backup power for primary. The tertiary power will be backup power
for primary or secondary.
