Aggregation Status
This page shows the status of port aggregation. Once the aggregation ports are
negotiated well, you will see following status.
Group ID: Display Trunk 1 to Trunk 8 set up in Aggregation Setting.
Type: Static or LACP set up in Aggregation Setting.
Aggregated Ports: When the LACP links is up, you can see the member ports in
Aggregated column.
Individual Ports: When LACP is enabled, member ports of LACP group which are
not connected to correct LACP member ports will be displayed in the Individual
column.
Link Down Ports: When LACP is enabled, member ports of LACP group which are
not linked up will be displayed in the Link Down column.

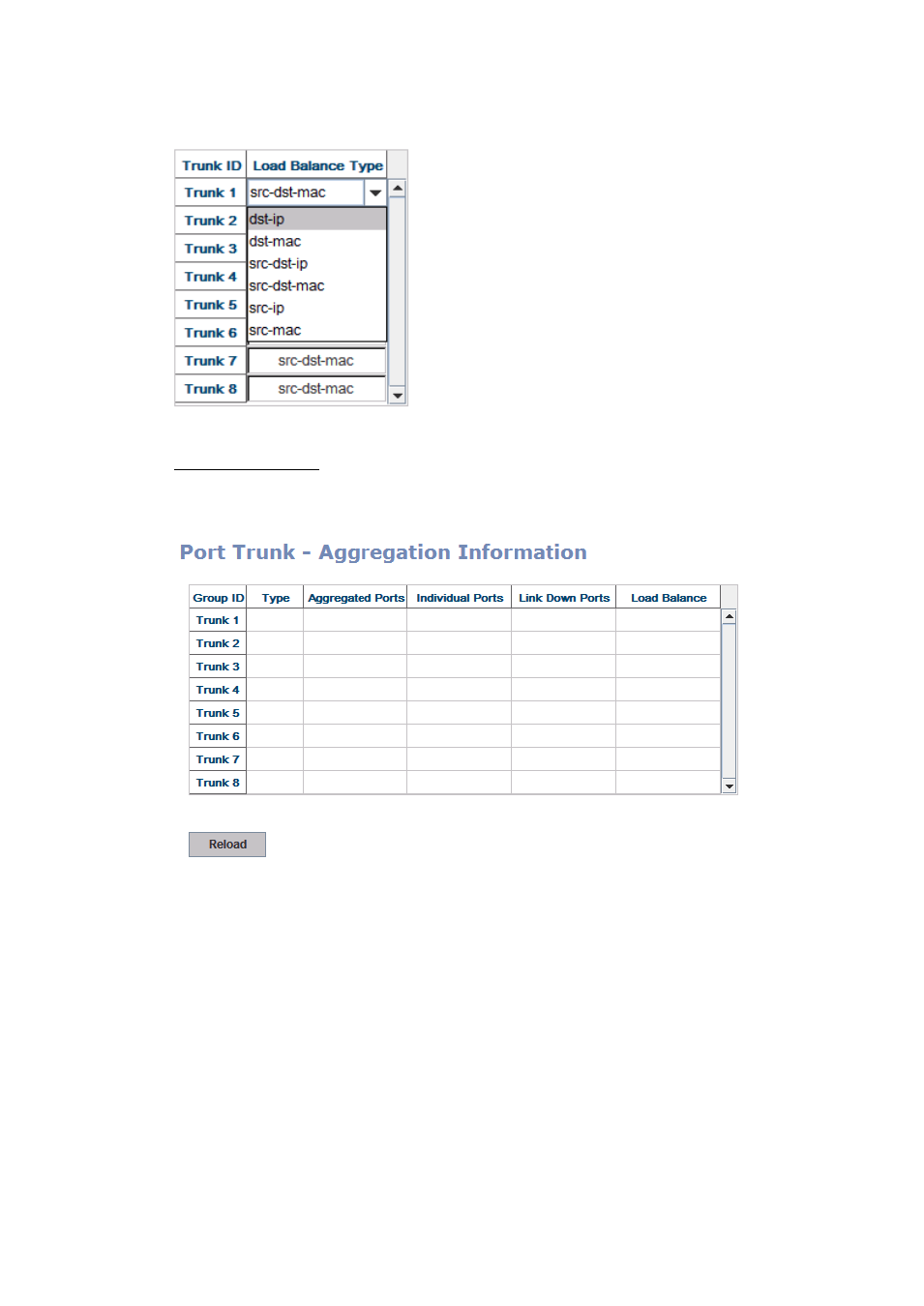

Load Balance: There are several load balance types based on dst-ip (Destination
IP), dst-mac (Destination MAC), src-dst-ip (Source and Destination IP), src-dst-mac
