124
authentication protocols in MD5 and SHA. You will need to configure SNMP v3
parameters for your SNMP tool with the same authentication method.
Auth. Password: Here the user enters the SNMP v3 user authentication
password.
DES Encryption Password: Here the user enters the password for SNMP v3 user
DES Encryption.
4.10.3 SNMP Traps
SNMP Trap is the notification feature defined by SNMP protocol. All the SNMP
management applications can understand such trap information. So you don’t
need to install new application to read the notification information.

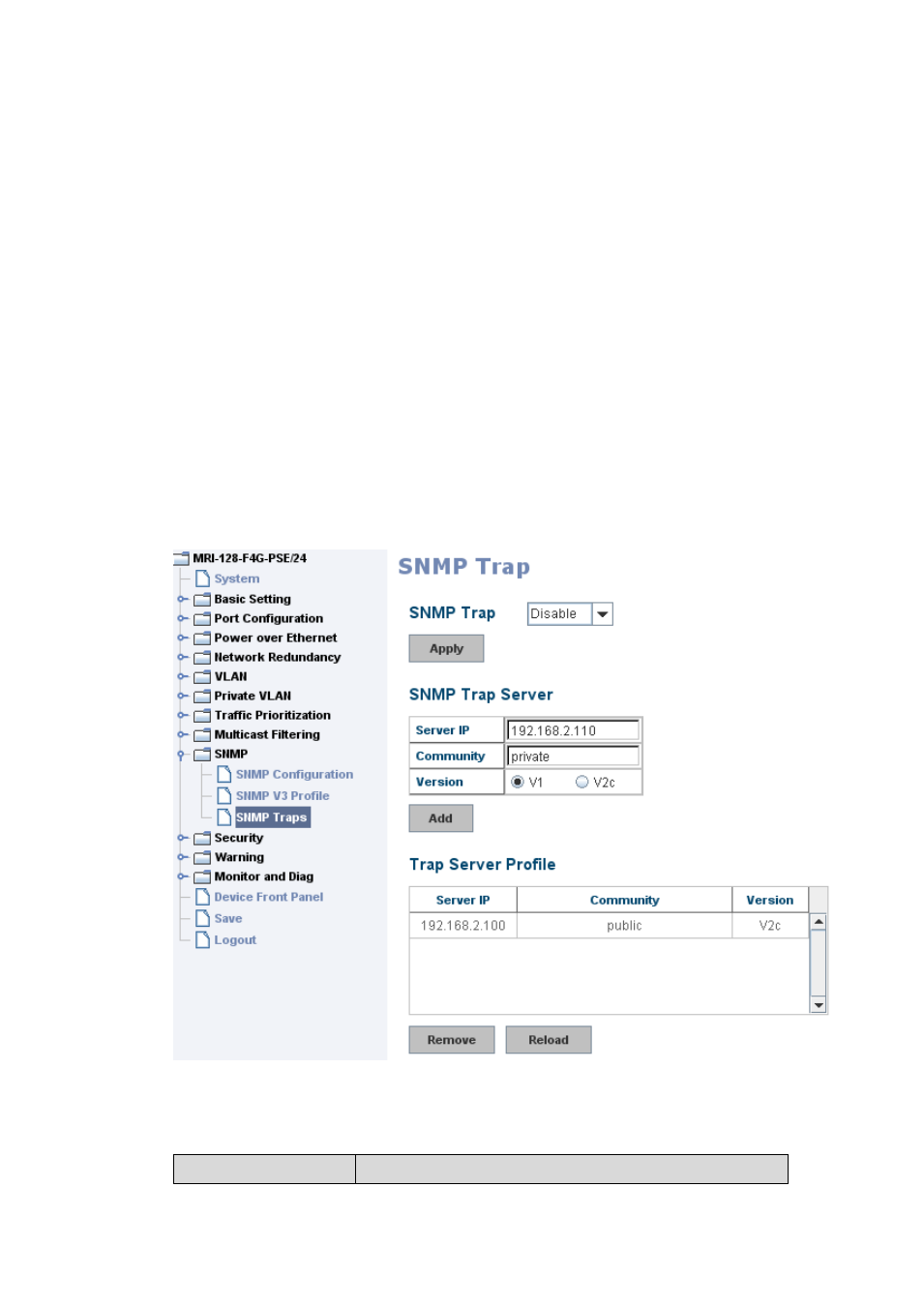

This page allows users to Enable SNMP Trap, configure the SNMP Trap server IP,
Community name, and trap Version V1 or V2. After configuration, you can see
the change of the SNMP pre-defined standard traps and Westermo pre-defined
traps. The pre-defined traps can be found in Westermo private MIB.
4.10.4 CLI Commands of the SNMP
Command Lines of the SNMP configuration
Feature Command Line
