Primary: The VLAN is the Primary VLAN. The member ports can communicate
with secondary ports.
Isolated: The VLAN is the Isolated VLAN. The member ports of the VLAN are
isolated.
Community: The VLAN is the Community VLAN. The member ports of the VLAN
can communicate with each other.

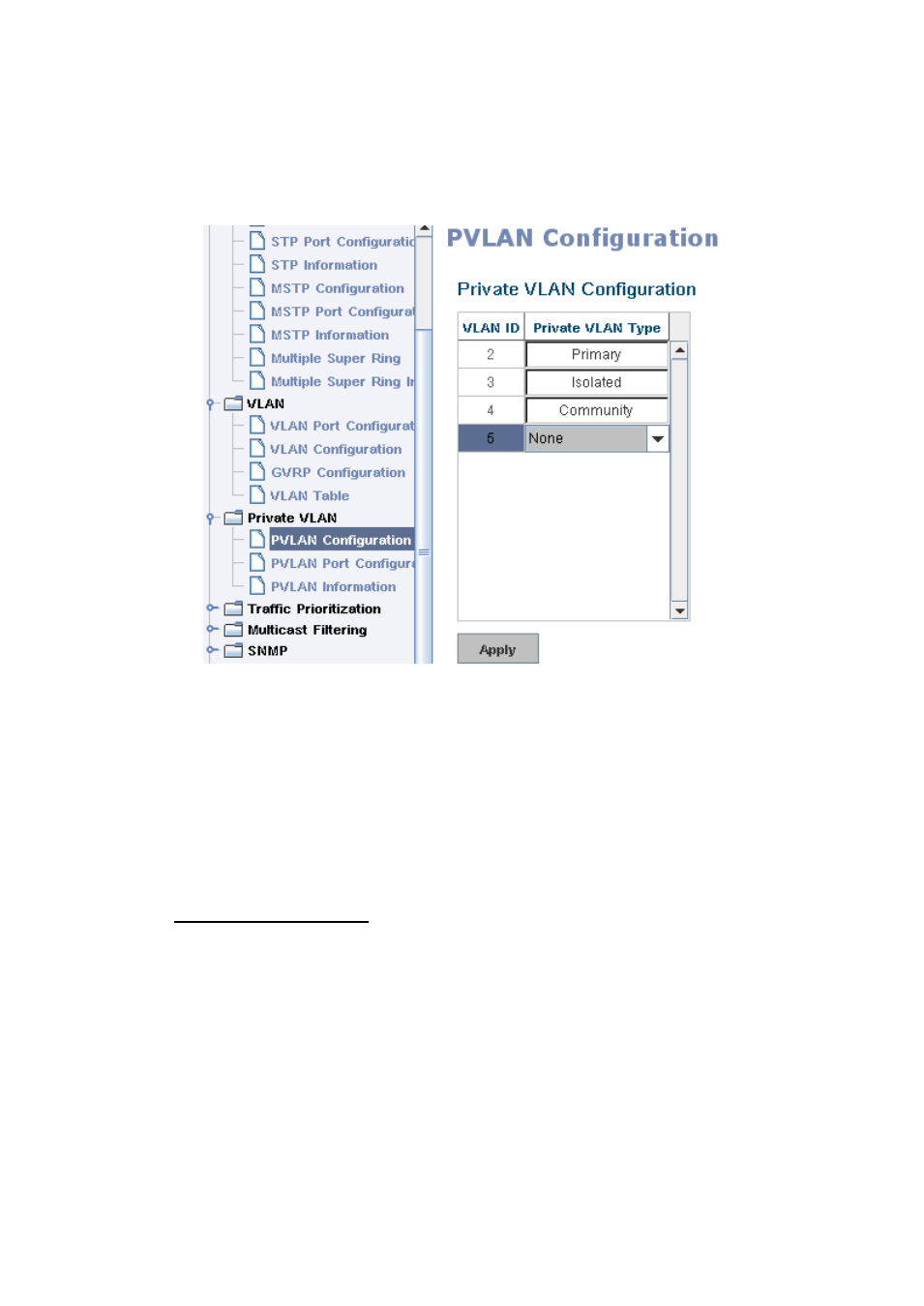

4.7.2 PVLAN Port Configuration
PVLAN Port Configuration page allows configure Port Configuration and Private
VLAN Association.
Private VLAN Association
Secondary VLAN: After the Isolated and Community VLAN Type is assigned in
Private VLAN Configuration page, the VLANs are belonged to the Secondary VLAN
and displayed here.
Primary VLAN: After the Primary VLAN Type is assigned in Private VLAN
Configuration page, the secondary VLAN can associate to the Primary VLAN ID.
Select the Primary VLAN ID here.
Note: Before configuring PVLAN port type, the Private VLAN Association should
be done first.
