Chapter 4 Designing Labels with LDS
438 Operator’s Manual - 880052-0100 4-5
812 (4 X 203) dots in the horizontal or “X” direction, and 1218 (6 X 203) dots in the “Y”
direction.
While the maximum number of dots in the horizontal or “X” direction is limited by print head
size, it is virtually unlimited in the vertical or “Y” direction. Vertical dot rows are “stepped” by
the drive roller motor.
This is a list of the header element mnemonics for the sample label in Figure 4-2:
HFM, LSX, LSY, WEB, GAP, DPS, LCB, AGD, SPG, OFX, OFY
5 1280 900 20 40 7 0 1 730 0 0

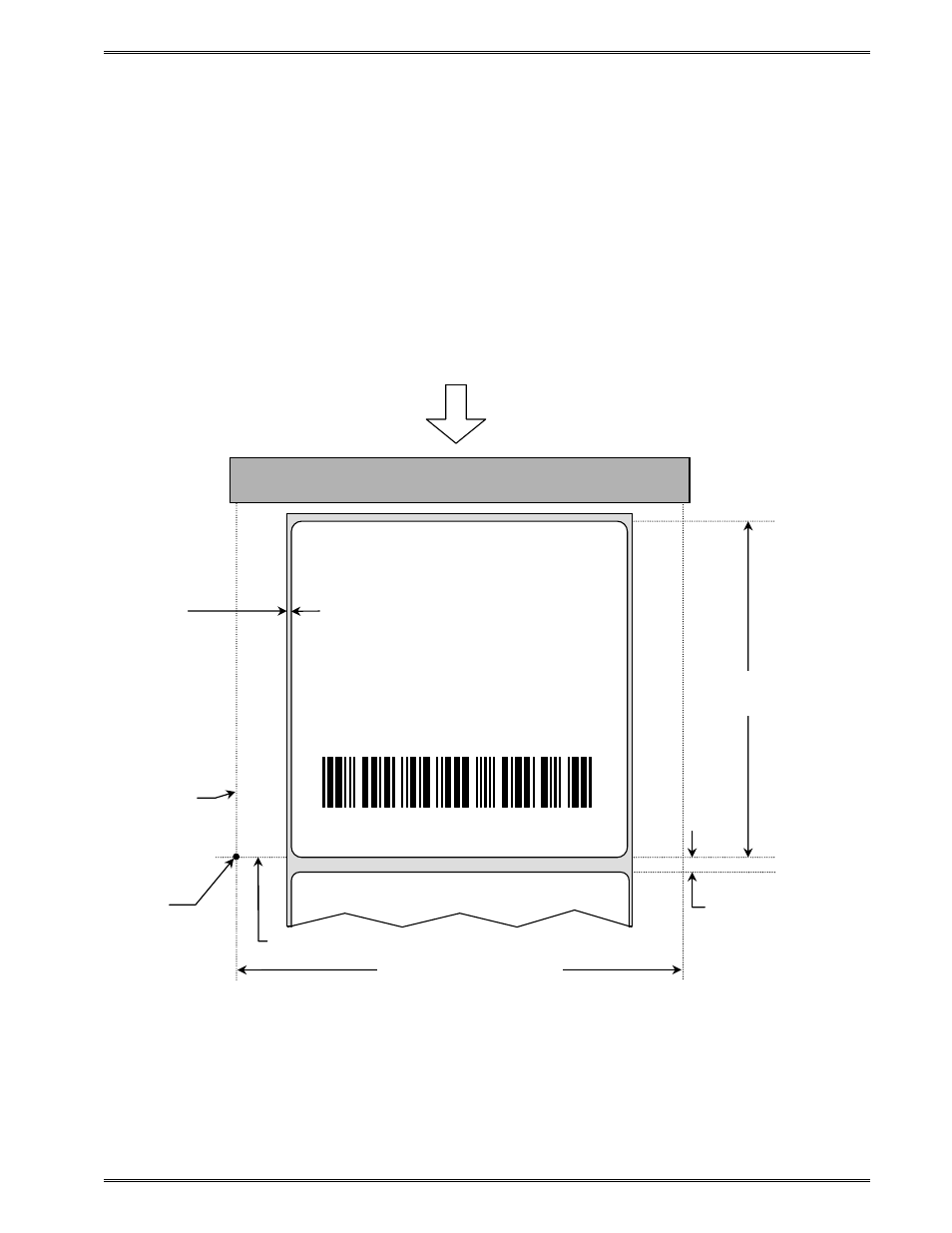

Figure 4-3 Header Elements
This is the
origin; 1,1
LSY
3.0” or 900 Dots
X beginning
Gap Value
.125” or 40 Dots
LSX
4.266” or 1280 Dots
(Total Print Head Dots)
Microcom
Corporation
Thermal Printing Solutions
012345
4” PRINT HEAD
Y beginning
Web Value
.0625” or
20 Dots
Feed Direction
