Chapter 8 Bar Codes
438 Operator’s Manual - 880052-0100 8-5

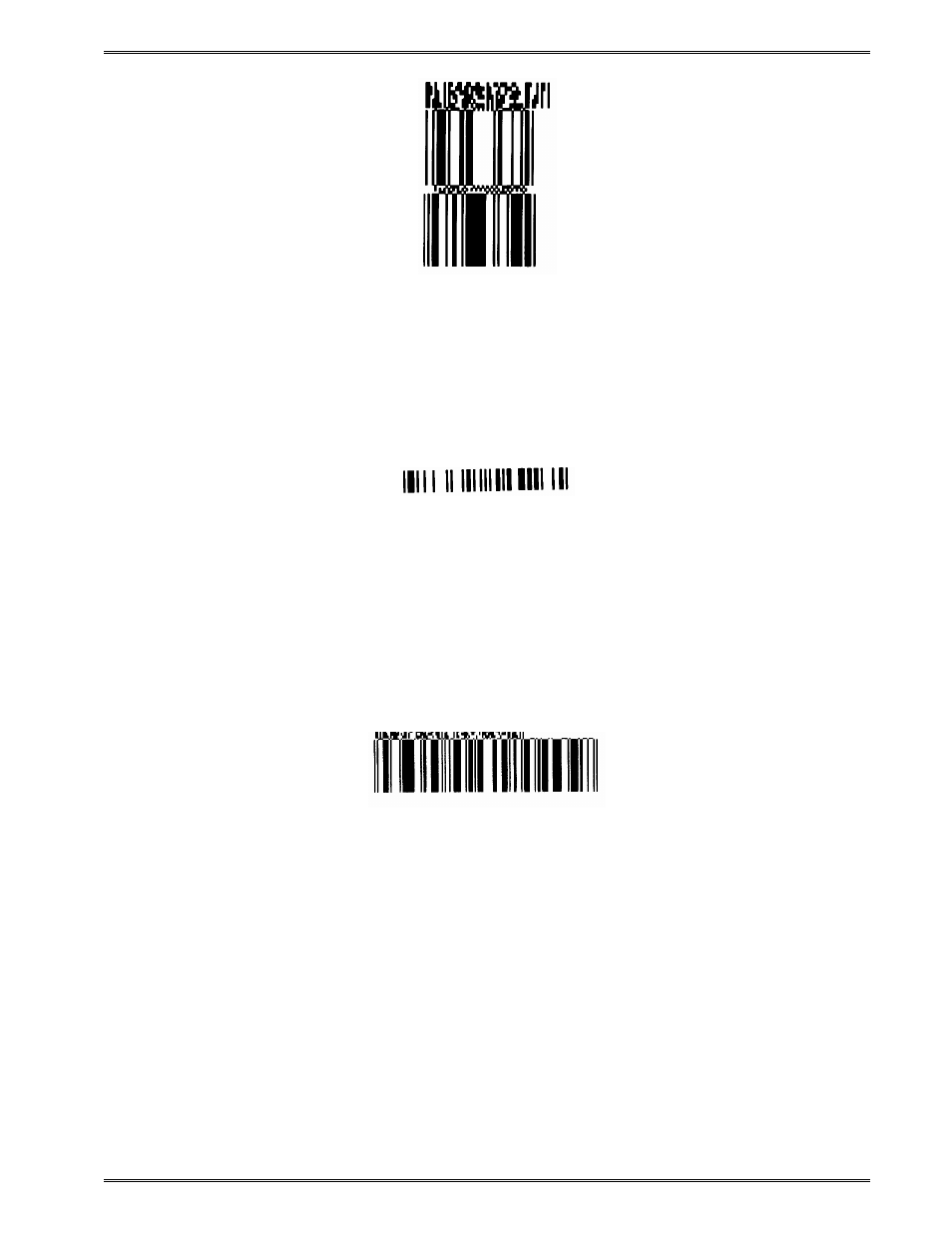

Figure 8-4 GS1 Databar Stacked Omni-directional Sample
8.1.11.5
GS1 Databar Limited
GS1 Databar Limited has the same data characteristics as the GS1 Databar Omni-
directional barcode, except that it may only include values up to 4 trillion. This symbology is
specifically designed to be read by wands and handheld laser scanners. Omni-directional
scanners can not read it efficiently.
Figure 8-5 GS1 Databar Limited Sample
8.1.11.6
GS1 Databar Expanded
GS1 Databar Expanded is a variable length symbology capable of encoding up to 74
numeric or 41 alphabetic characters. This symbology does allow for the linkage flag, which
determines if there is a 2D composite barcode associated with the linear barcode. Despite
the possible length of the symbol, it can still be omni directionally read by suitably
programmed laser point-of-sale scanners because the symbol can be decode in up to 22
segments and then reconstructed.
Figure 8-6 GS1 Databar Expanded Sample
8.1.11.7
How to Print an GS1 Databar Barcode
There are two steps to printing an GS1 Databar barcode:
1) Send the ^D114 command and the 7 setup parameters
2) Send a label format that calls the GS1 Databar barcode TCI #35.
These are the 7 parameters that MUST follow the ^D114 command:
1) Type of GS1 Databar barcode
2) Height
3) reserved
4) reserved
5) reserved
6) Separator Height
7) Data to be encoded
