Flowserve MX/QX Profibus DP/PA Field Unit - Manual (Page 29)

29
PB DPV1 / PA Field Unit Installation and Maintenance FCD LMENIM2336-03 – 12/12
flowserve.com

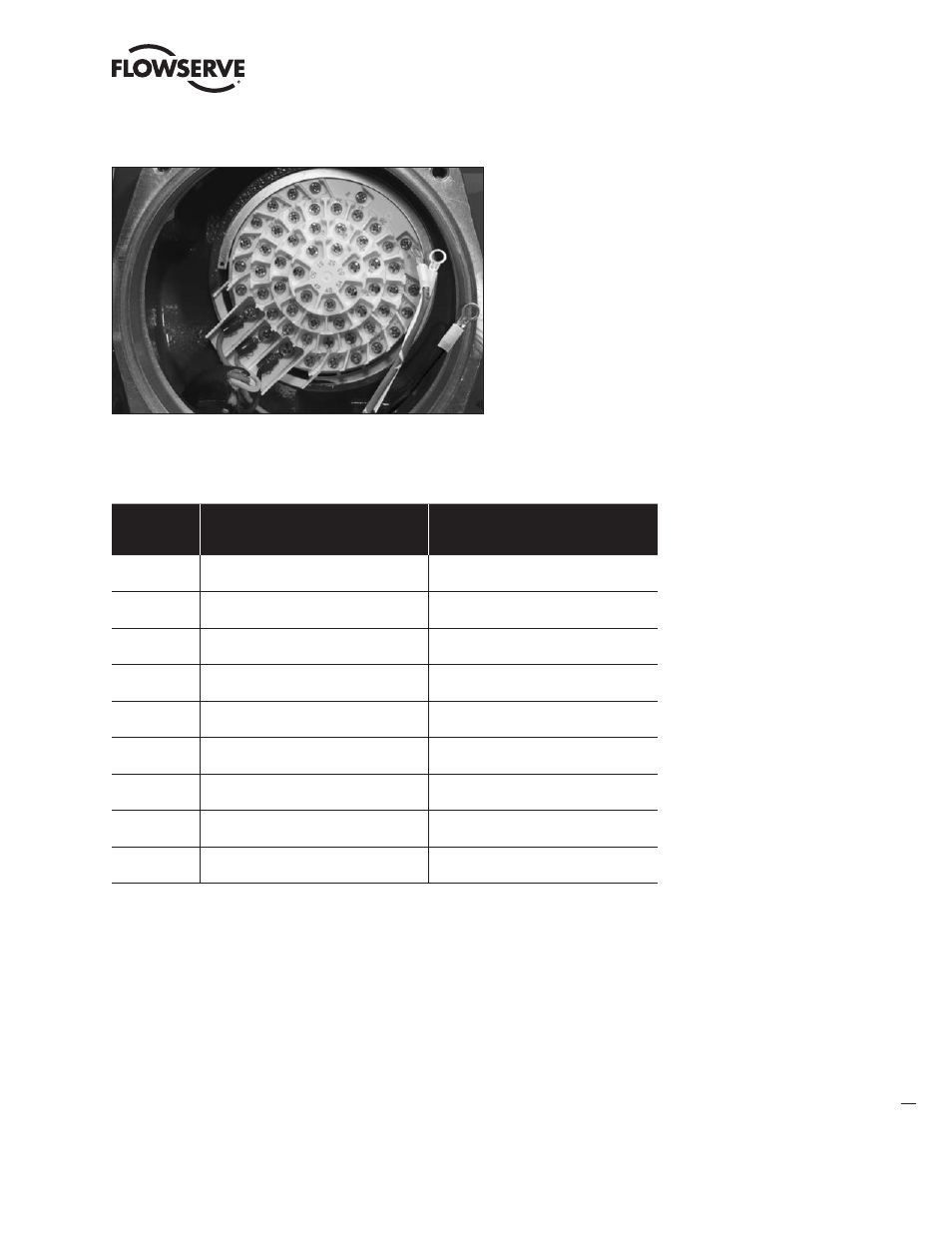

Figure 2.18 – Ring Tongue Connectors
6. Connect the network cables to the MX/QX terminal block as shown in Figure 2.19.
Table 2.8 – Details of Terminal Block Cable Assignments
Terminal Block
Number
DP Connection PA Connection
1 PBDP-B (-) Out N/A
2 PBDP-B (+) Out N/A
3 Surge/Ground Surge/Ground
4 PBDP-A (-) Out PBPA1 (-)
5 PBDP-A (+) Out PBPA1 (+)
13 PBDP-A (+) In PBPA1 (+)
14 PBDP-A (-) In PBPA1 (-)
15 PBDP-B (-) In N/A
16 PBDP-B (+) In N/A
NOTE: Terminal 3 must be connected to earth ground in each actuator for field unit surge
suppression.
NOTE: Ground each segment of the cabling at each field device unit. See Section 2.2.4.1 and
2.2.5.1. Verify the actuator is properly grounded.
7. Connect the cable shields to each other inside the unit. Do not connect them to the unit in any
way. The network shield should be grounded at the end of each segment. For surge suppression,
Terminal 3 must be tied to earth ground in both DP and PA applications.
