Pilot
Enables or disables the Pilot for DVB-S2 mode of operation only.
DiSEqC
Enables sending and receiving DiSEqC commands as are supported in DiSEqC mode 1.2. The valid
configuration settings for DiSEqC mode are:
• Off
• Mode A
• Mode B
• Mode C
• Mode D
Switch Time
The number of seconds the unit should wait before attempting to locate the backup carrier. If set to
disable, the CMR-6000 will not attempt to switch to a backup carrier. The valid range is 5 to 30 seconds.
4.3.3.2 Monitor

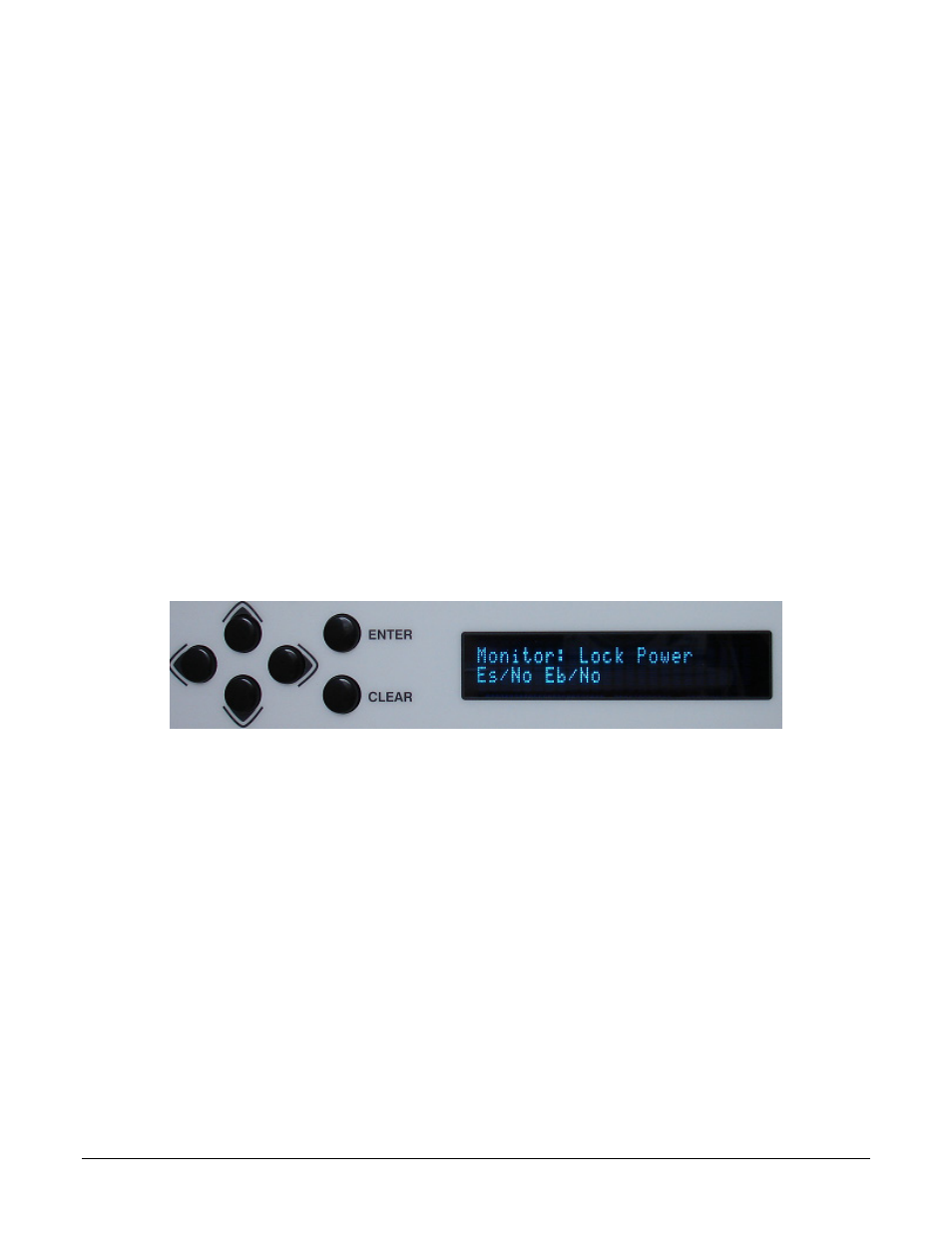

Monitor displays the following information about the current state of the CMR-6000:
Lock
Power
Es/No
Eb/No
Lock
Displays the current tuner configuration (Primary or Backup) and the current acquisition state (locked or
not locked).
Power
Displays the current tuner configuration (Primary or Backup) and the received port input level. This level
must be between -50 dBm to -25 dBm for proper operation.
Es/No
Displays the current tuner configuration (Primary or Backup) and the Es/No (Symbol Energy over the
Noise Density).
Eb/No
Displays the current tuner configuration (Primary or Backup) and the Eb/No (Energy per Bit to Noise
Power Spectral Density Ratio).
