Digicast Media Router S2 Receiver CMR-6000 Revision 1
Device Management via User Interfaces MN-CMR6000-IOM
4-30

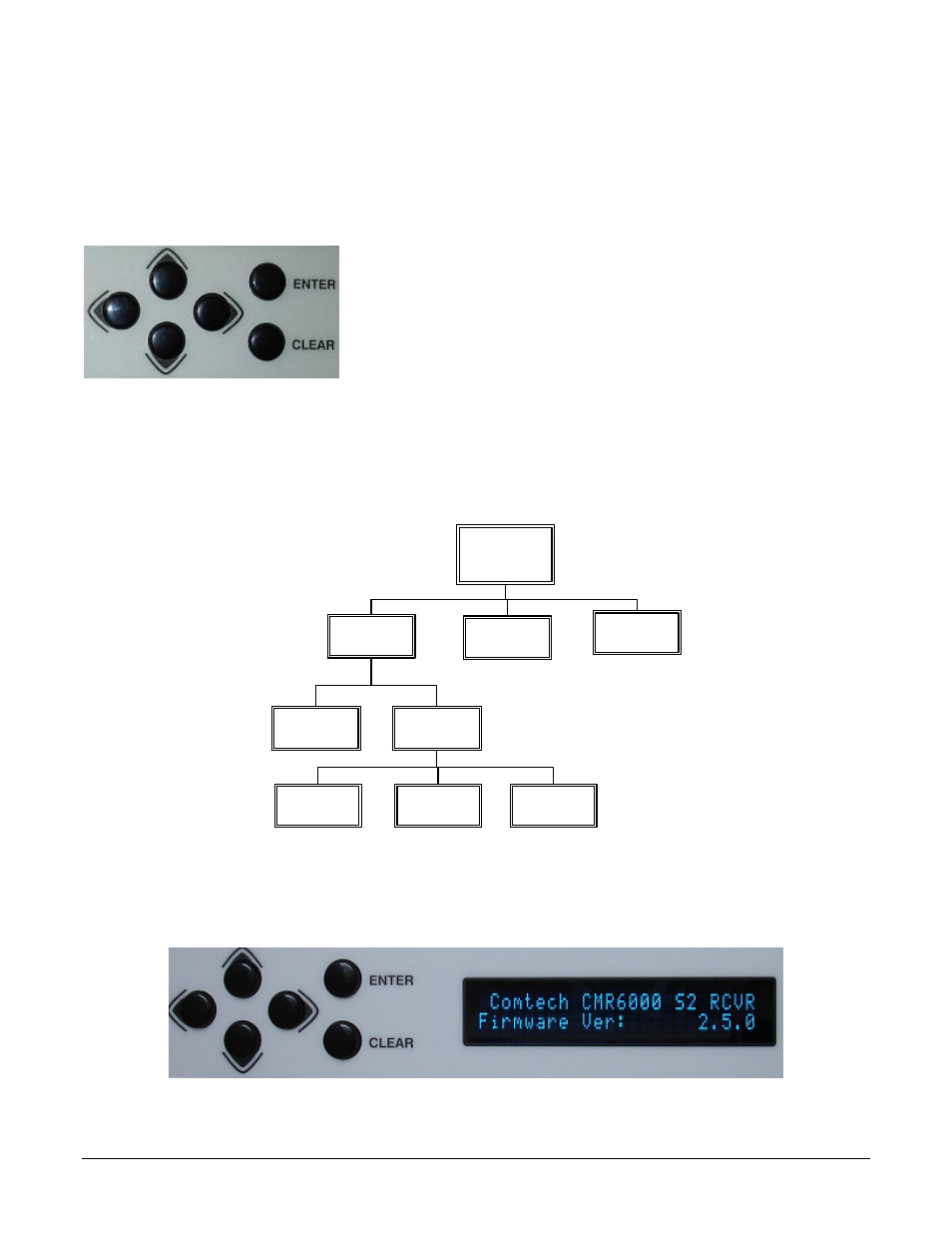

4.3.2 Keypad
Use the keypad to navigate and set the menu options on the LED display.
• Left / Right arrow keys navigate menu options
• Up / Down arrow keys change menu item values
• Enter key selects menu option / changes
• Clear key rejects changes / goes back one menu option
4.3.3 LED Menu Display
The Menu for the Front Panel allows for easy navigation in setting up and configuring the basic
functionality of the CMR-6000 receiver.
Figure 4-4. CMR-6000 Menu Hierarchy
The top level displays the model number (CMR-6000) of the unit as well as the firmware version.
CMR-6000
Firmware
Version
Monitor
FAST Config
Ethernet Tuner
Backup Switch Primary
