Digicast Media Router S2 Receiver CMR-6000 Revision 1
Device Management via User Interfaces MN-CMR6000-IOM
4-31

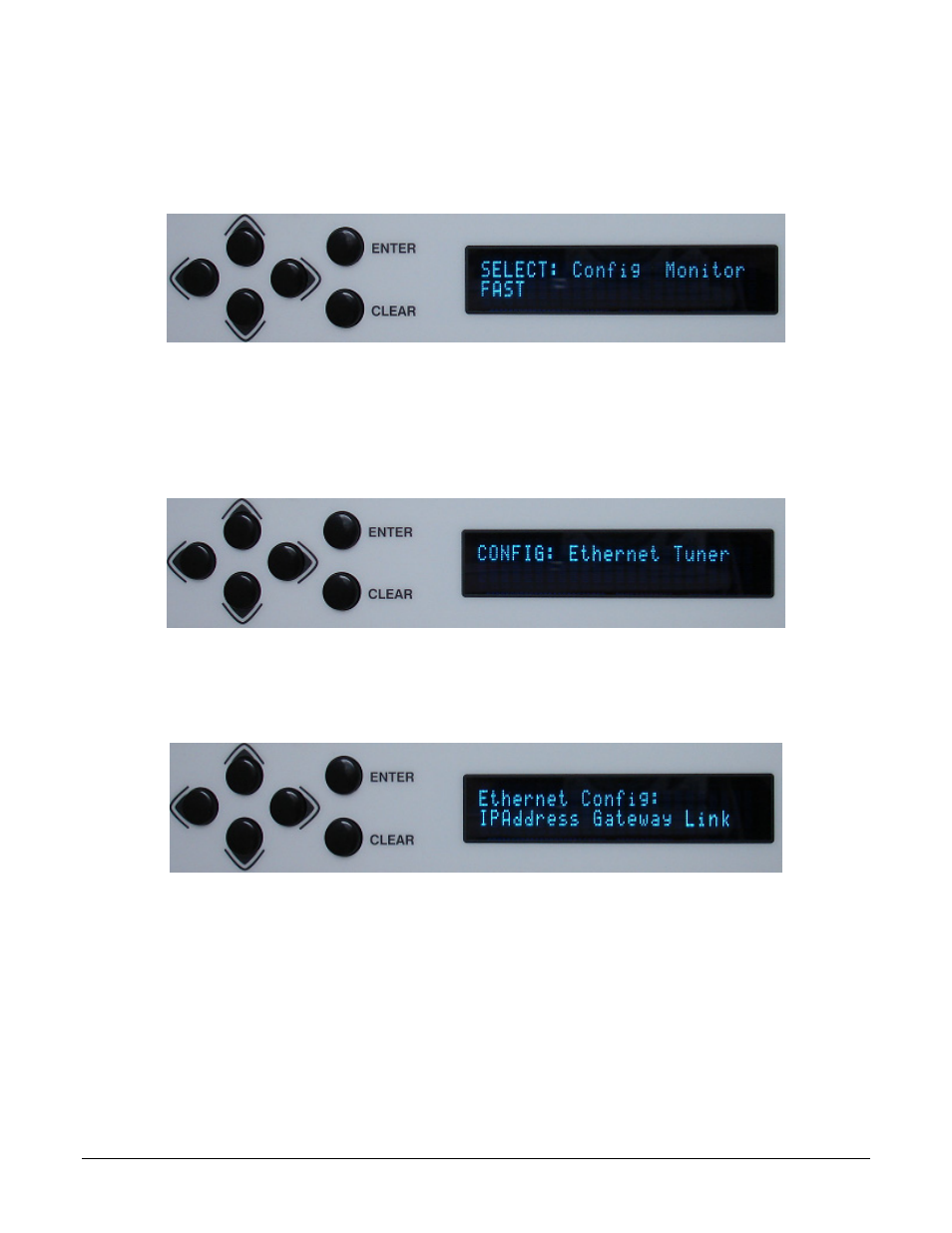

The Top Level Menu Options for the Front Panel Interface are:
Config – Allows initial configuration and setup of the Ethernet and Tuner settings.
Monitor – Displays lock status, power, Es/No, and Eb/No.
FAST – Display serial number of unit, current FAST code option(s), and upgrade option.
4.3.3.1 Config Menu Options
The Front Panel Config Menu enables the user to configure the network interface (Ethernet) and Tuner
settings.
4.3.3.1.1 Ethernet Config
Ethernet has the following configurable parameters:
IP Address
The IP Address assigned to the CMR-6000’s LAN interface. The IP Address is entered in dotted
decimal format, with the subnet mask in CIDR (Classless Inter-Domain Routing) format.
CIDR is a new addressing scheme for the Internet which allows for more efficient allocation of
IP addresses than the old Class A, B, and C address scheme.
Default Gateway
The Default Gateway assigned to the CMR-6000’s LAN interface. The Default Gateway is entered in
dotted decimal format and must be within the subnet of the IP Address assigned to the LAN interface.
The Default Gateway is the address of a local router to which all non-local subnet traffic will be directed.
