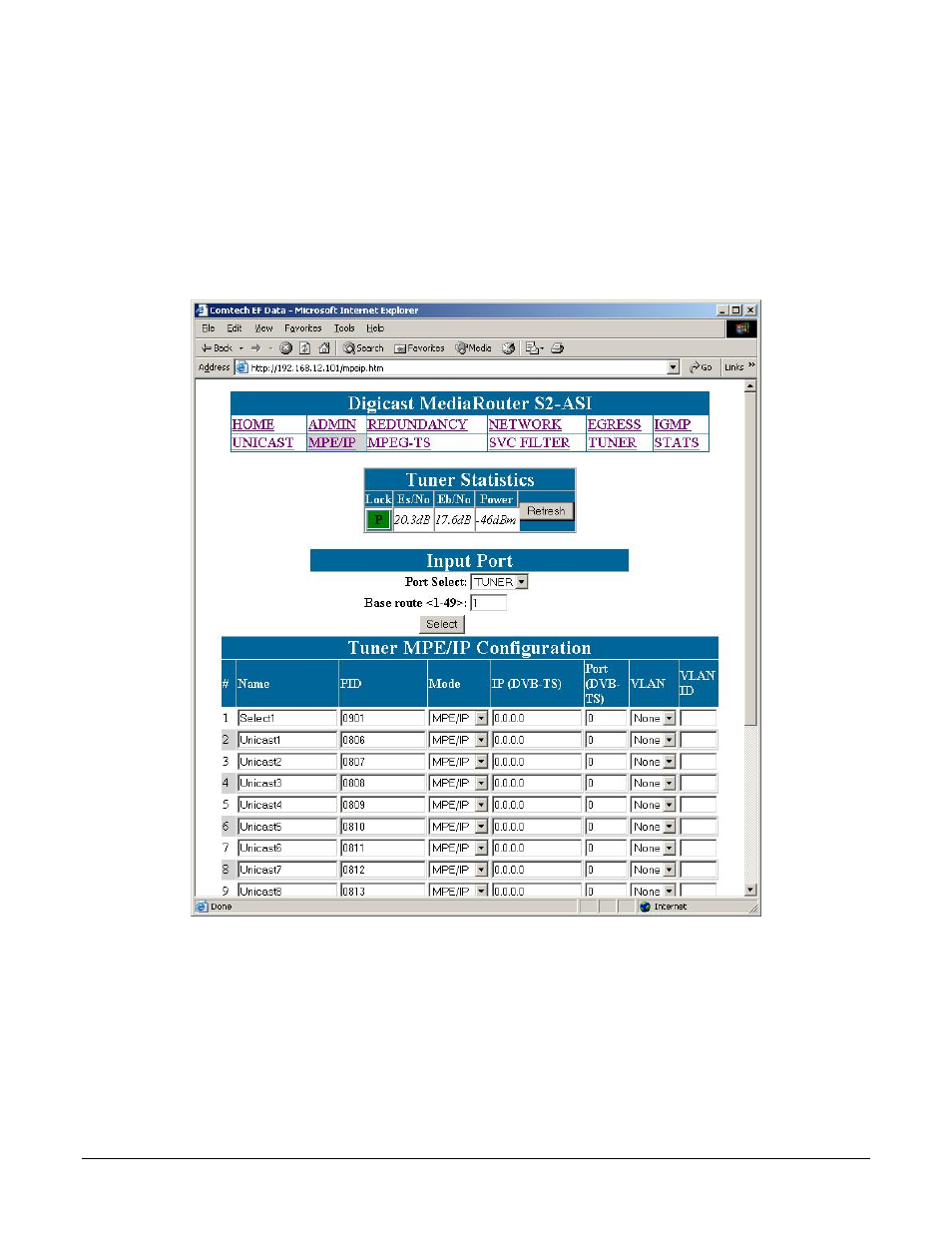

4.2.11 MPE/IP Configuration
A configured PID value, in hexadecimal, is required for MPE/IP data to be extracted from the transport
stream and sent to the CPU. Once a valid PID value is configured, and data is found on a transport stream,
the data is decapsulated and delivered to the Ethernet port.
From the pull-down list, select an input interface for which the PIDs will be configured for MPE/IP
(Tuner or ASI). A value of 0x1FFF is shown if disabled.
Name
User defined name (cannot contain spaces)
PID
A valid PID in hexadecimal format, ranging from 0x10 to 0x1FFE (0x1FFF disables the entry). The PID
value cannot be in use elsewhere on the receiver.
Mode
MPE/IP or DVB-TS
