Digicast Media Router S2 Receiver CMR-6000 Revision 1
Installation & Initial Configuration MN-CMR6000-IOM
2-4

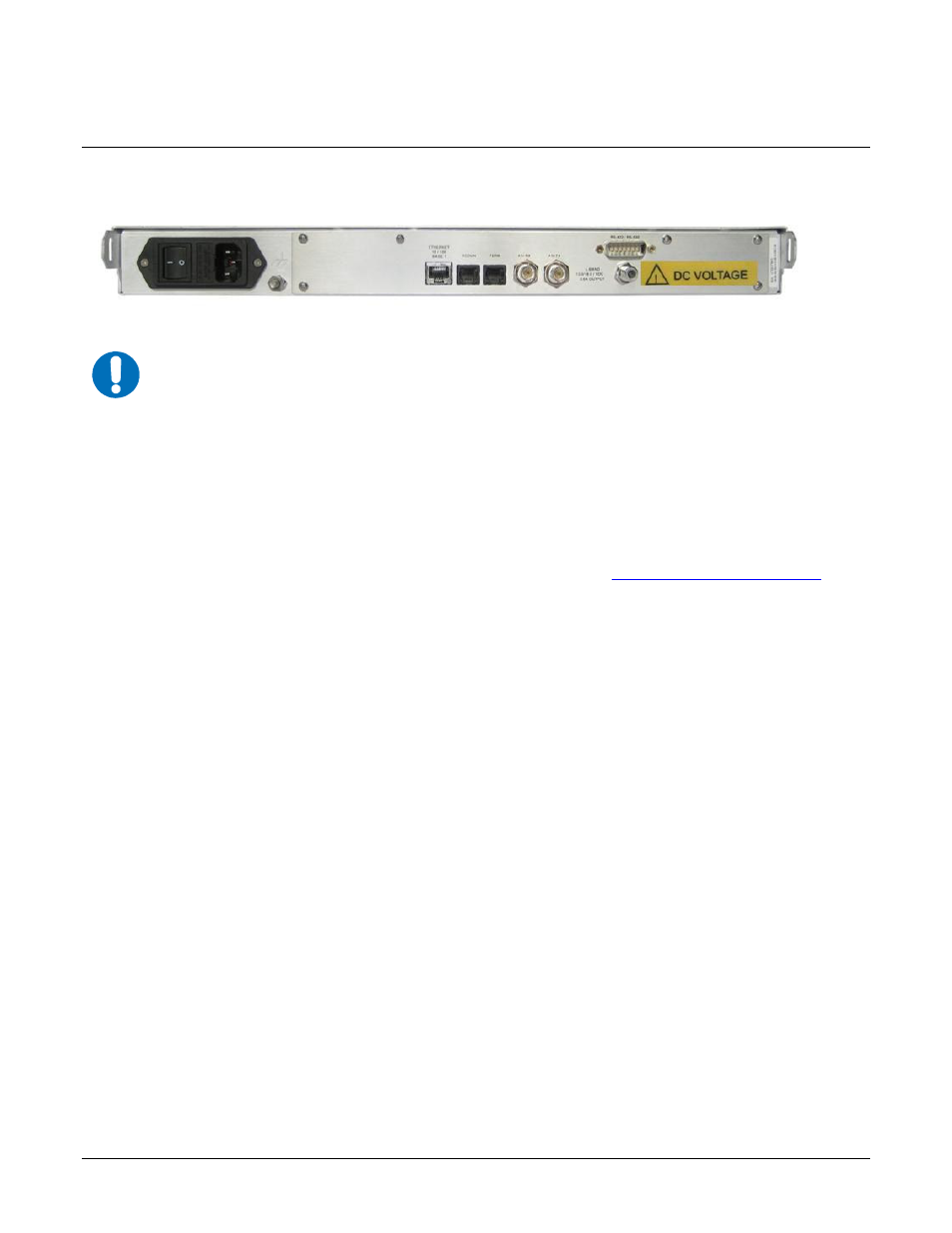

2.5 Connect External Cables
If the CMR-6000 is not going to power an LNB, then the LNB power should be set to output 0
VDC (no output), or insert a DC-Block inline between the L-Band interface and any external
device.
Should there be any question about the LNB, please contact the Comtech EF Data support group.
Descriptions of the interface connector pinouts are provided in
Chapter 3, Interface Pinouts .
IMPORTANT
Exercise caution when connecting the CMR-6000 LNB connection. The L-Band interface receives the L-Band
input, but also outputs 13 VDC or 18 VDC @ 600mA.
