4.3 Front Panel Interface

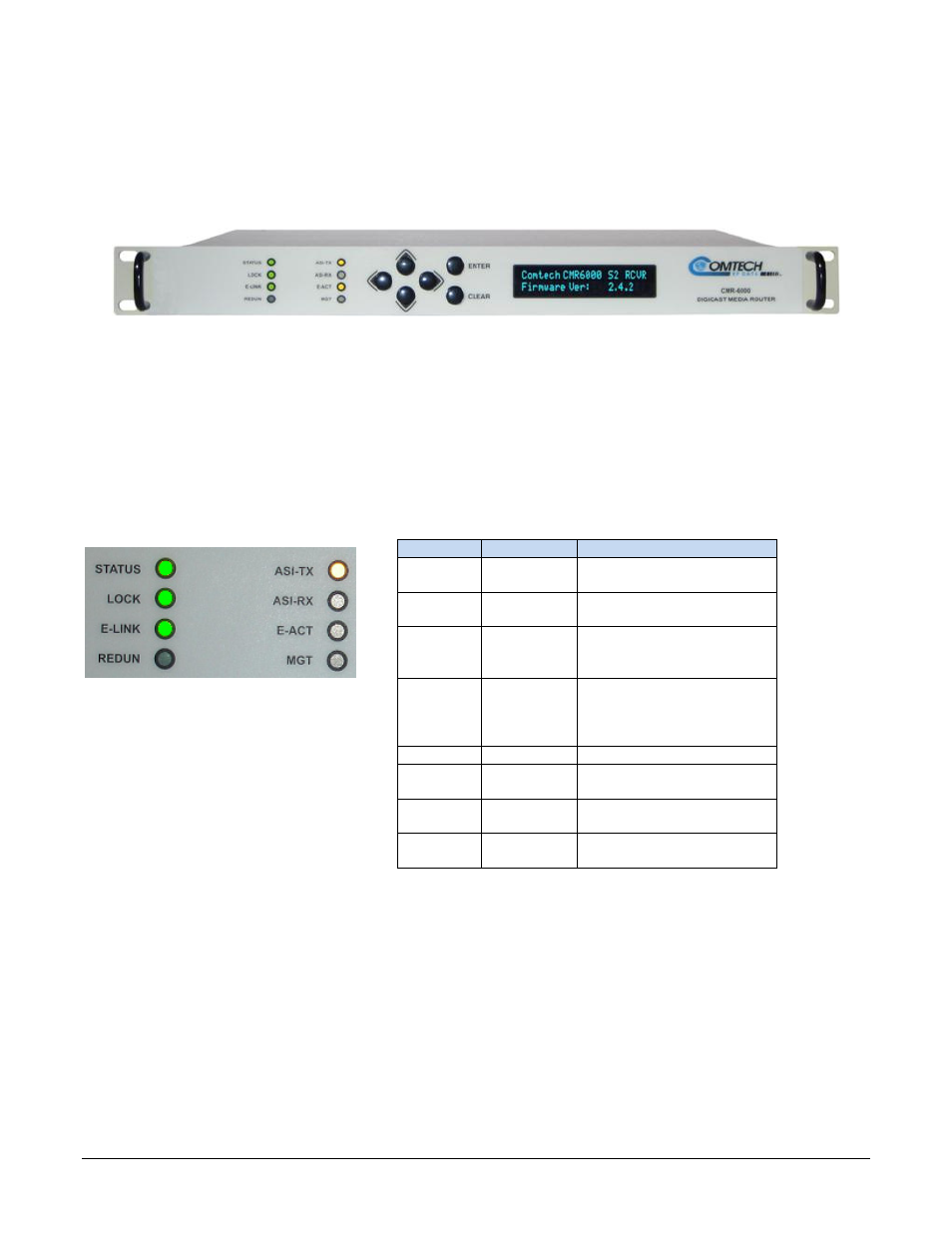

The Front Panel Interface provides the capability to perform basic setup and configuration of the CMR-
6000 receiver. The Front Panel consists of:
LED status indicators
Keypad for menu navigation
Vacuum Fluorescent Display (VFD) menu display
4.3.1 LED Status Lights
LED Color Description
STATUS Green/Red Red indicates error status,
green indicates status ok
LOCK Green Solid green indicates the
tuner is locked
E-LINK Green LED illuminates if the
Ethernet connection to the
Hub/Switch is operational
REDUN Green Redundancy indicator. Solid
green unit is redundant
online and flashing green is
redundant offline (backup)
ASI-TX Amber Solid when ASI is enabled
ASI-RX Amber Solid when ASI input is
connected
E-ACT Amber Flashes when there is
Ethernet activity
MGT Amber Solid when management
connection (web or Telnet)
