Chapter 3. INTERFACE PINOUTS
3.1 Pinout Overview
The rear panel interface (Figure 3-1) provides all necessary external connections between the
CMR-6000 and other equipment.

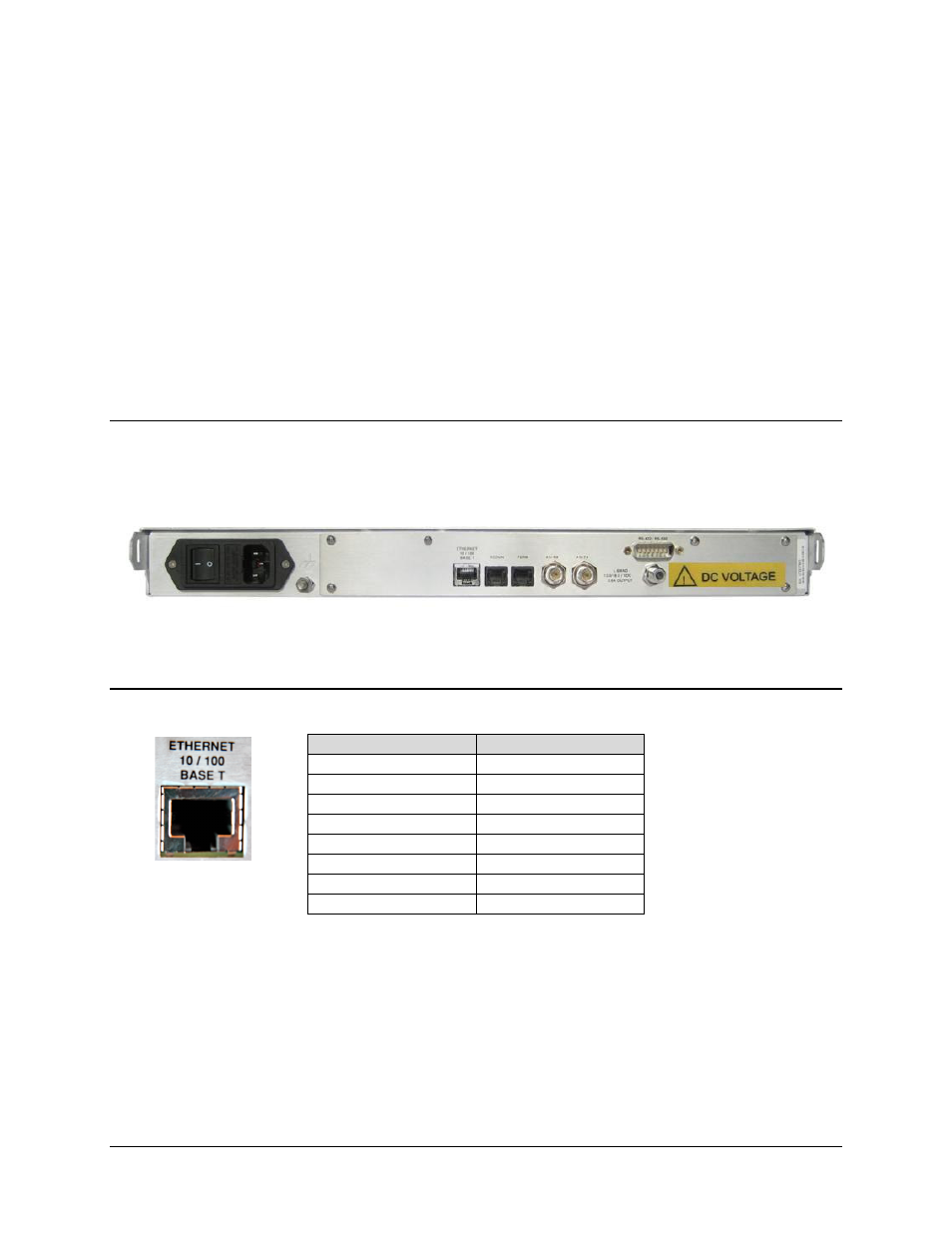

Figure 3-1. Digicast Media Router S2 Receiver – Rear Panel
3.2 RJ-45 Ethernet
Pin Definition
1 TXD+
2 TXD-
3 RXD+
4 N/C
5 N/C
6 RXD-
7 N/C
8 N/C
