MiniMAC Rack Management System
V2200 Dual Converter Screens
Rev. 0
8–3
8.1.1
Side A or B Status Tab

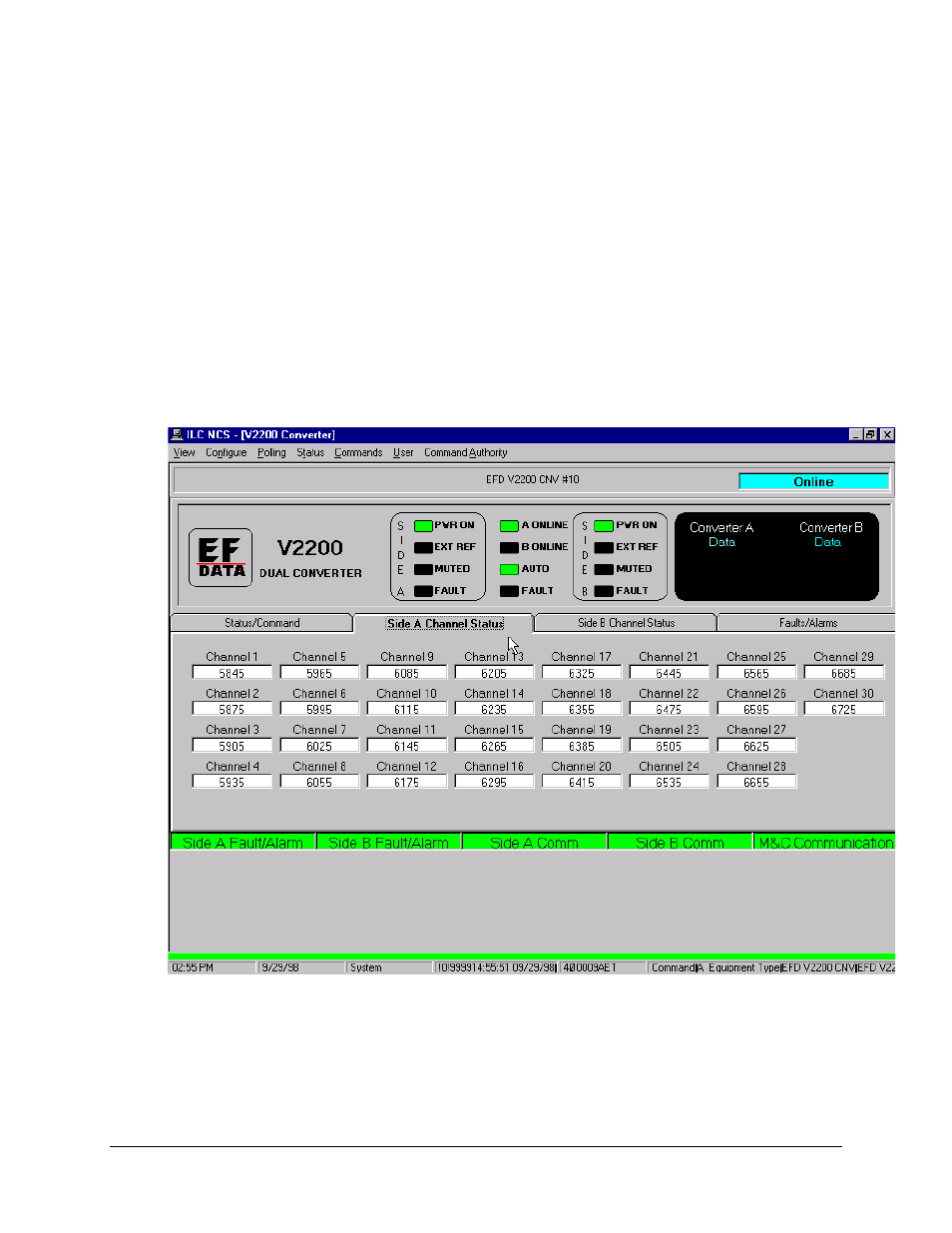

The Side A or B Channel Status Tab displays the programmed frequency of each channel
from 1 to 30. The Fault Status of the converter is reported by the Faults and Alarms along
the bottom are:
•
Green
Proper Operation, No Fault
•
Red
A Fault is reported
•
Yellow
An Alarm is reported
•
Orange
A Communication Alarm is reported.
