Status/command tab – Comtech EF Data MiniMAC Operation ManualOperation Manual Operation Manual User Manual
Page 74
V2200 Dual Converter Screens
MiniMAC Rack Management System
8–2
Rev. 0
8.1 Status/Command
Tab

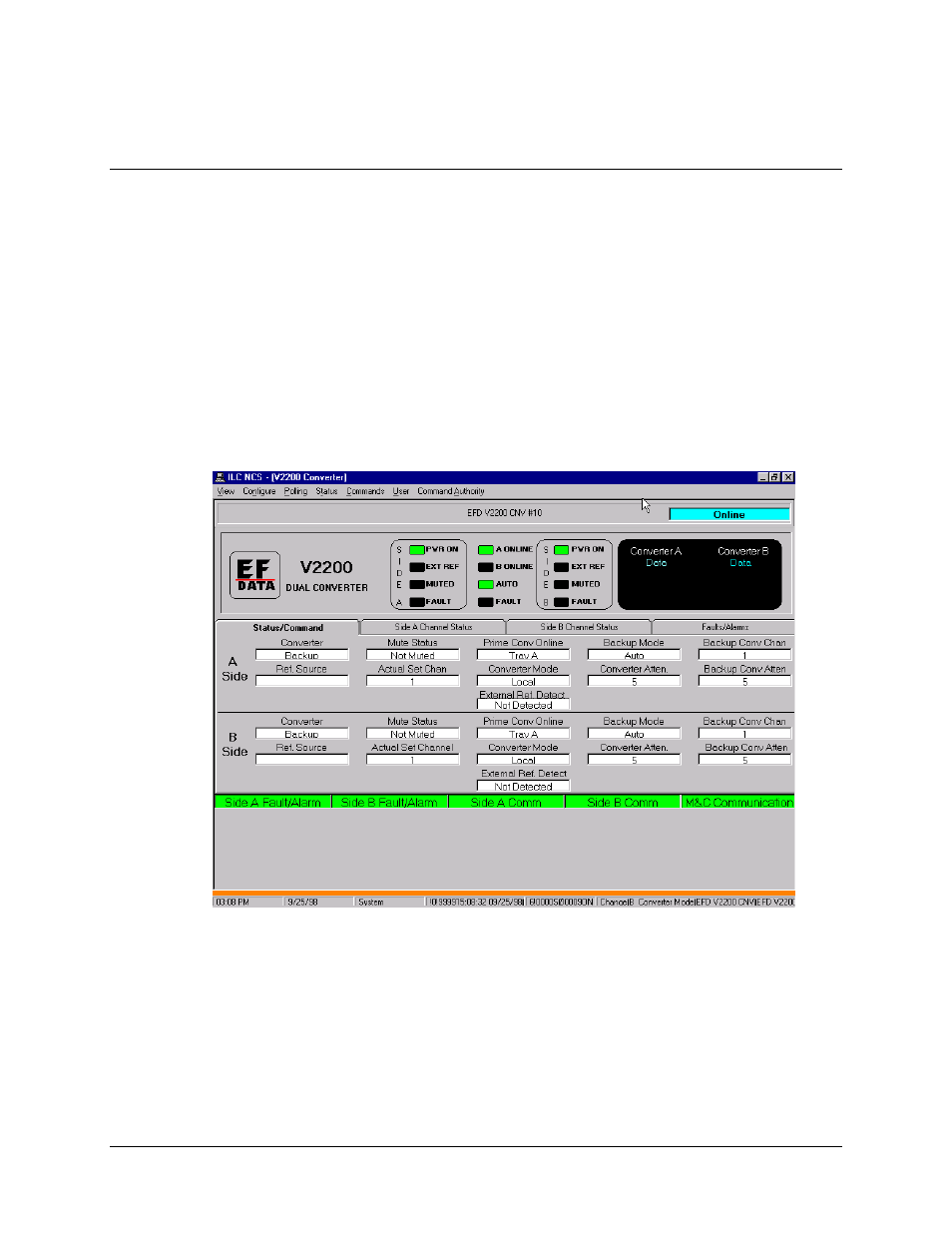

The V2200 DUAL CONVERTER CONTROL Screen displays fully-functionally LED’s
that represent the status of specific devices. The Status/Command tab displays the current
configuration parameters of the A side converter on the top and the B side converter on
the bottom. The information reported for the A and B-sides are:
•
Prime or Backup Mode
•
Actual Set Channel
•
Mute Status
•
Converter Mode
•
Prime Converter Online
•
Converter Atten
•
Backup Converter Channel
•
Backup Converter Channel
•
Reference Source
•
Backup Converter Atten
