MiniMAC Rack Management System

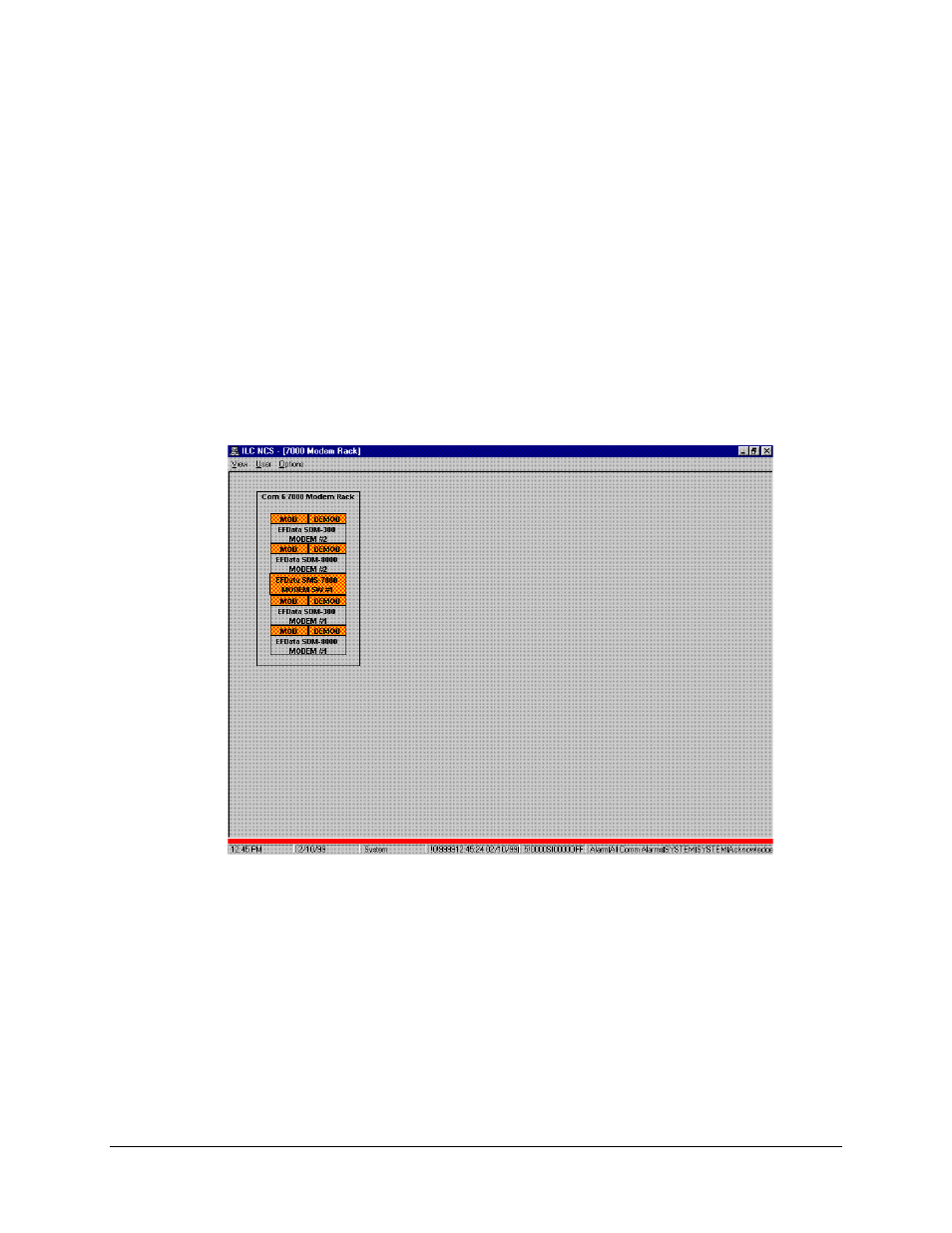

Overview Screen
Rev. 0
1–7
1.2.4
SMS-7000 Switch Rack
This group or rack is connected on COMM Port 6.
The fourth group or rack has an SMS-7000 Switch with two 1:1 Redundant Systems
installed.
•
The first 1:1 system has SDM-300 Satellite Modems
•
The second 1:1 system has SDM-8000 Satellite Modems.
The prime SDM-300 identified, as Modem #1 is the ASYNC link to the Remote Site
identified as group or rack 9.
