Other Devices MiniMAC Rack Management System
9–30 Rev. 0
9.4.2 Device Setup

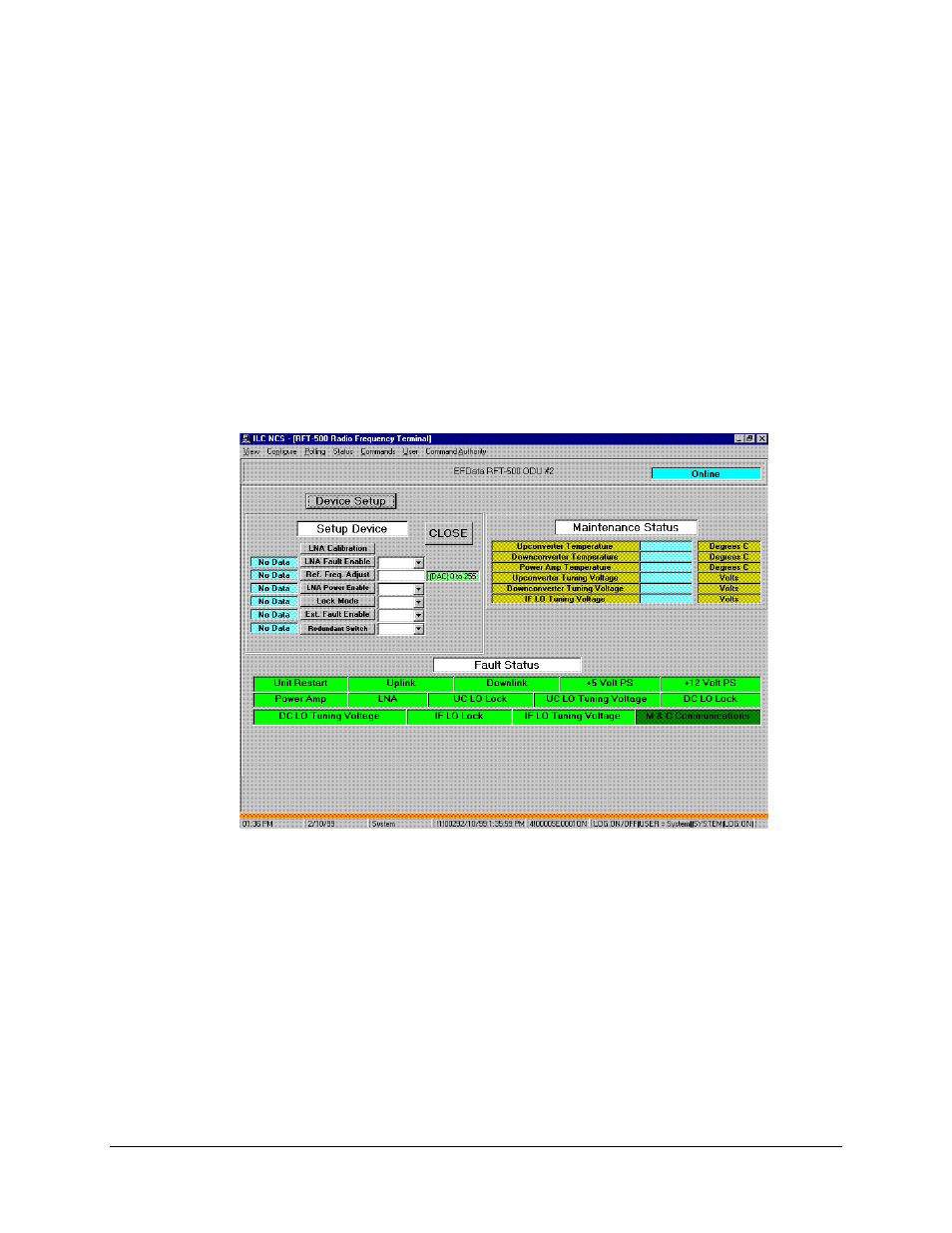

To view the device setup screen click on the Device Setup button. From the Device Setup
screen the user can:
•
Calibrate LNA
•
Enable LNA Fault
•
Set Reference Frequency Adjust Value
•
Turn LNA Power On/Off
•
Enable External Fault Line
•
Select Switching Mode
When setup parameters have been completed, click on the Close button to return the
Main screen. The Maintenance Status on the right side is viewable from either screen.
The monitor status information is reported as follows:
•
Up Converter Temperature
•
Down Converter Temperature
•
Power Amp Temperature
•
Up Converter Tuning Voltage
•
Down Converter Tuning Voltage
•
IFLO Tuning Voltage
Fault status is displayed at the bottom of the screen.
