Overview Screen
MiniMAC Rack Management System
1–4
Rev. 0
1.2
Viewing the Rack Groups
This group or rack is connected to COMM Port 3.
The user can view any rack or group of Adaptive Broadband equipment from the MAIN
Screen by clicking on the desired rack or group.
1.2.1
V2200 Dual Converter Rack

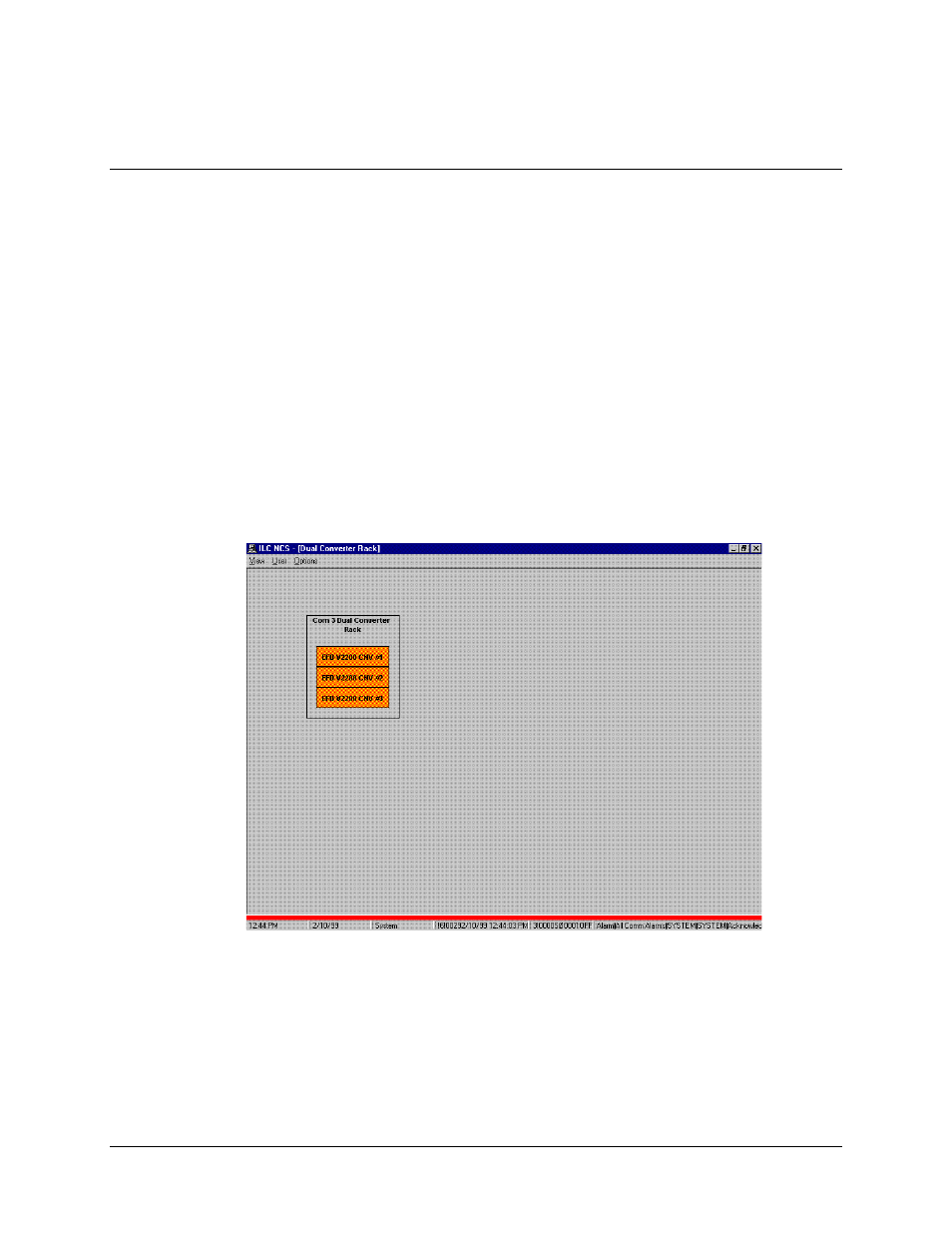

This MiniMAC System has V2200 Dual Converters in the rack labeled: DUAL
CONVERTER RACK.
Each group will have the same available drop-down menu selections:
•
VIEW – Allows the user to view previous screens.
•
USER – Allows logging On/Off
•
OPTIONS – Edit Options
