Converter Status and Commands Screens

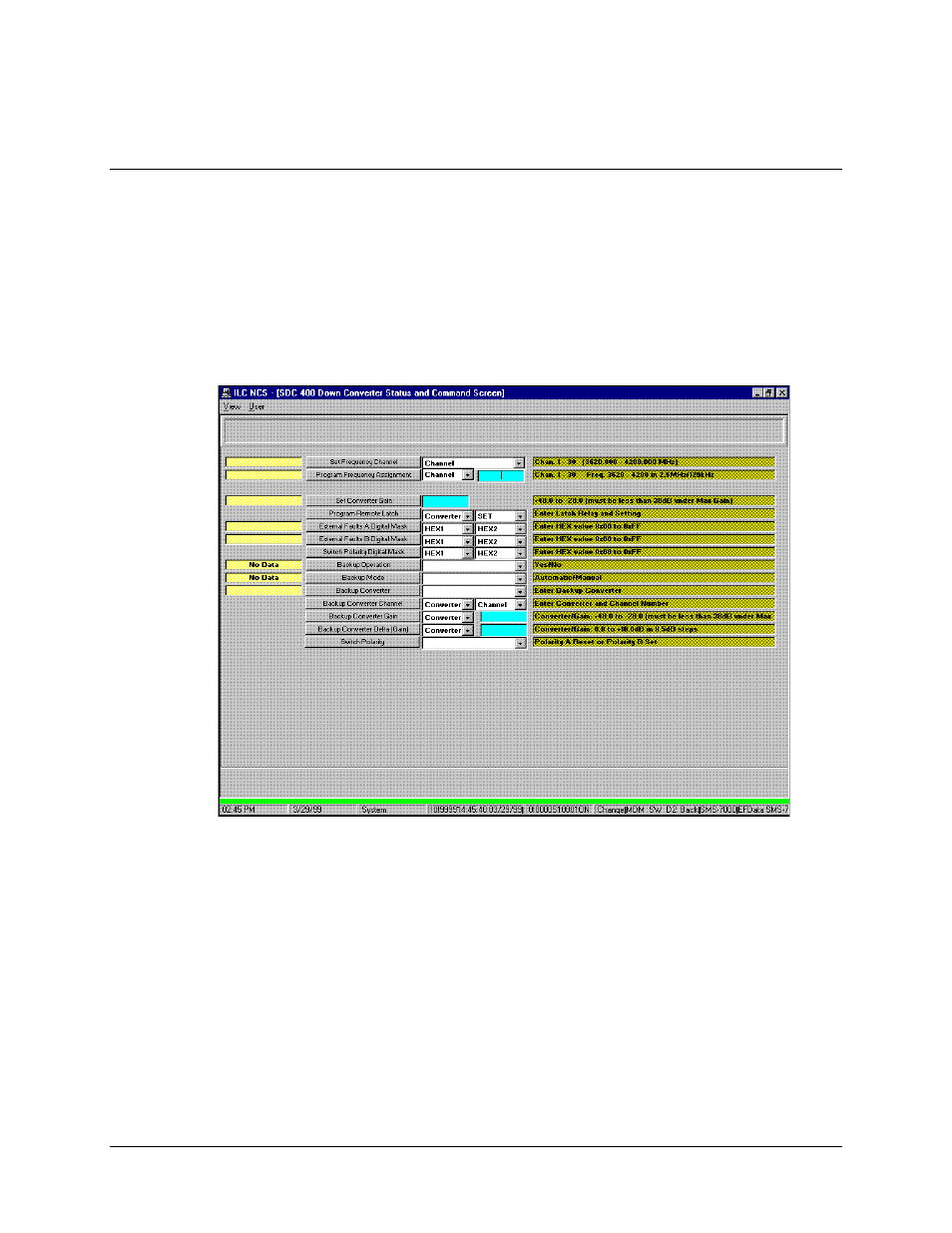

To access the CONVERTER STATUS and COMMAND screen, select Commands and
click on Up Converter from the Converter Control Screen.

This section describes the CONVERTER STATUS AND COMMAND screen, which is
used to view and set the converter configuration parameters. The parameters available on
the screen will vary according to the type of converter installed.

Note: The converter’s front panel displays digital masking values in binary format.
Remote commands convert binary values into hexadecimal format. MiniMAC displays
these values in hexadecimal, with the “HEX” characters preceding the number.
