CRS-400 1:8 Redundancy Switch Revision 0
Installation and Setup MN/CRS400.IOM
24
2.8 RMI M
ODULES
The following paragraphs describe settings for any of the individual RMI modules that
require jumper or other installation settings on the module.
2.8.1 HSSI M ODULE
Figure 2-5 shows the RMI module, Table 2-8 and Table 2-9 describe the jumper settings
on the module.

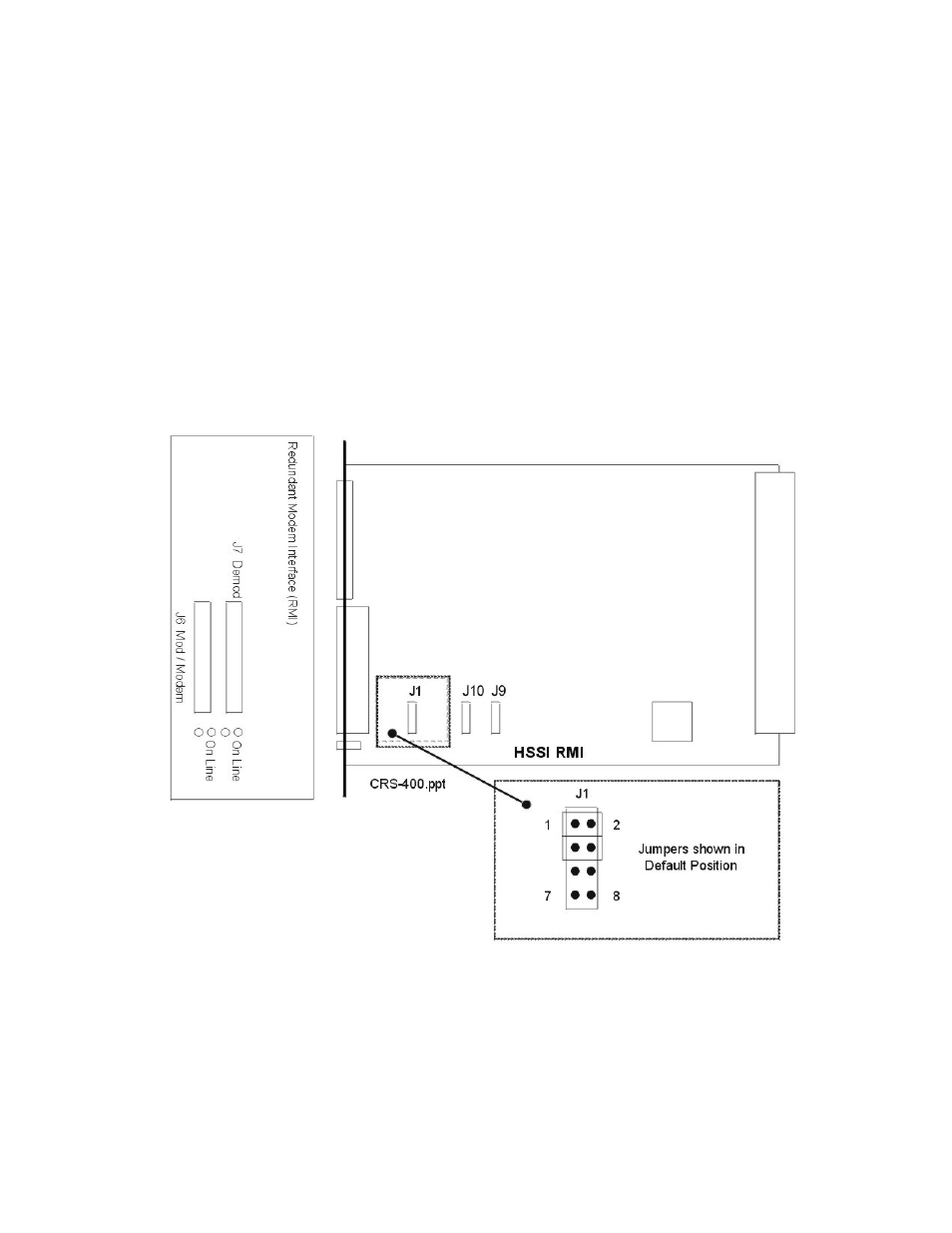

Figure 2-5 HSSI RMI Module
