MN-RCS11 – Revision 9 A–1
Appendix A. RCS11 DIP Switch
Configuration
The RCS11 has four internal DIP switches that are accessible only by removing the top cover. These DIP
switches S2, S3, S4 & S5 are used to configure Interface options, data rates and remote baud rates. An
upgrade or change from an existing interface or configuration to another may require a change to one or
more of the DIP switch settings. If you are having trouble with DIP switch settings, contact Radyne
Customer Service for any additional help.
Figure A-1 Illustrates the DIP switch positions for the various Radyne product types.
Figure A-2 Illustrates the unit Addressing for and Baud Rate switch positions for remote M&C.

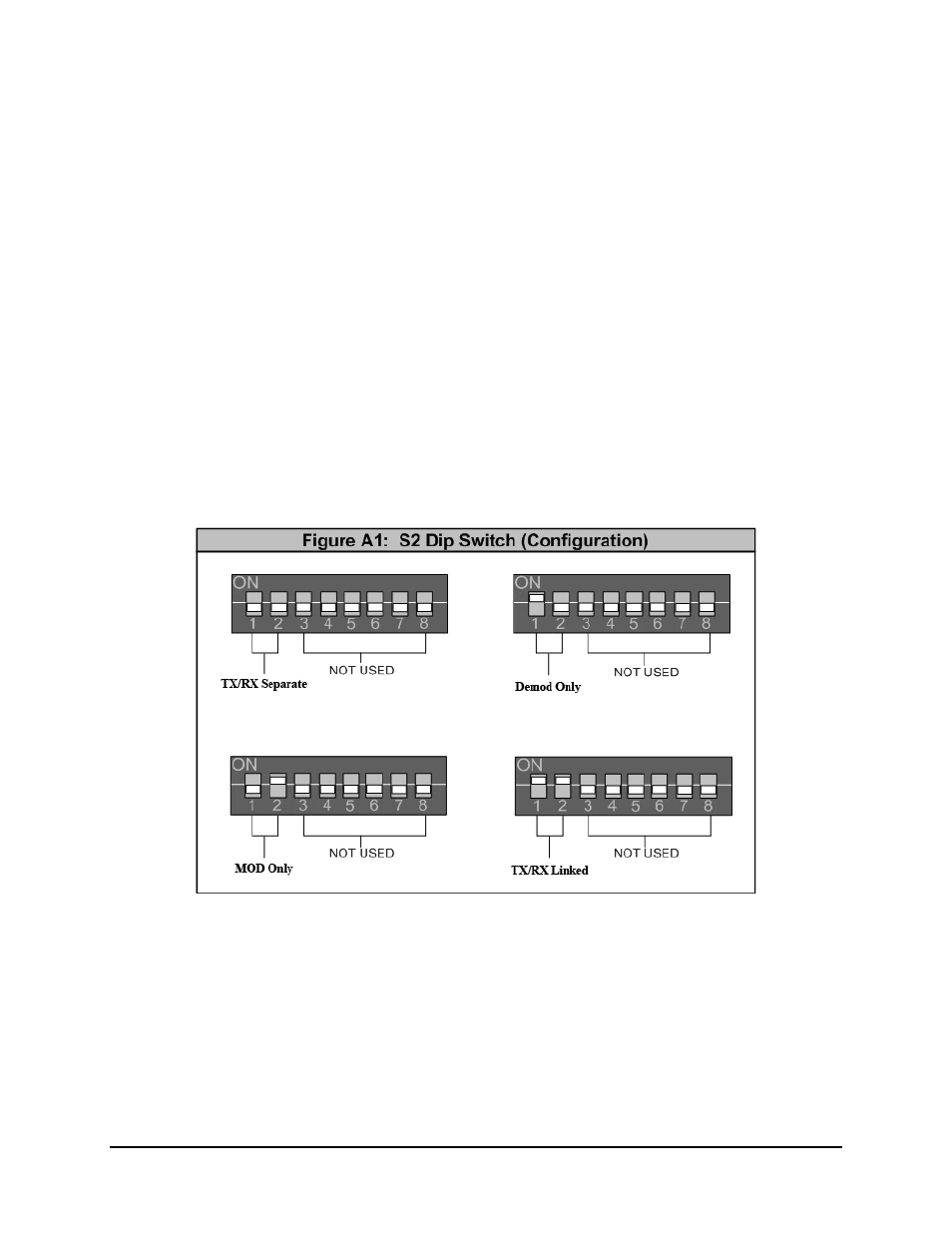

Figure A-1. DIP Switch Positions for the Different Radyne Devices
