RCS11 1:1 Redundancy Switch Installation
MN-RCS11 – Revision 9 4–8
4.6.5 DMD20 HSSI

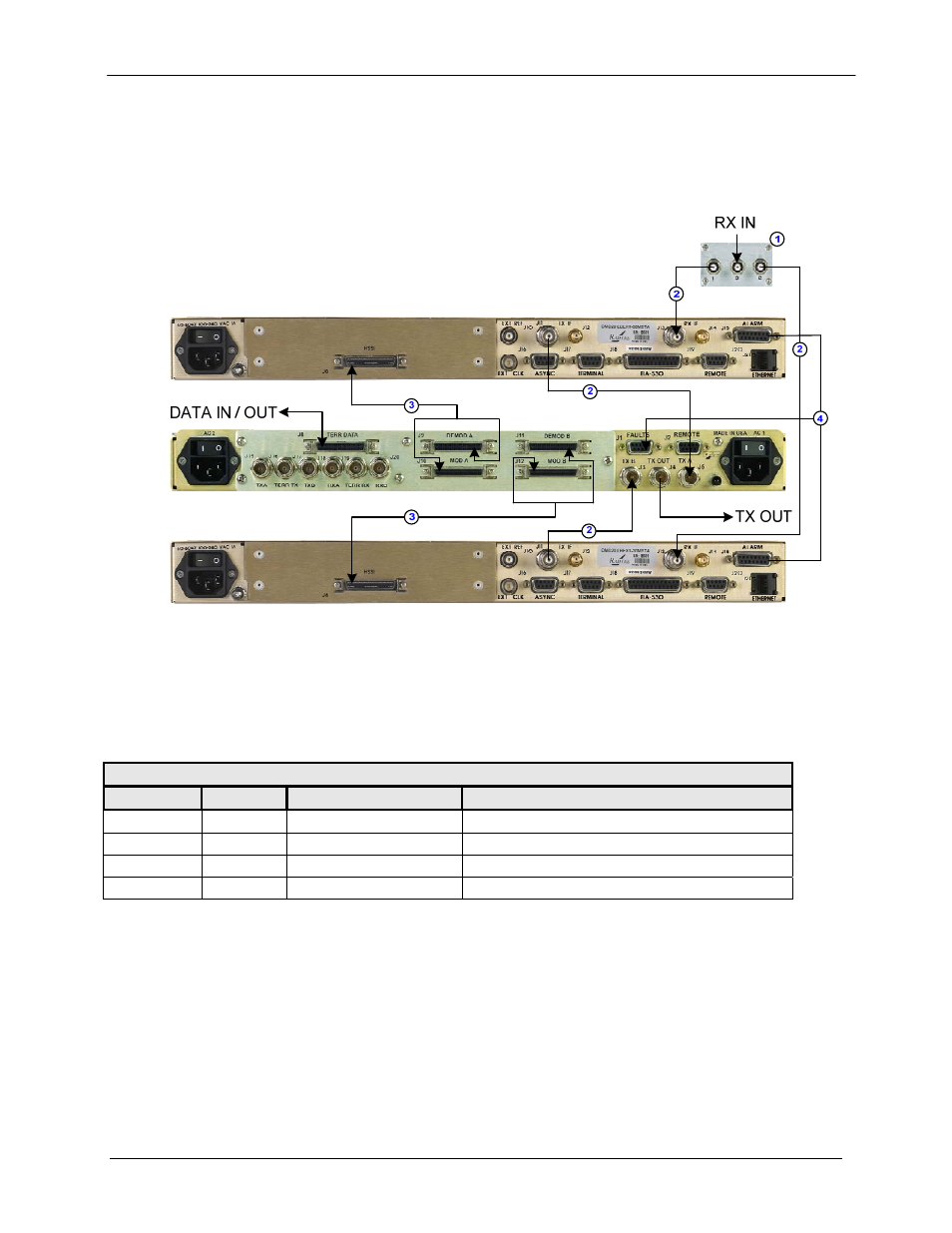

Figure 4-5 illustrates a 1:1 system using a RCS11 with the HSSI / ASI Interface connected to
DMD20 Modems with HSSI Interfaces. Table 4-5 describes the connection hardware required.
Figure 4-5. RCS11 with HSSI/ASI Interface Connected to DMD20
Modems with HSSI Interfaces
Table 4-5. Connection Hardware
Item No. Quantity Part Number Discription
1 1 RF/ZSC-2-175 70/140 IF Splitter
2 4 CA/3598-36 3’ BNC to BNC 75 Ohm Coaxial Cable
3 2 CA/4181 HSSI Data Cable
4 1 CA/3865 Alarm Fault Cable
