MN-RCS11 – Revision 9 5–1
Chapter 5. Connector Pinouts
5.1 RCS11 Connections
The RCS11 supports various rear panel hardware configurations. The following information
describes the rear panel connections. Any connection interfacing to the RCS11 must be the
appropriate mating connector.
5.2 AC Power Input/Switch
The AC Power Entry Modules (Figure 5-1) are located on the left and right sides of the unit.
Primary power applied to the two ports with the supplied power cables is 10 – 240 VAC, 50 – 60
Hz. Integrated into each of the power entry module is the Power On/Off Rocker Switch. Power
consumption for the unit is 1A. The Power Cord/Connector assembly is a supplied item.
A chassis ground connection (size 10-32 thread) stud, is located to the lower left of the AC Power
Cord.
5.3 DC Power Input/Switch
The Optional DC Power Input and Switch (Figure 5-1) is available for all RCS11 products. The
unit may be powered from a 36 – 75 VDC source with a maximum unit power consumption of 3A.
Figure 5-1 Illustrates the DC Power Input and Switch. Refer to Table 5-1 for pinouts.

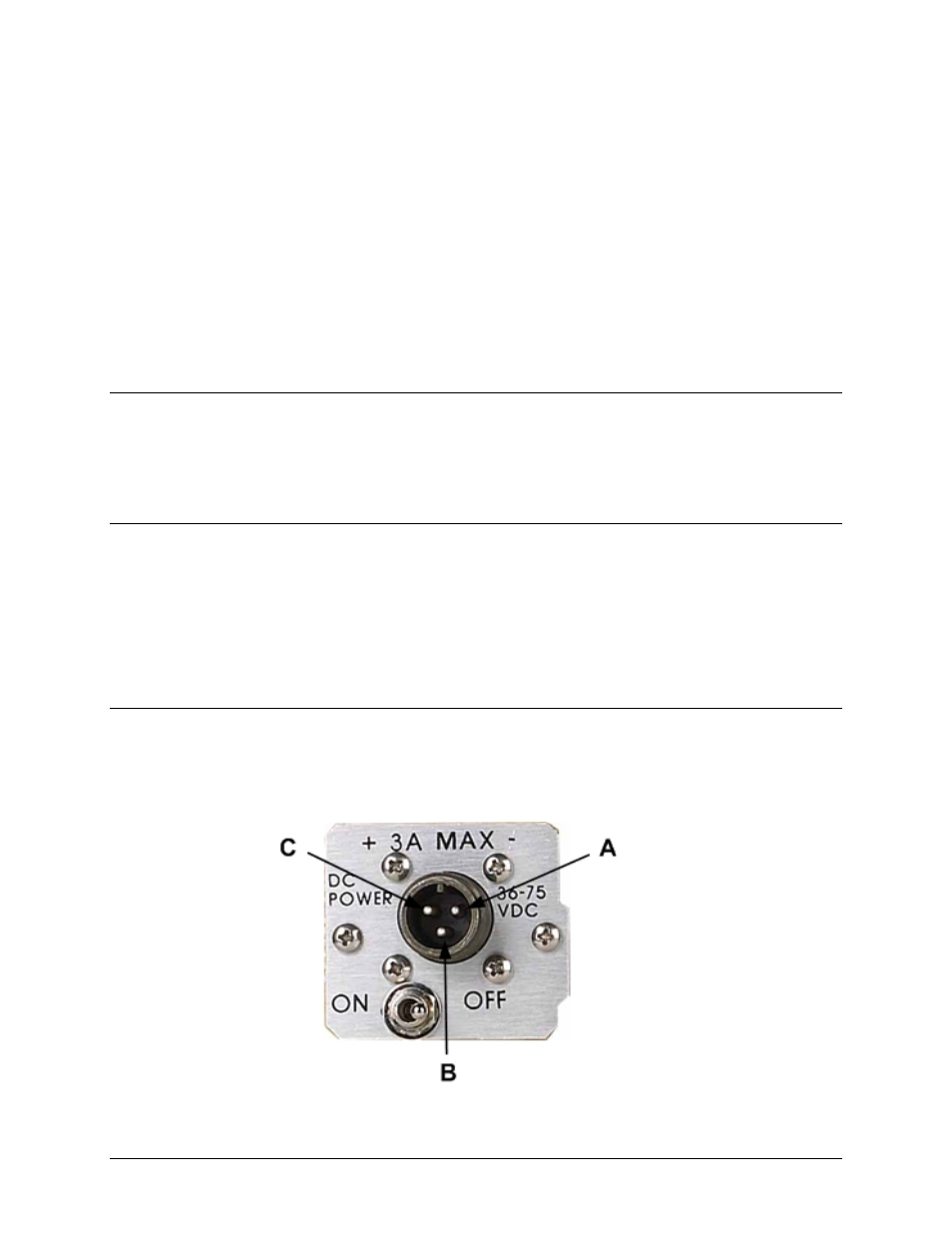

Figure 5-1. DC Power Input and Switch
